TANDEM COMPACT MASTER CYLINDER & L/H PROP VALVE,MOPAR 4-BOLT,1 1/8",BLACK

TANDEM COMPACT MASTER CYLINDER & L/H PROP VALVE,MOPAR 4-BOLT,1 1/8",BLACK

WIL 261-16798-BK

$506.27
$506.27

Yes, we have this item in stock and ready to ship immediately!
View full details

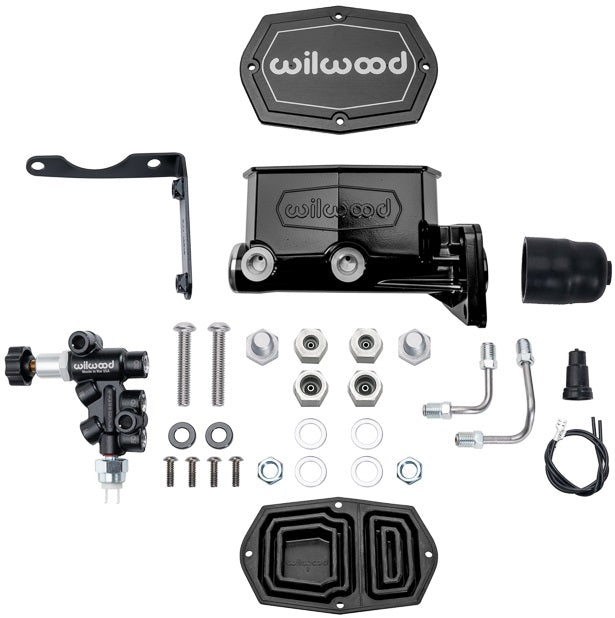

Brand New Wilwood Compact Tandem Master Cylinder with Black Finish, Bracket, Valve, and 1-1/8" Bore Size. Compatible With Mopar 4 Bolt Pattern (Part #261-16798-BK).

Wilwood now makes a performance master cylinder with a flange specifically for Mopar unique four bolt patterns. The rectangular mounting flange of our Mopar compact tandem master cylinder matches the A-Body, B-body and the E-body firewall mounts in the 1960s and 70s. Chrome powder coat finish to complement any engine bay. These kits include a combination valve with a hydraulic brake light switch, adjustable proportioning valve, bracket, and plumbing.

NOTE: High temperature brake fluid recommended for racing applications.

Fits:
  • Mopar:
    • 1960-1970s A-Body with 4 Bolt Firewall Mount
    • 1960-1970s B-Body with 4 Bolt Firewall Mount
    • 1960-1970s E-Body with 4 Bolt Firewall Mount
Specs:
  • Bore Size: 1-1/8"
  • Area (In²): 0.97
  • Stroke: 1.10
  • Outlets: 2
  • Material: Aluminum
  • Finish: Black
  • Res Type: Integral
  • Res Size (Oz): 7.8 / 4.7
  • Res Size(Cu In): 14 / 8.5

You can view and download the assembly/instruction booklet here.
