TANDEM COMPACT MASTER CYLINDER & L/H PROPORTIONING VALVE,MOPAR 4-BOLT,1",CHROME

TANDEM COMPACT MASTER CYLINDER & L/H PROPORTIONING VALVE,MOPAR 4-BOLT,1",CHROME

WIL 261-16797-P

$506.27
$506.27

Yes, we have this item in stock and ready to ship immediately!
View full details

Brand New Wilwood Compact Tandem Master Cylinder with Chrome Finish, Bracket, Valve, and 1" Bore Size. Compatible With Mopar 4 Bolt Pattern (Part #261-16797-P).

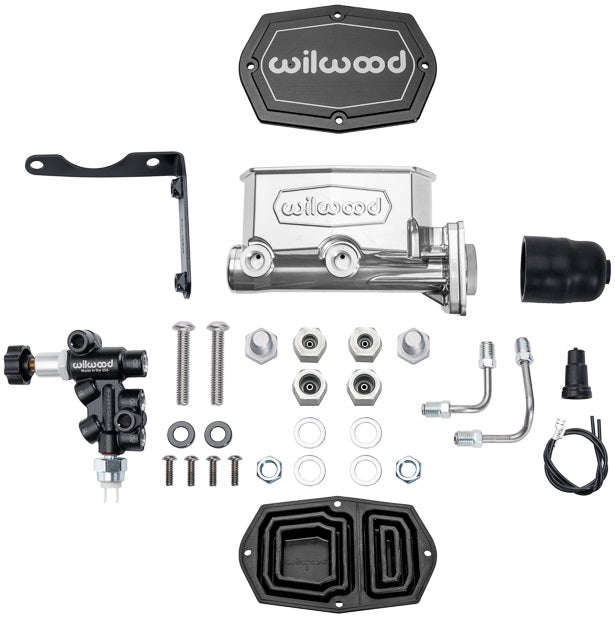

Wilwood now makes a performance master cylinder with a flange specifically for Mopar unique four bolt patterns. The rectangular mounting flange of our Mopar compact tandem master cylinder matches the A-Body, B-body and the E-body firewall mounts in the 1960s and 70s. Chrome powder coat finish to complement any engine bay. These kits include a combination valve with a hydraulic brake light switch, adjustable proportioning valve, bracket, and plumbing.

NOTE: High temperature brake fluid recommended for racing applications.

Fits:
  • Mopar:
    • 1960-1970s A-Body with 4 Bolt Firewall Mount
    • 1960-1970s B-Body with 4 Bolt Firewall Mount
    • 1960-1970s E-Body with 4 Bolt Firewall Mount
Specs:
  • Bore Size: 1"
  • Area (In²): 0.78
  • Stroke: 1.10
  • Outlets: 2
  • Material: Aluminum
  • Finish: Chrome
  • Res Type: Integral
  • Res Size (Oz): 7.8 / 4.7
  • Res Size(Cu In): 14 / 8.5

You can view and download the assembly/instruction booklet here.
