TANDEM COMPACT MASTER CYLINDER & PROPORTIONING VALVE,15/16",BLACK

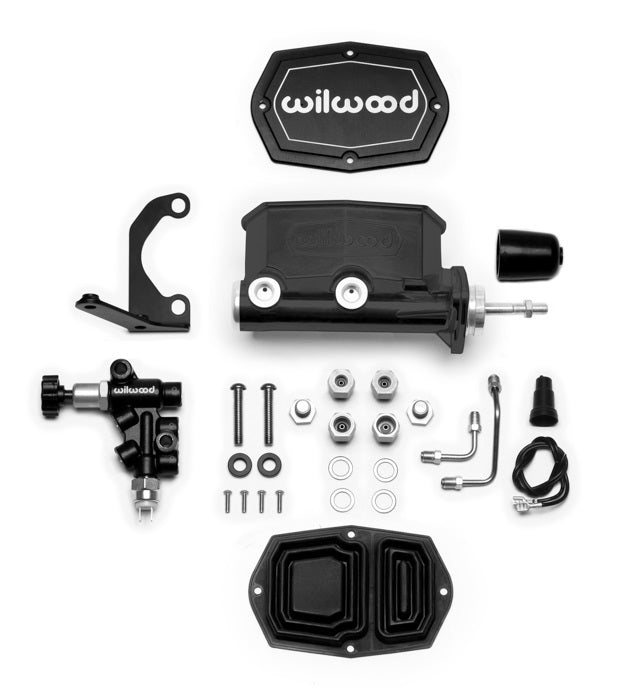

Brand New Wilwood  Black E-Coated 15/16" Bore Aluminum Compact Tandem Master Cylinder with Pushrod, Combination Proportioning Valve, Left-Hand Bracket, & Mounting Hardware (Part #261-14962-BK).

Wilwood has packaged the new Compact Tandem Chamber Master Cylinder (w/ pushrod) with the Combination Proportioning Valve, L/H mounting bracket, fluid tubes and mounting hardware in a kit. Tandem Master Cylinder represents the latest in refinements in brake pressure actuation and fluid control in a compact package with only 6.55" from mounting flange to end. The slotted flange mounting makes it a simple bolt on for many OE mounts including the popular Chrysler, Corvette, GM, and Ford Mustang bolt patterns and is compatible with manual or power brake system applications. The combination proportioning valve substantially simplifies wiring and brake proportioning adjustments on vehicles with custom brake systems.

The combination block maintains full isolation between front and rear fluid circuits and is specifically designed to accompany the Tandem Chamber Master Cylinder. The combo valve and left-hand side bracket are black E-coated for a performance look and long lasting durability. Stainless steel fluid tubes are precision bent with preinstalled plated steel tube nuts for a simple bolt-on installation between the Combination Proportioning Valve and the Wilwood Tandem Master Cylinder. Stainless steel button head fasteners thread into the bracket for a simple installation and years of durable, rust-free performance. Simply connect the fluid lines, bleed the system, and you're finished.

Fits:

• Mid 1960s-Present Domestic Cars & Trucks with 3.22” to 3.40” Mount Flanges

Note:

• High temperature brake fluid recommended for racing applications.

Includes:

• Compact Tandem Chamber Master Cylinder
• Combination Proportioning Valve
• Left-Hand Mounting Bracket
• Fluid Tubes
• Pushrod
• Mounting Hardware

Specs:

• Bore Size: 15/16"
• Area (in²): 0.690
• Stroke: 1.10
• Type: Tandem Outlet
• Outlets: 2
• Material: Aluminum
• Finish: Black E-Coat
• Res Type: Integral
• Res Size (oz): 7.8 / 4.7
• Res Size(cu in): 14.0 / 8.5
• Overall Length(in): 10.93"
• Flange to End Length (in): 6.55"
• Outlet Size 1 (in): 1/2-20
• Outlet Fit 1 (in): 3/8-24 IF or 1/2-20 IF
• Outlet Size 2 (in): 1/2-20
• Outlet Fit 2 (in): 3/8-24 IF or 9/16-18 IF

You can view and download the assembly instruction booklet here.
