TANDEM MC & PROPORTIONING VALVE SET,64-73 MUSTANG,15/16"

Brand New Wilwood Aluminum Tandem Chamber Master Cylinder & Combination Proportioning Valve Set with Mounting Brackets & Lines (Part #261-14158).

Wilwood has packaged the popular Aluminum Tandem Chamber Master Cylinder with the Combination Proportioning Valve, mounting bracket, fluid tubes and mounting hardware in a kit. Wilwood’s Tandem Master Cylinder represents the latest in refinements in brake pressure actuation and fluid control. The slotted flange mounting and included rod assembly makes it a simple bolt on for Early Ford Mustang and fully is compatible with manual system applications. The combination proportioning valve substantially simplifies wiring and brake proportioning adjustments on vehicles with custom brake systems.

The combination block maintains full isolation between front and rear fluid circuits and is specifically designed to accompany the Tandem Chamber Master Cylinder. The combo valve and bracket are black E-coated for a performance look and long lasting durability. Stainless steel fluid tubes are precision bent with preinstalled plated steel tube nuts for a simple bolt-on installation between the Combination Proportioning Valve and the Wilwood Tandem Master Cylinder. Stainless steel button head fasteners thread into the bracket for a simple installation and years of durable, rust-free performance. Simply connect the fluid lines, bleed the system, and you’re finished.

Fits:

• Ford:
  • 1964-1973 Mustang with Manual Braking System

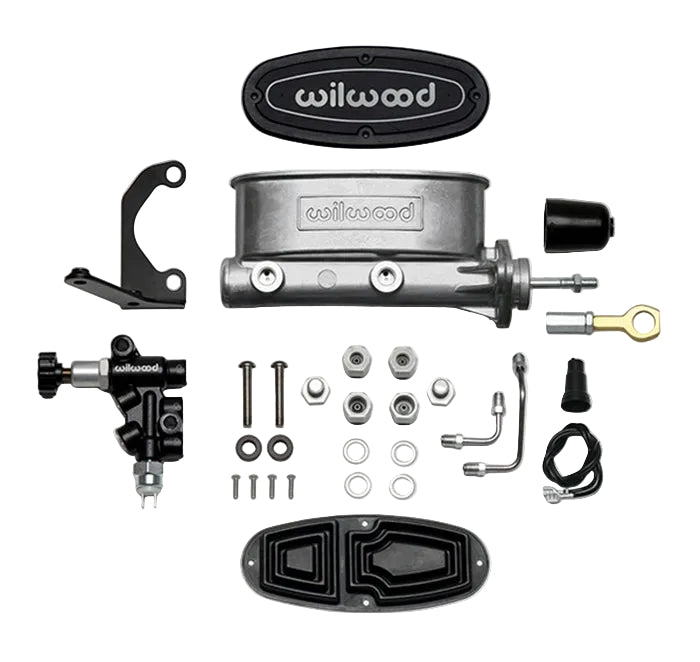

Kit Includes:

• Wilwood Master Cylinder & Proportioning Valve Set
  • Tandem Chamber Master Cylinder with 15/16" bore cylinder and pushrod

  • Combination Proportioning Valve

  • Stainless steel fluid tubes precision bent with preinstalled stainless tube nuts for a simple bolt-on installation
  • Mounting bracket e-coated to give years of durable, rust-free performance
  • Stainless Steel Button Head Bolts

Wilwood Aluminum Tandem Chamber Master Cylinder Details:

• Wilwood tandem chamber master cylinders represent the latest refinements in brake pressure actuation and fluid control. The exclusive Wilwood features incorporated in this innovative and unique new design make it the perfect choice for a wide range of custom manual brake applications.

• High-pressure die casting of a premium alloy produces a high-capacity body that is lightweight, looks great, and has the durability for competition. A black anodized, machined billet lid captures a pressure balanced bellows gasket with 100% sealing against moisture invasion or fluid leakage. The master cylinder is configured with full separation between the front and rear reservoir chambers and fluid outlets. A total piston stroke of 1.10" is distributed at a 2:1 volume ratio between the primary and secondary chambers.

• Master cylinder bolts directly to the mustangs existing firewall mounts and connects to the stock pedal with no additional parts or modifications. The pushrod may require incremental length adjustment, which is easily accomplished with the supplied pushrod kit.

• The master cylinder works equally well on cars with either rear drum or disc brakes. Some re-plumbing is required and all the necessary fittings to connect new lines to the master cylinder are included.

• A 15/16" bore provides the necessary volume and pressure requirements.

• Not designed for use with power brakes.

Wilwood Combination Proportioning Valve Details:

• Simplifies mounting, fluid circuit plumbing, brake light wiring, and brake bias adjustments on modified, custom built, or competition vehicles equipped with brake system upgrades
• Maintains full separation between the front and rear fluid circuits when used with tandem outlet or dual mount master cylinder assemblies
• Bias proportioning adjustment is provided in the rear fluid circuit
• The front circuit has a single inlet and two outlets for optional line routing
• A fluid port with a pressure switch responds instantly to pressure in the front fluid circuit for brake light activation. A wiring pigtail with a protective boot is included with the switch

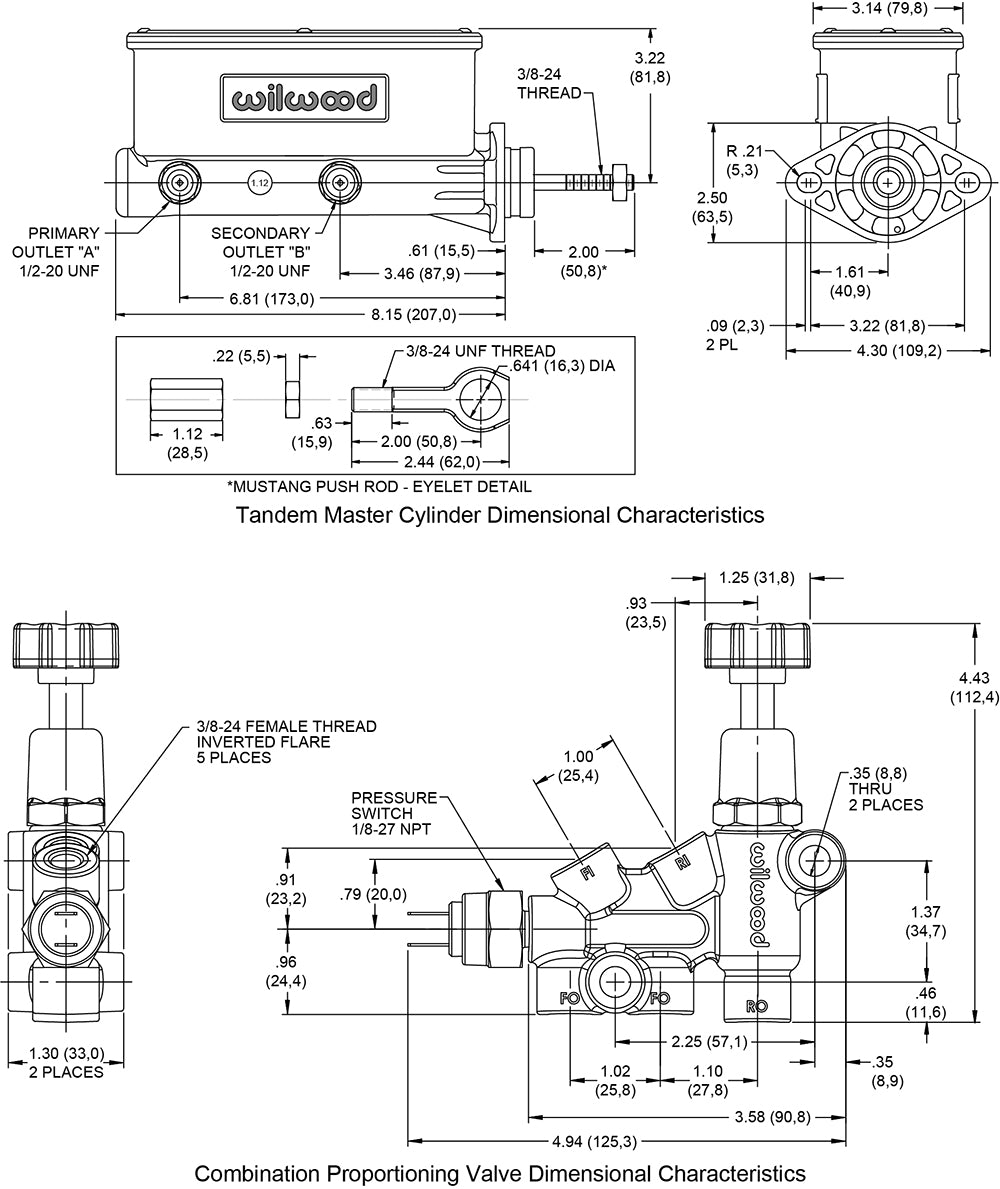

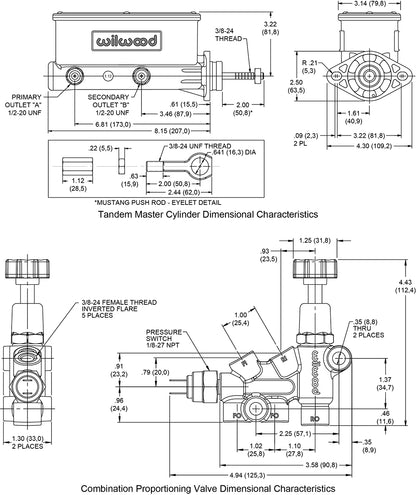

• Diagram shown in photos

You can view and download the assembly instruction booklet here.
