TANDEM COMPACT MASTER CYLINDER,MOPAR 4-BOLT,1 1/8",BLACK

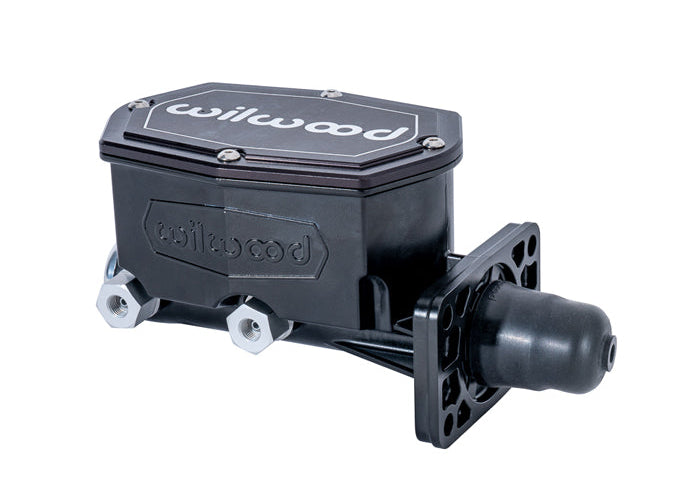

Brand New Wilwood Compact Tandem Master Cylinder with Black Finish and 1-1/8" Bore Size (Part #260-16793-BK).

Wilwood now makes a performance master cylinder with a flange specifically for Mopar unique four bolt patterns. The rectangular mounting flange of our Mopar compact tandem master cylinder matches the A-Body, B-Body and the E-Body firewall mounts in the 1960s and 70s. Black E-coat finish to complement any engine bay.

Specs:

• Bore Size: 1-1/8"

• Area (In²): 0.97

• Stroke: 1.10

• Outlets: 2

• Material: Aluminum

• Finish: Black

• Res Type: Integral

• Res Size (Oz): 7.8 / 4.7

• Res Size(Cu In): 14.0 / 8.5

• Overall Length(in): 7.16"

• Flange to End Length (in): 6.55"

• Outlet Size 1 (in): 1/2-20 NPT

• Outlet Fit 1 (in): 3/8-24 IF or 1/2-20 IF

• Outlet Size 2 (in): 1/2-20

• Outlet Fit 2 (in): 3/8-24 IF or 9/16-20 IF

You can view and download the complete assembly instruction booklets for this master cylinder kit here.
