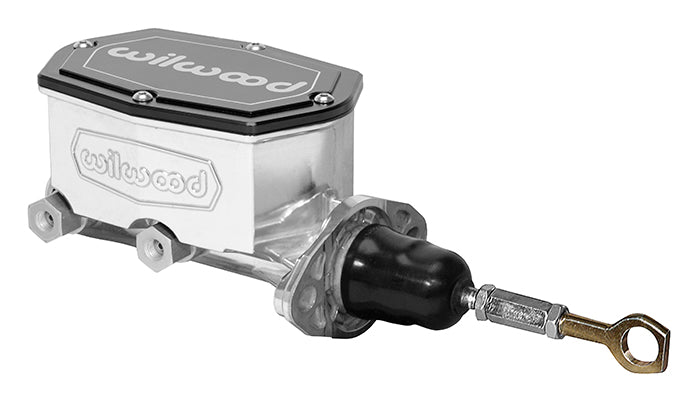

TANDEM COMPACT MASTER CYLINDER,64-73 MUSTANG,15/16",CHROME

Brand New Wilwood Aluminum Compact Tandem Master Cylinder with a Chrome Finish & 15/16" Bore (Part #260-15521-P).

Wilwood’s Compact Tandem Master Cylinder for Mustangs comes with the correct pushrod and 15/16" bore with a chrome powder coat. These master cylinders are designed primarily for manual applications and include the correct pushrod for the factory 64-73 brake pedal. They’re designed for mount flanges from 3.22” to 3.40”, which match the 64-73 factory manual master cylinder mount, and offer fluid outlet ports on both sides of the bore. The stroke is set at 1.10” with a volume ratio of 2:1 between the primary and secondary chambers. Machined from high-pressure die castings, each master cylinder weighs only 3lbs, a 75% weight savings over most cast iron OE type master cylinders. We also offer a combination proportioning valve kit, which includes brackets and stainless lines specifically for use with this master cylinder, see retrofit kits PN 260-14248 for L/H outlets, or 260-15667 for R/H outlets.

Fits:

• Ford:
  • 1964-1973 Mustang

Note:

• High temperature brake fluid recommended for racing applications.

Specs:

• Bore Size: 15/16"
• Area (in²): 0.690
• Stroke: 1.10
• Type: Tandem Outlet
• Outlets: 2
• Material: Aluminum
• Finish: Chrome Powder Coat
• Res Type: Integral
• Res Size (oz): 7.8 / 4.7
• Res Size(cu in): 14.0 / 8.5
• Overall Length(in): 12.32"
• Flange to End Length (in): 6.55"
• Outlet Size 1 (in): 1/2-20 NPT
• Outlet Fit 1 (in): 3/8-24 IF or 1/2-20 IF
• Outlet Size 2 (in): 1/2-20
• Outlet Fit 2 (in): 3/8-24 IF or 9/16-18 IF

You can view and download the assembly instruction booklet here.
