TANDEM COMPACT MASTER CYLINDER,W/O ROD,1 1/8",BLACK

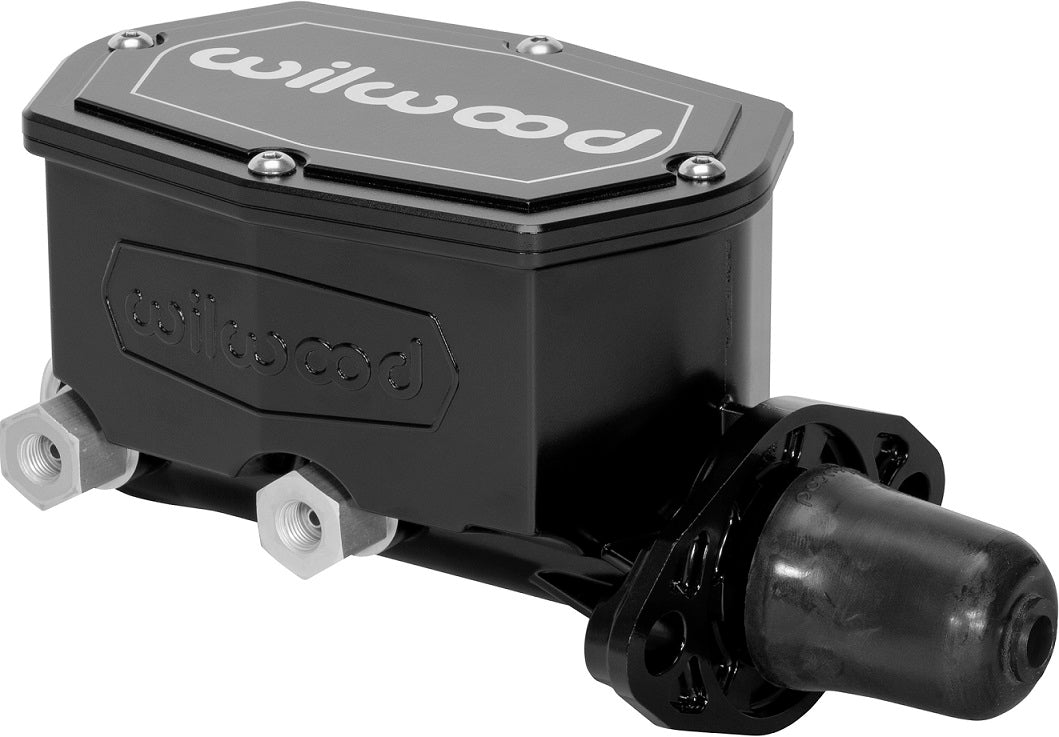

BRAND NEW WILWOOD DUAL OUTLET BLACK COATED ALUMINUM COMPACT TANDEM CHAMBER MASTER CYLINDER WITH A 1-1/8" BORE

FEATURES:

• THE WILWOOD COMPACT TANDEM MASTER CYLINDER, BALL BURNISHED, BLACK E-COATED, 1-1/8" BORE CAN BE USED IN MANUAL AND POWER ASSISTED APPLICATIONS.
• COMES WITHOUT A PUSHROD
• THE 1-1/8" BORE IS DESIGNED FOR USE PRIMARILY WITH POWER BRAKE APPLICATIONS, EITHER FROM VACUUM ASSIST OR HYDRAULIC ASSIST SYSTEMS.

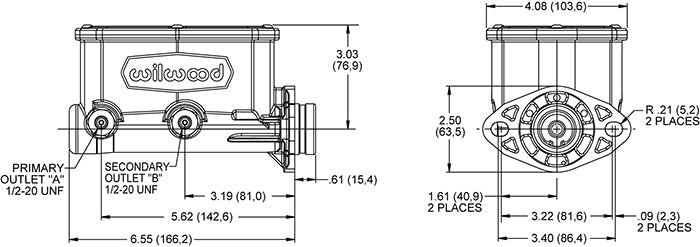

• THEY ARE DESIGNED FOR MOUNT FLANGES FROM 3.22" TO 3.40", COMMON MEASUREMENTS FOR MOST DOMESTIC CARS AND TRUCKS FROM THE MID 1960S TO PRESENT, AND OFFER FLUID OUTLET PORTS ON BOTH SIDES OF THE BORE. THE STROKE IS SET AT 1.10" WITH A VOLUME RATIO OF 2:1 BETWEEN THE PRIMARY AND SECONDARY CHAMBERS.
• MACHINED FROM HIGH-PRESSURE DIE CASTINGS, EACH MASTER CYLINDER WEIGHS ONLY 3 LBS., A 75% WEIGHT SAVINGS OVER MOST CAST IRON OE TYPE MASTER CYLINDERS.
