TANDEM COMPACT MASTER CYLINDER,W/ROD,7/8",CHROME

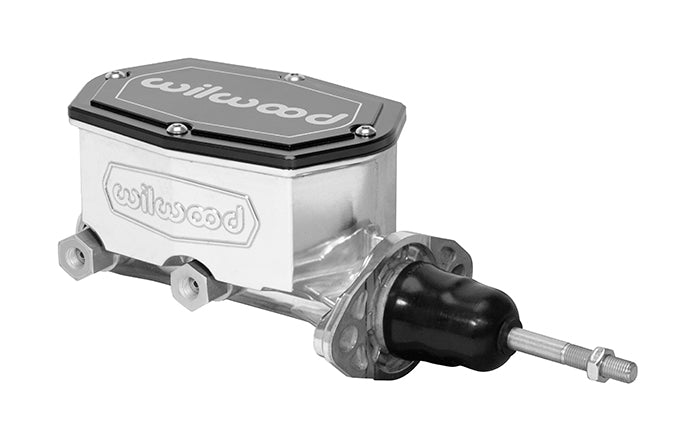

Brand New Wilwood Aluminum Compact Tandem Master Cylinder with Pushrod, 7/8" Bore, & Chrome Powder Coat (Part #260-14957-P).

Wilwood’s Compact Tandem Master Cylinders w/ Pushrod available in 7/8" bore and chrome powder coat. These master cylinders are designed primarily for manual applications and include a pushrod. They’re designed for mount flanges from 3.22” to 3.40”, common measurements for most domestic cars and trucks from the mid 1960s to present, and offer fluid outlet ports on both sides of the bore. The stroke is set at 1.10” with a volume ratio of 2:1 between the primary and secondary chambers. Machined from high-pressure die castings, each master cylinder weighs only 3lbs, a 75% weight savings over most cast iron OE type master cylinders. We also offer a combination proportioning valve kit, which includes brackets and stainless lines specifically for use with this master cylinder, see retrofit kits PN 260-14248 for L/H outlets, or 260-15667 for R/H outlets.

Fits:

• Mid 1960s-Present Domestic Cars & Trucks with 3.22” to 3.40” Mount Flanges

Specs:

• Bore Size: 7/8"
• Area (in²): 0.600
• Stroke: 1.10
• Type: Tandem Outlet
• Outlets: 2
• Material: Aluminum
• Finish: Black E-Coat
• Res Type: Integral
• Res Size (oz): 7.8 / 4.8
• Res Size(cu in): 14.0 / 8.5

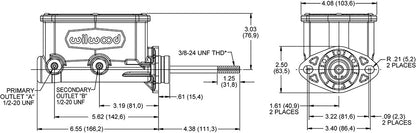

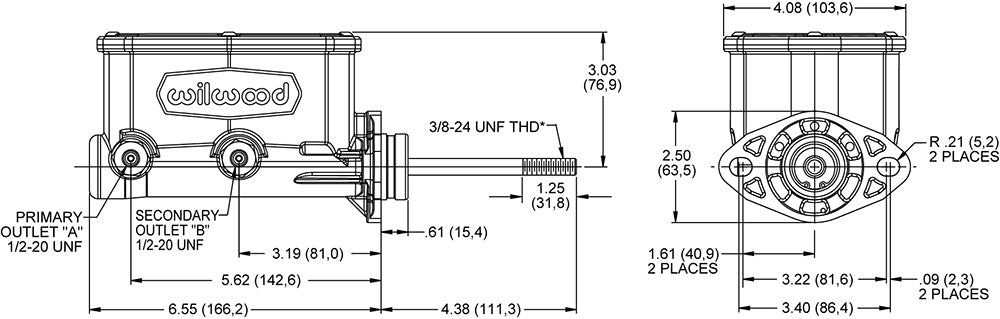

• Overall Length(in): 10.93"
• Flange to End Length (in): 6.55"
• Outlet Size 1 (in): 1/2-20 NPT
• Outlet Fit 1 (in): 3/8-24 IF or 1/2-20 IF
• Outlet Size 2 (in): 1/2-20
• Outlet Fit 2 (in): 3/8-24 IF or 9/16-18 IF

You can view and download the assembly instruction booklet here.
