MASTER CYLINDER KIT,REMOTE,SIDE MOUNT,15/16

MASTER CYLINDER KIT,REMOTE,SIDE MOUNT,15/16

WIL 260-14790

$114.61
$114.61

Yes, we have this item in stock and ready to ship immediately!
View full details

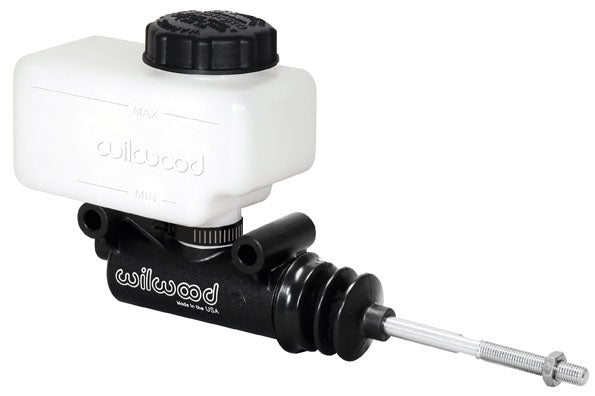

  • BRAND NEW WILWOOD RACING COMPACT SIDE MOUNT MASTER CYLINDER KIT WITH A 15/16" BORE (PART #260-14790).

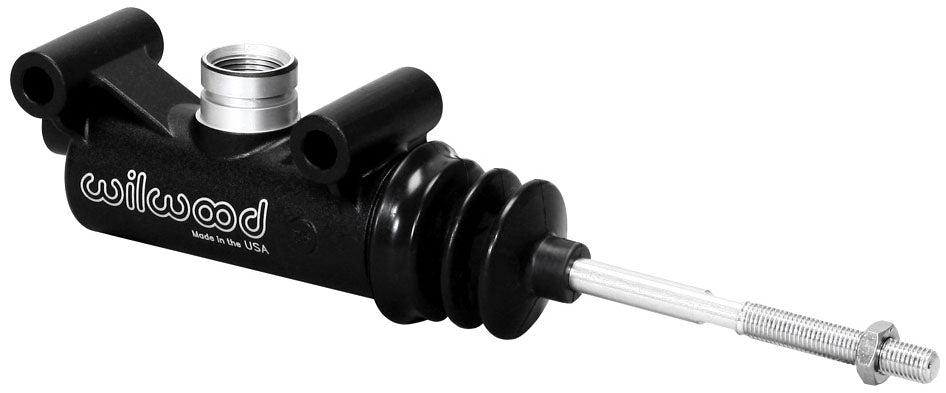

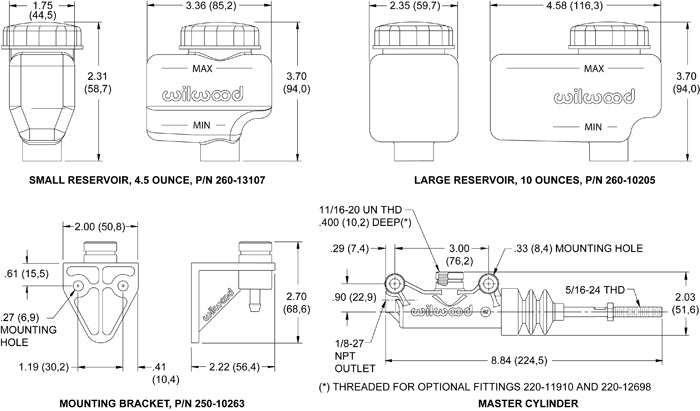

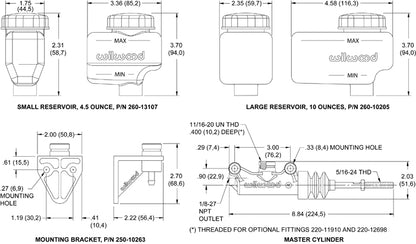

  • WILWOODS COMPACT COMBINATION (SIDE MOUNT) MASTER CYLINDERS HAVE BEEN DESIGNED FOR LIMITED SPACE APPLICATIONS, THAT STILL REQUIRE THE OUTPUT CAPACITY OF A FULL SIZE MASTER CYLINDER. THE ULTRA SHORT 3.37"COMPACT BODY PROVIDES 2.16" OF ADDITIONAL CLEARANCE BETWEEN THE MOUNTING BOSS AND THE FLUID OUTLET. THE NEW BODY DESIGN INCORPORATES INTEGRAL SIDE MOUNTING LUGS WITH A 3.00" CENTER-TO-CENTER DISTANCE AND NO TRADITIONAL MOUNTING FLANGE, WHICH FURTHER ENHANCES ITS ABILITY TO MOUNT IN TIGHT SPACES. A FULL 1.12" OF PISTON STROKE MEETS OR EXCEEDS THE STROKE CAPACITY OF MOST FULL SIZE CYLINDERS. WITH THE 1/8" NPT FLUID OUTLET PORT LOCATED AT THE TOP RADIUS OF THE CYLINDER BORE, IT REDUCES THE CHANCES FOR TRAPPED AIR. ENHANCED FLUID INLET PORT ALLOWS MOUNTING OF THE STANDARD RESERVOIR INCLUDED IN KIT AND ALSO CONTAIN 11/16-20 INTERNAL THREADS FOR CUSTOM RESERVOIR ARRANGEMENTS. THE BLACK E-COATED ALUMINUM BODY RESISTS CORROSION AND MAINTAINS A DURABLE LONG LASTING FINISH.

    • FEATURES:

  • WILWOODS COMPACT DESIGN KIT ALLOWS FOR MORE ROOM THAT IS ALWAYS NECESSARY IN AND AROUND THE PEDAL BOX AREA

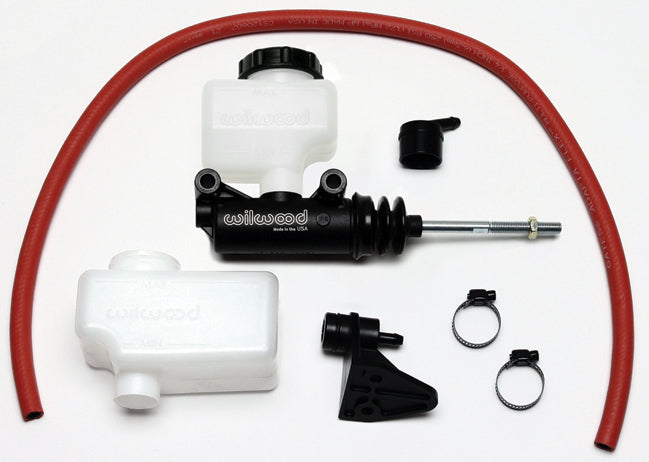

  • THIS KIT GIVES YOU MULTIPLE RESERVOIR MOUNTING OPTIONS
  • REMOTE OR DIRECT MOUNTED OPTION FOR EITHER SMALL OR LARGE RESERVOIR AND CONVENIENT 1/8" NPT OUTLETS
  • ULTRA-COMPACT LIGHTWEIGHT DESIGN
  • HIGH-PERFORMANCE RACE ENGINEERING

    • YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS MASTER CYLINDER HERE.
