TANDEM MASTER CYLINDER,REMOTE KIT,1" BORE,POLISHED

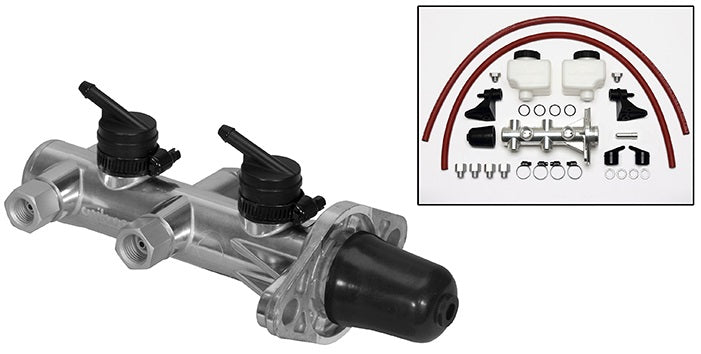

BRAND NEW WILWOOD POLISHED ALUMINUM REMOTE TANDEM MASTER CYLINDER, 1" BORE (PART #260-14243-P).

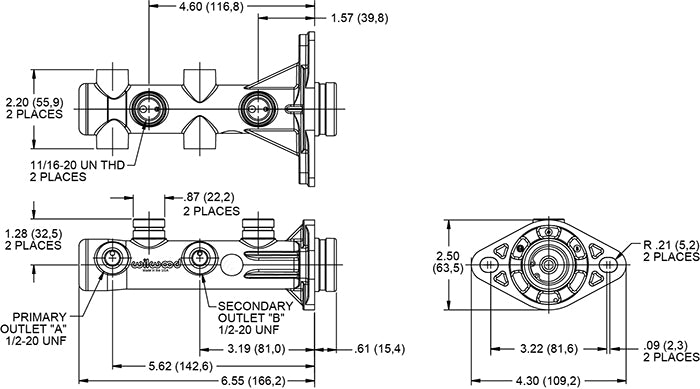

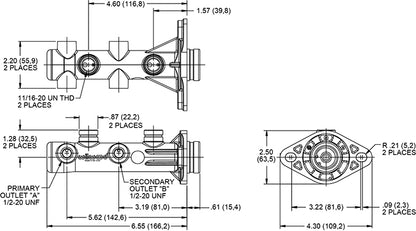

THE 1" BORE CAN BE USED IN MANUAL AND POWER ASSISTED APPLICATIONS AND DOES NOT COME WITH A PUSHROD. THEYRE DESIGNED FOR MOUNT FLANGES FROM 3.22" TO 3.40", COMMON MEASUREMENTS FOR MOST DOMESTIC CARS AND TRUCKS FROM THE MID-1960S TO PRESENT, AND OFFER FLUID OUTLET PORTS ON BOTH SIDES OF THE BORE. THE STROKE IS SET AT 1.12" WITH A VOLUME RATIO OF 2:1 BETWEEN THE PRIMARY AND SECONDARY CHAMBERS. MACHINED FROM HIGH-PRESSURE DIE CASTINGS, EACH MASTER CYLINDER WEIGHS ONLY 3LBS, A 75% WEIGHT SAVINGS OVER MOST CAST IRON OE TYPE MASTER CYLINDERS.

SPECS:

• BORE SIZE: 1"
• STROKE: 1.12"
• OUTLETS: 2
• MATERIAL: ALUMINUM
• WEIGHT: 3 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
