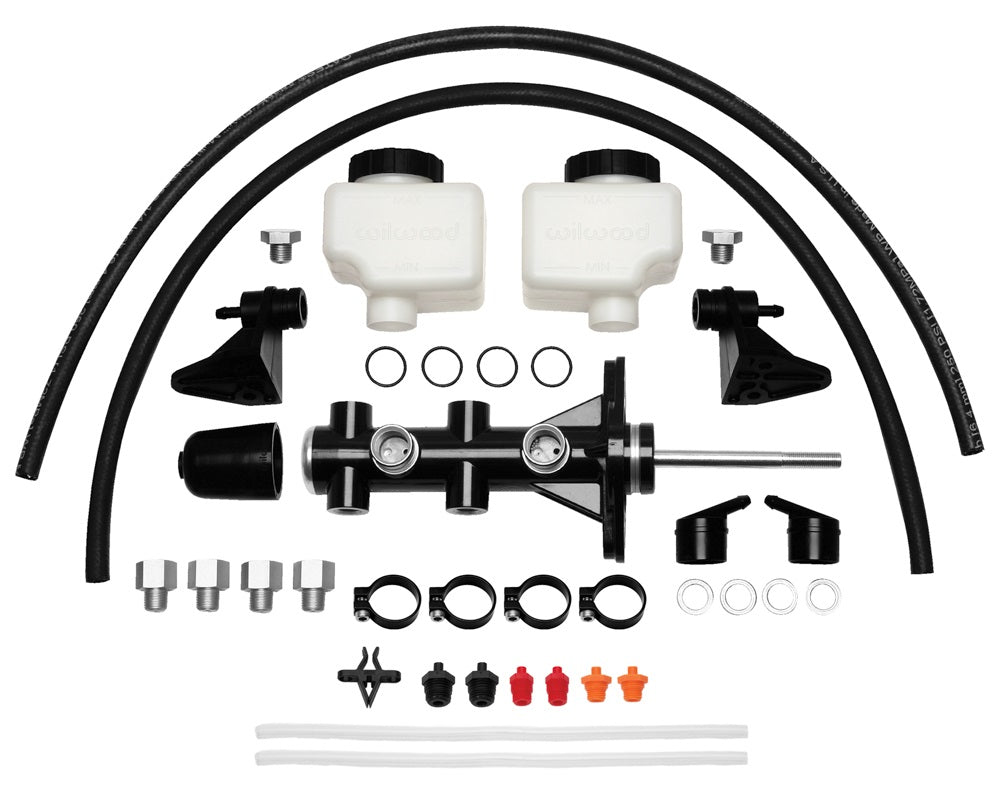

TANDEM MASTER CYLINDER,REMOTE KIT,15/16" BORE,BLACK

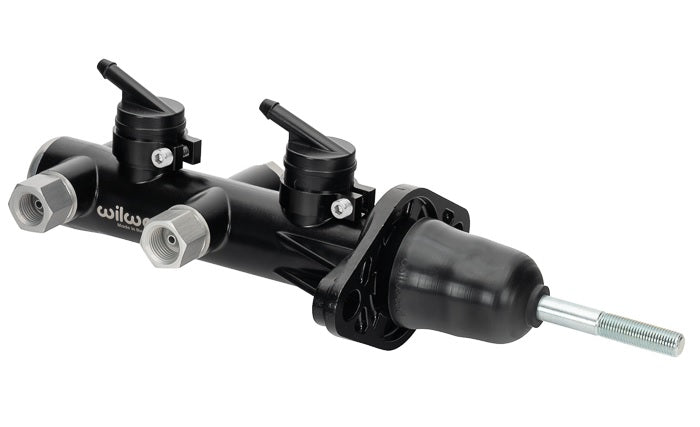

Brand New Wilwood Aluminum Remote Tandem Master Cylinder with Pushrod, Black Finish, & 15/16" Bore (Part #260-14242-BK).

Wilwood’s Remote Tandem Master Cylinder with pushrod is available in 15/16” and black e-coat. They’re designed to fit most mounting flanges and feature outlet ports both sides, for multiple plumbing options. Remote mount reservoir and bracket assemblies further enhance the utility of these cylinders. They’re designed for mount flanges from 3.22” to 3.40”, common measurements for most domestic cars and trucks from the mid 1960s to present, and offer fluid outlet ports on both sides of the bore.

Fits:

• Mid 1960s-Present Domestic Cars & Trucks with 3.22” to 3.40” Mount Flanges

Specs:

• Bore Size: 15/16"
• Area (in²): 0.690
• Type: Tandem Outlet
• Outlets: 2
• Material: Aluminum / Plastic
• Finish: Black E-coat
• Res Type: Remote
• Res Size (oz): 7.0 / 7.0
• Res Size(cu in): 12.6 / 12.6
• Overall Length(in): 10.76"
• Flange to End Length (in): 6.56"
• Inlet Size (in): 0.87" or 11/16-20
• Inlet Fit (in): 1/4" Hose
• Outlet Size 1 (in): 1/2-20
• Outlet Fit 1 (in): 3/8-24 IF or 1/2-20 IF
• Outlet Size 2 (in): 1/2-20
• Outlet Fit 2 (in): 3/8-24 IF or 9/16-18 IF

You can view and download the assembly instruction booklet here.
