CLUTCH SLAVE CYLINDER,PULLING TYPE

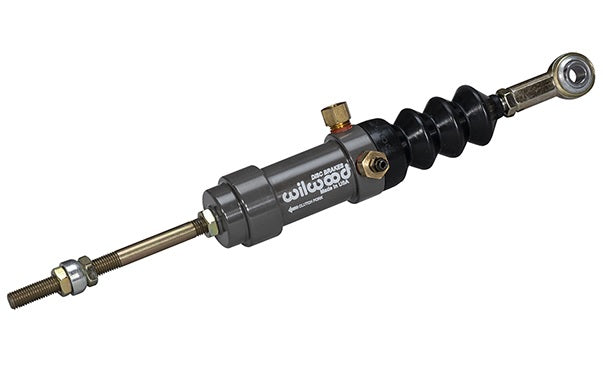

Brand New Wilwood Clutch Slave Cylinder, Pull Type, 7/8" Bore (Part #260-1333).

This "Pull Type" slave cylinder is made from billet aluminum for high strength and plated with a tough anti-corrosion finish. The stainless steel push rod has a longer stroke than most cylinders assuring a full release of the clutch. This slave cylinder is ideal for Drag Racing, Late Model Stock, Pro Series and Off Road applications. Recommended master cylinder sizing is 3/4".

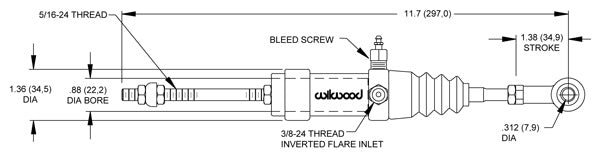

Specs:

• Bore Size: 7/8"
• Area (in²): 0.440
• Stroke: 1.38
• Volume (cu in): 0.60
• Material: Aluminum / Steel
• Finish: Type III Ano
• Overall Length(in): 11.70"
• Inlet Size (in): 1/8-27 NPT
• Inlet Fit (in): 3/8-24 IF Female

You can view and download the complete assembly instruction booklet here.
