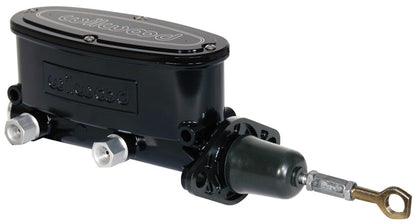

TANDEM MASTER CYLINDER,64-73 MUSTANG,W/PUSHROD,BLACK

TANDEM MASTER CYLINDER,64-73 MUSTANG,W/PUSHROD,BLACK

WIL 260-12900-B

$328.16
$328.16

Yes, we have this item in stock and ready to ship immediately!
View full details
  • 7/8" BORE TANDEM CHAMBER MASTER CYLINDER WITH PUSH ROD FOR 1964-1973 FORD MUSTANGS WITH A MANUAL BRAKING SYSTEM
  • FEATURES A BLACKCOATED HOUSING
  • WILWOOD TANDEM CHAMBER MASTER CYLINDERS REPRESENT THE LATEST REFINEMENTS IN BRAKE PRESSURE ACTUATION & FLUID CONTROL
  • THE EXCLUSIVE WILWOOD FEATURES INCORPORATED IN THIS INNOVATIVE AND UNIQUE NEW DESIGN MAKE IT THE PERFECT CHOICE FOR A WIDE RANGE OF CUSTOM MANUAL OR POWER BRAKE APPLICATIONS
  • HIGH-PRESSURE DIE CASTING OF A PREMIUM ALLOY PRODUCES A HIGH-CAPACITY BODY THAT IS LIGHTWEIGHT, LOOKS GREAT, AND HAS THE DURABILITY FOR COMPETITION
  • A BLACK ANODIZED, MACHINED BILLET LID CAPTURES A PRESSURE BALANCED BELLOWS GASKET WITH 100% SEALING AGAINST MOISTURE INVASION OR FLUID LEAKAGE
  • EACH MASTER CYLINDER IS CONFIGURED WITH FULL SEPARATION BETWEEN THE FRONT AND REAR RESERVOIR CHAMBERS AND FLUID OUTLETS
  • A TOTAL PISTON STROKE OF 1.10" IS DISTRIBUTED AT A 2:1 VOLUME RATIO BETWEEN THE PRIMARY & SECONDARY CHAMBERS
  • MASTER CYLINDER BOLTS DIRECTLY TO THE MUSTANGS EXISTING FIREWALL MOUNTS AND CONNECTS TO THE STOCK PEDAL WITH NO ADDITIONAL PARTS OR MODIFICATIONS. THE PUSHROD MAY REQUIRE INCREMENTAL LENGTH ADJUSTMENT, WHICH IS EASILY ACCOMPLISHED WITH THE SUPPLIED PUSHROD KIT
  • THE MASTER CYLINDER WORKS EQUALLY WELL ON CARS WITH EITHER REAR DRUM OR DISC BRAKES. SOME RE-PLUMBING IS REQUIRED AND ALL THE NECESSARY FITTINGS TO CONNECT NEW LINES TO THE MASTER CYLINDER ARE INCLUDED
  • A 7/8" BORE PROVIDES THE NECESSARY VOLUME AND PRESSURE REQUIREMENTS
  • NOT DESIGNED FOR USE WITH POWER BRAKES
