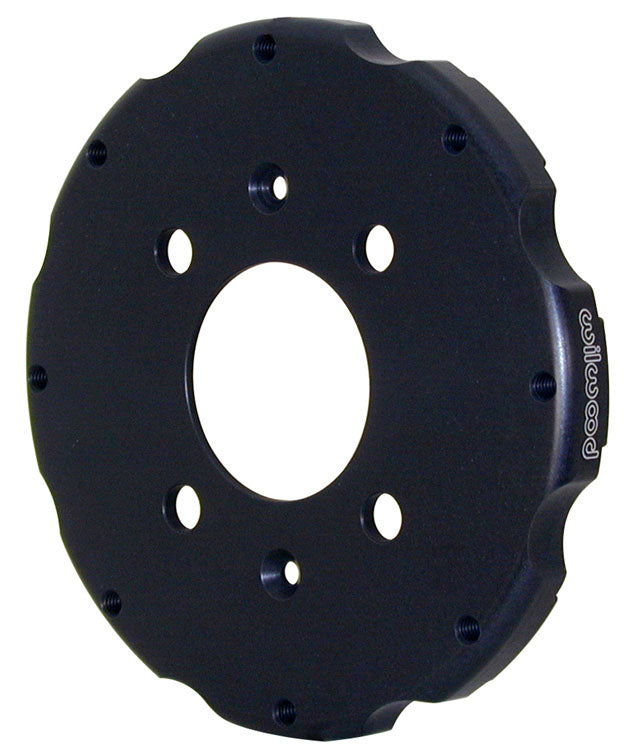

BRAKE HAT,8 x 7",5 x3.93",PT CRUISER,FRONT

BRAKE HAT,8 x 7",5 x3.93",PT CRUISER,FRONT

WIL 170-6378

$158.74
$158.74

Yes, we have this item in stock and ready to ship immediately!
View full details

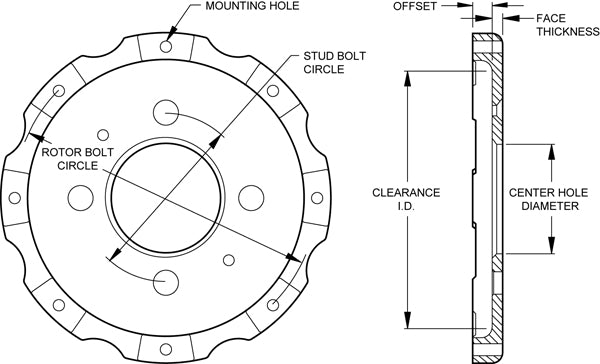

  • ROTOR BOLT CIRCLE: 8 X 7.00"
  • HAT OFFSET: .50"
  • CENTER REG: 2.4"
  • WEIGHT: 1.5 LBS
  • HAT BOLT CIRCLE: 5 X 3.93"
  • ROTOR MOUNT HOLE SIZE: 5/16-18
  • CLEARANCE I.D.: 5.90"
  • FACE THICKNESS: 0.25"

  • GT SERIES BIG BRAKE SHORT OFFSET HATS ARE PRECISION MACHINED FROM PREMIUM ALUMINUM ALLOYS FOR HIGH STRENGTH AND ATTENTION TO MINIMIZED WEIGHT. HATS IN THIS CATEGORY FEATURE THREADED ROTOR MOUNT HOLES FOR USE WITH STANDARD THROUGH-HOLE MOUNT ROTORS. THREADED HOLE HATS MAY ALSO BE USED WITH T-NUTS OR BOBBINS DESIGNED FOR USE WITH SPECIALLY MACHINED SLOTTED HOLE DYNAMIC MOUNT ROTORS. WHEN USED IN CONJUNCTION WITH MATCHED WILWOOD ROTOR HARDWARE KITS, GT HATS PROVIDE SOLID, RELIABLE PERFORMANCE IN THE MOST DEMANDING CONDITIONS. SHORT OFFSET HATS ARE FOR NARROW SPACE APPLICATIONS WITH OFFSETS OFTEN LESS THAN 1.00". THEY ARE AVAILABLE FOR MOST ROTOR BOLT PATTERNS IN A VARIETY OF FOUR AND FIVE LUG WHEEL PATTERNS.
  • SHALLOW OFFSET HATS ARE FOR NARROW SPACE APPLICATIONS WITH OFFSETS OFTEN LESS THAN 1.00". THEY ARE AVAILABLE FOR MOST ROTOR BOLT PATTERNS IN A VARIETY OF FOUR AND FIVE LUG WHEEL PATTERNS.



    • Click Picture
    For Larger View

    Brake Hats
