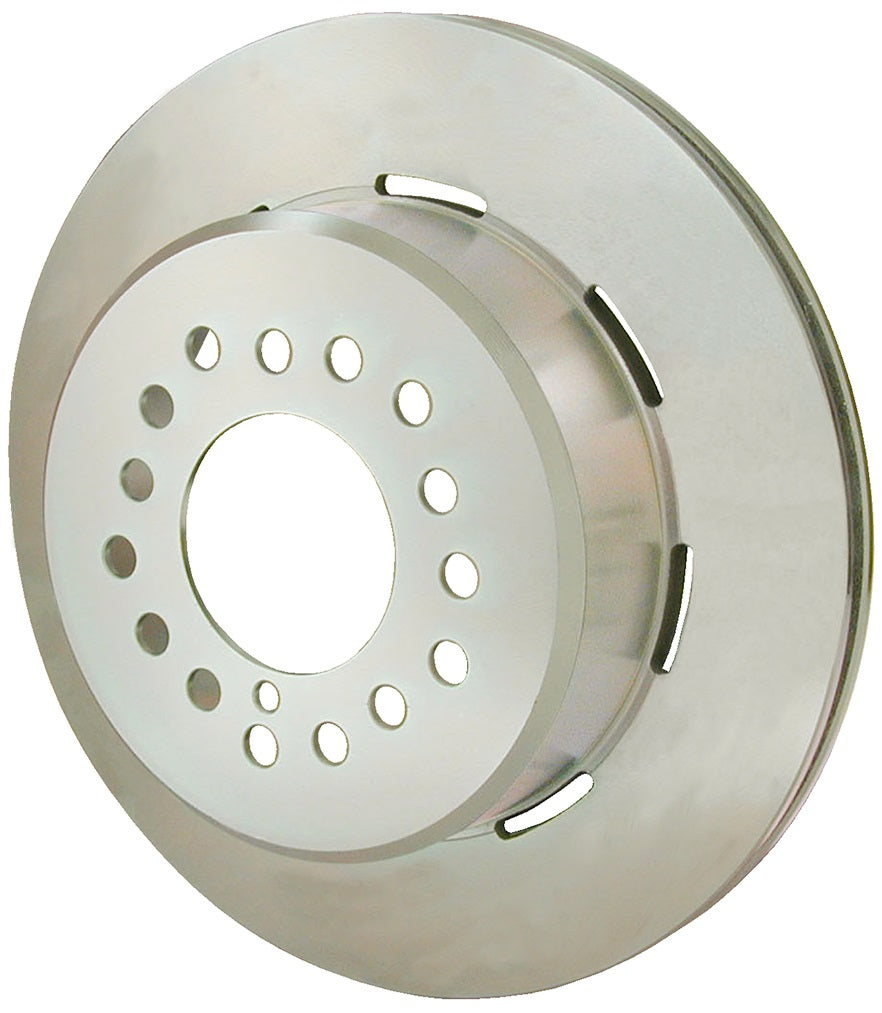

ROTOR/HAT,5 LUG,2.32",12.19"x.810"

Brand New Wilwood Ultralite HP 32 Vane Rotor & Hat, Driver or Passenger Side Mount (Part #160-9986).

HP rotors are close tolerance machined with smooth turned pad faces. The additional mass of the HP series extends service life on heavier competition vehicles and other severe duty applications. They are also the base model for every day use.

Features:

• Rear brake rotor for disc/drum internal parking brake kits.

Specs:

• Width (in): 0.81

• Diameter (in): 12.19

• Material: Iron

• Vane Count: 32 V

• Weight(Lbs): 14.4
• Lug ID / Registration (in): 3.06

• Far Side Inside Diameter (in): 8.38

• Offset Dimension (in): 2.320
• Shoe Inside Dimension (in): 7.24

• Clearance Inside Diameter (in): 7.16

• Wheel Bolt Circle (in): 5 x 4.50/4.75/5.00

• Stud Diameter (in): 0.52

• Face Thickness (in): 0.18
