WWE PRO SPINDLE KIT,FRONT,14",BLACK,DRILLED
WWE PRO SPINDLE KIT,FRONT,14",BLACK,DRILLED
SKU:WIL 140-9920-D
Couldn't load pickup availability

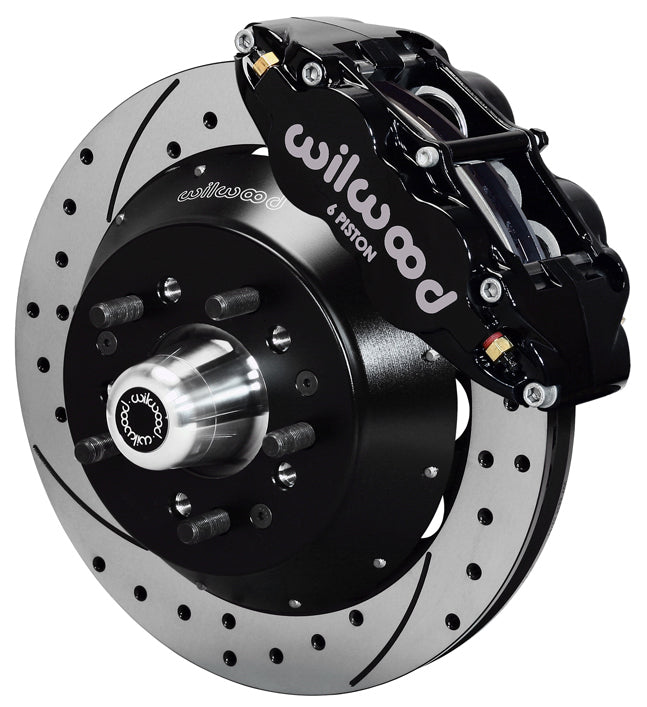

Brand New Wilwood Forged Narrow Superlite 6R Brake Kit Featuring 14" Drilled Rotors with Black Calipers For Both Front Wheels (Part #140-9920-D).
FNSL6R billet Forged six-piston calipers with 14” rotors deliver the ultimate combination for braking power and style in this group of kits engineered for traditional non-ABS spindles on American muscle cars and vintage rods. Built exclusively for 18” and larger wheels, SL6 kits enhance tire and suspension upgrades on all types of custom show and high performance dual-purpose street and track machines. A full range of options for caliper finishes and rotor designs are guaranteed to catch the eye of the most discriminating enthusiast while providing optimized brake performance for every individual application.

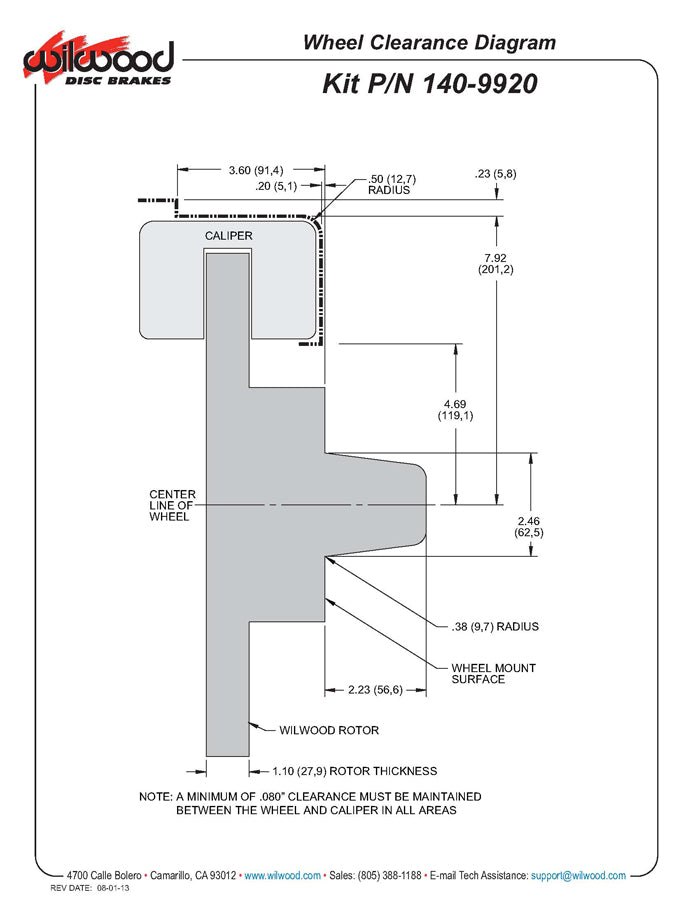

NOTE: This kit fits the following vehicles ONLY with Wilwood ProSpindles. Stock ride height spindles available here, or the 2" drop spindles are available here. This kit require at least 18" diameter wheels. Check wheel clearance diagram for proper fitment. Hub offset is +0.68.
Fits:
-
Art Morrison:
- 47-53 Chevy Truck AME GT Sport Chassis (Wilwood Pro Spindle)
- 53-62 Corvette AME GT Sport Chassis (Wilwood Pro Spindle)
- 55-56 Ford F100 AME GT Sport Chassis (Wilwood Pro Spindle)
- 55-57 Chevy (Auto) AME GT Sport Chassis (Wilwood Pro Spindle)
- 55-59 Chevy Truck AME GT Sport Chassis (Wilwood Pro Spindle)
- 59-64 Chevy (Full Size) AME GT Sport Chassis (Wilwood Pro Spindle)
- 63-67 Corvette AME GT Sport Chassis (Wilwood Pro Spindle)
- 47-53 Chevy Truck AME GT Sport Chassis (Wilwood Pro Spindle)
-
Roadster Shop:
- Spec Chassis 2016+ All
-
Wilwood:
- ProSpindle (Std. Height and 2" Drop)

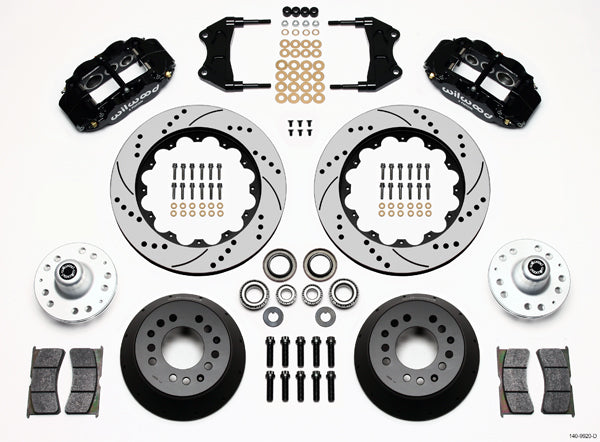

Kit includes:
- 6 Piston Superlite Calipers
- BP-10 Compound Brake Pads
- 14" O.D. x 1.10" Thick Rotors
- Hub - Hat Mount
- All brackets, bolts, washers, shims, and nuts necessary to install the kit.
Complete kit weighs approximately 67 lbs.

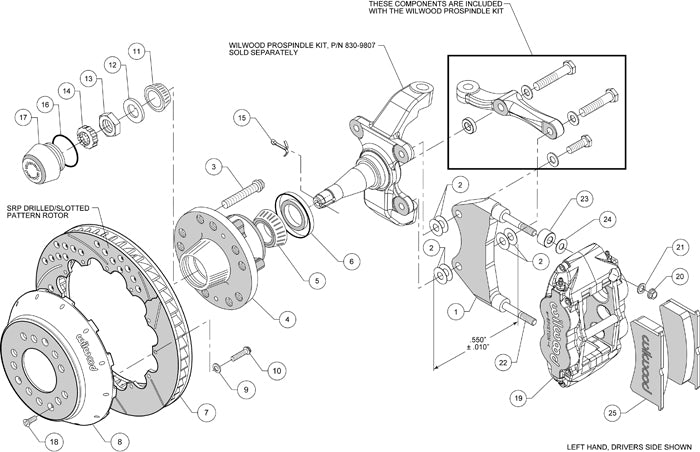

You can view and download the assembly/instruction booklet here.
