WWE PRO SPINDLE KIT,FRONT,FDL,12",BLACK

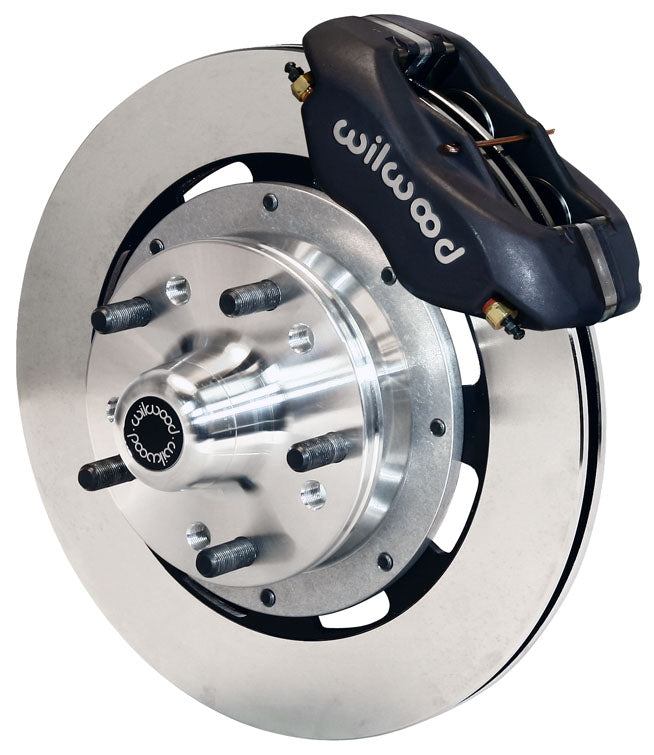

Brand New Wilwood Dynalite Pro Series Brake Kit Featuring 12.19" Solid Rotors with Black Calipers For Both Front Wheels (Part #140-9918).

FDL Pro-Series Front Hub Kits offer complete disc brake upgrade solutions for traditional non-ABS spindle applications on American muscle cars, vintage rods, and heavy weight drag cars. Based on the venerable forged billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. Most kits require no modifications for installation, and provide plenty of clearance inside popular 15” wheels. FDL Pro-Series kits can be used with either manual or power boost master cylinders.

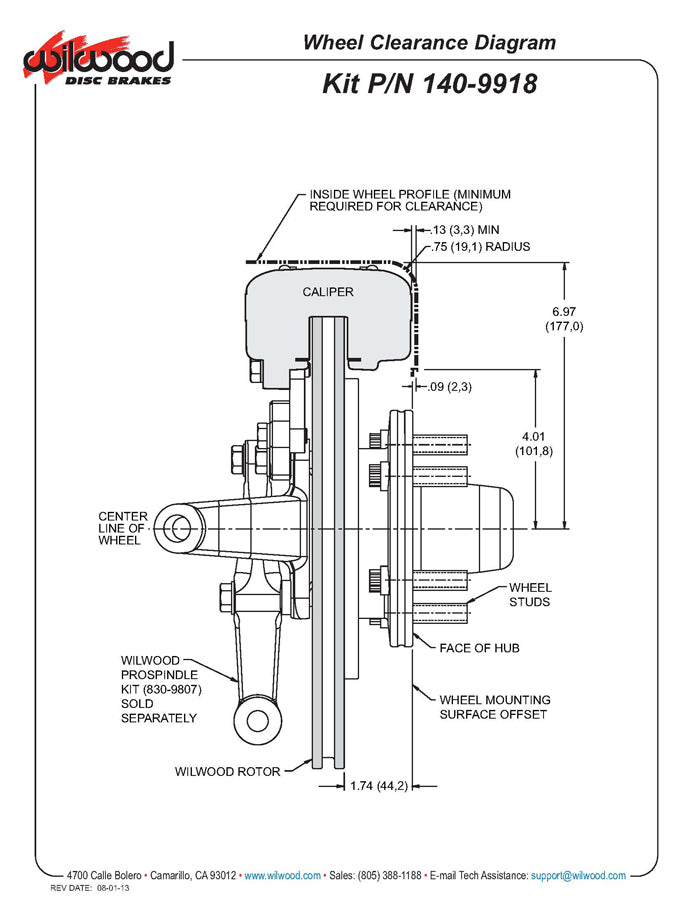

NOTE: This kit fits the following vehicles ONLY with Wilwood ProSpindles. Stock ride height spindles available here, or the 2" drop spindles are available here. This kit require at least 15" diameter wheels. Check wheel clearance diagram for proper fitment. Hub offset is +0.10.

Fits:

• Art Morrison:
  • 47-53 Chevy Truck AME GT Sport Chassis (Wilwood Pro Spindle)

  • 53-62 Corvette AME GT Sport Chassis (Wilwood Pro Spindle)

  • 55-56 Ford F100 AME GT Sport Chassis (Wilwood Pro Spindle)

  • 55-57 Chevy (Auto) AME GT Sport Chassis (Wilwood Pro Spindle)

  • 55-59 Chevy Truck AME GT Sport Chassis (Wilwood Pro Spindle)

  • 59-64 Chevy (Full Size) AME GT Sport Chassis (Wilwood Pro Spindle)

  • 63-67 Corvette AME GT Sport Chassis (Wilwood Pro Spindle)
• Roadster Shop:
  • Spec Chassis 2016+ All
• Wilwood:
  • ProSpindle (Std. Height and 2" Drop)

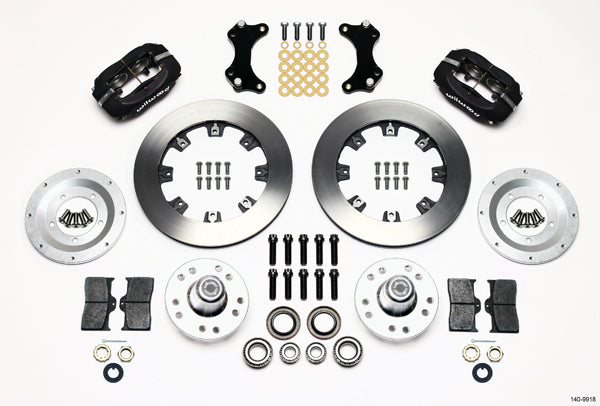

Kit includes:

• 4 Piston Dynalite Calipers

• BP-10 Compound Brake Pads

• 12.19" O.D. x 0.81" Thick Rotors

• Hub - Hat Mount
• All brackets, bolts, washers, shims, and nuts necessary to install the kit.


Complete kit weighs approximately 44 lbs.

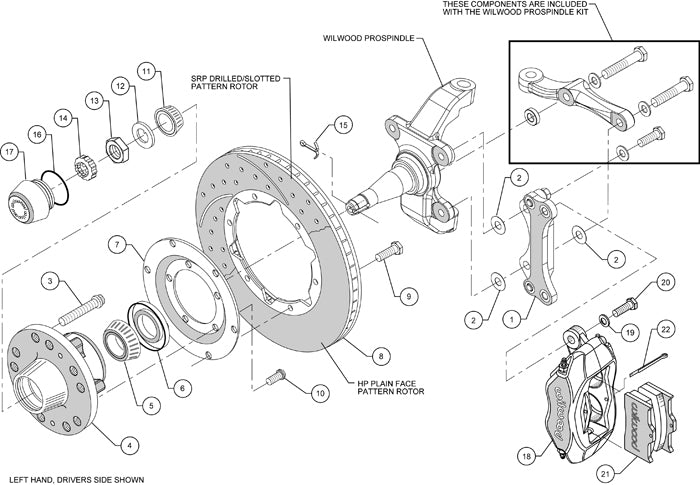

You can view and download the assembly/instruction booklet here.
