99-18 GM 1500 TRUCK/SUV W/2 PISTON OE,REAR,AERO4 BLACK CALIPERS,14.25" DRILLED

BRAND NEW WILWOOD PREMIUM BIG BRAKE W4A BOLT-ON REAR HAT & 14.25" DISC BRAKE KIT (PART #140-9838-D) FOR BOTH REAR WHEELS.

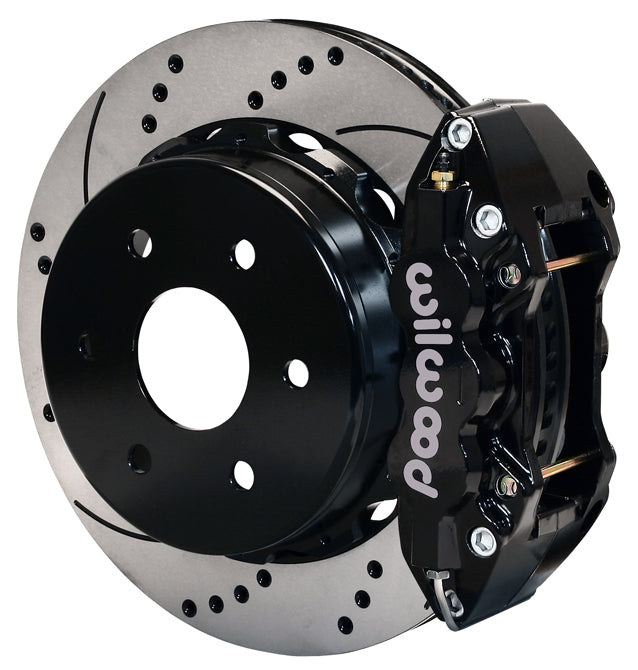

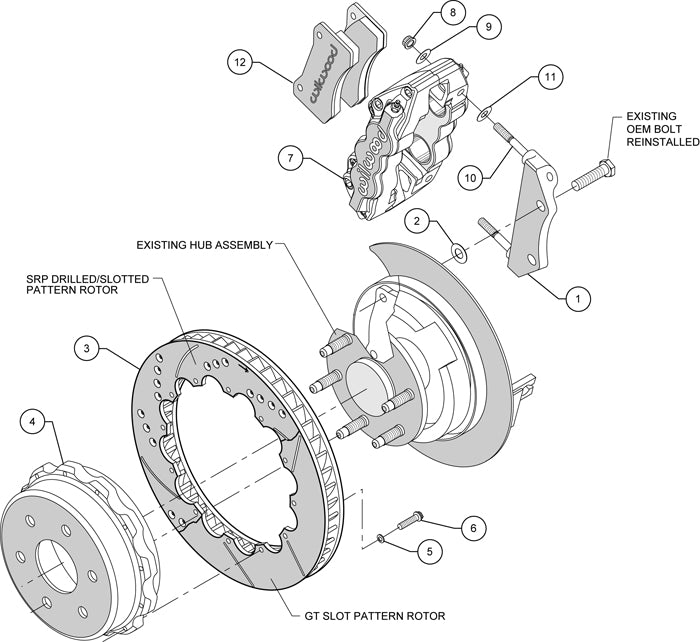

ONLY ONE SIDE PICTURED. SEE THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF THE PARTS INCLUDED.

FEATURES DRILLED & SLOTTED ROTORS, AS WELL AS POWDER-COATED BLACK CALIPERS.

FITS:

• CADILLAC:
  • ESCALADE:
    • 2007-2008, ALL 6 LUG
  • ESCALADE ESV:
    • 2007-2008, ALL 6 LUG
  • ESCALADE EXT:
    • 2007-2008, ALL 6 LUG
• CHEVY:
  • AVALANCHE 1500:
    • 2002-2006, ALL 6 LUG
  • AVALANCHE:
    • 2007-2011, ALL 6 LUG
  • SILVERADO 1500:
    • 2001-2006, ALL 6 LUG THAT HAD OE HD 2 PISTON REAR BRAKE CALIPERS
    • 2007, CLASSIC STYLE FRAME, ALL 6 LUG THAT HAD OE HD 2 PISTON REAR BRAKE CALIPERS
    • 2007, NEW STYLE FRAME, ALL 6 LUG THAT HAD OE REAR DISC BRAKES
    • 2008-2011, ALL 6 LUG THAT HAD OE REAR DISC BRAKES
  • SUBURBAN 1500:
    • 2000-2006, ALL 6 LUG THAT HAD OE HD 2 PISTON REAR BRAKE CALIPERS
    • 2007-2011, ALL 6 LUG
  • TAHOE:
    • 2000, NEW STYLE FRAME, ALL 6 LUG THAT HAD OE HD 2 PISTON REAR BRAKE CALIPERS
    • 2001-2006, ALL 6 LUG THAT HAD OE HD 2 PISTON REAR BRAKE CALIPERS
    • 2007, 4 X 2, ALL 6 LUG THAT HAD OE REAR DISC BRAKES
    • 2008-2011, ALL 6 LUG THAT HAD OE REAR DISC BRAKES
• GMC:
  • SIERRA 1500:
    • 2001-2006, ALL 6 LUG THAT HAD OE HD 2 PISTON REAR BRAKE CALIPERS
    • 2007, CLASSIC STYLE FRAME, ALL 6 LUG THAT HAD OE HD 2 PISTON REAR BRAKE CALIPERS
    • 2007, NEW STYLE FRAME, ALL 6 LUG THAT HAD OE REAR DISC BRAKES
    • 2008-2011, ALL 6 LUG THAT HAD OE REAR DISC BRAKES
  • YUKON:
    • 2000, EXCEPT DENALI, ALL 6 LUG THAT HAD OE HD 2 PISTON REAR BRAKE CALIPERS
    • 2001-2006, ALL 6 LUG THAT HAD OE HD 2 PISTON REAR BRAKE CALIPERS
    • 2007-2011, ALL 6 LUG
  • YUKON XL 1500:
    • 2000-2006, ALL 6 LUG THAT HAD OE HD 2 PISTON REAR BRAKE CALIPERS
    • 2007-2011, ALL 6 LUG

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

W4AR BIG BRAKE REAR AXLE KITS REPLACE THE FACTORY DISC BRAKES AND USE THE OE PARKING BRAKE ASSEMBLY AS A COMPLIMENT TO FRONT BIG BRAKE UPGRADES ON LATE MODEL TRUCKS AND SUVS. HIGH CAPACITY BRAKING FROM THE W4AR CALIPERS, BP-10 COMPOUND PADS, AND OVERSIZED ROTORS ARE MATCHED TO THE OE MASTER CYLINDER OUTPUT, ABS FUNCTION, AND INDIVIDUAL VEHICLE BIAS REQUIREMENTS. ENHANCED BRAKE PERFORMANCE, INCREASED DURABILITY, AND HIGH-TECH STYLE COMPLIMENT BIG WHEEL, TIRE, AND SUSPENSION UPGRADES ON CUSTOMIZED VEHICLES, TOW RIGS, AND ALL OTHERS WITH INCREASED BRAKE REQUIREMENTS FROM HIGH GVW.

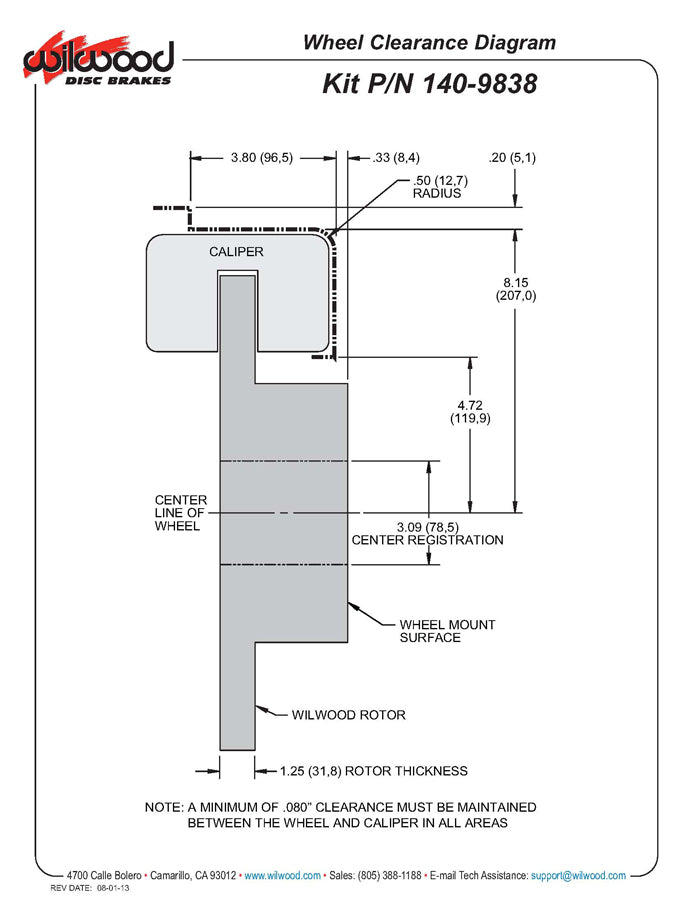

THESE BIG BRAKE KITS REQUIRE AT LEAST 18" DIAMETER WHEELS.

KIT INCLUDES PARTS FOR BOTH REAR WHEELS:

• DRILLED & SLOTTED, 1.25" THICK X 14.25" O.D. ROTORS
• W4A RADIAL MOUNT CALIPERS - BLACK
• CALIPER MOUNTING BRACKETS
• BP-10 SMART COMPOUND BRAKE PADS
• BRAKE HATS
• ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH REAR WHEELS

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
