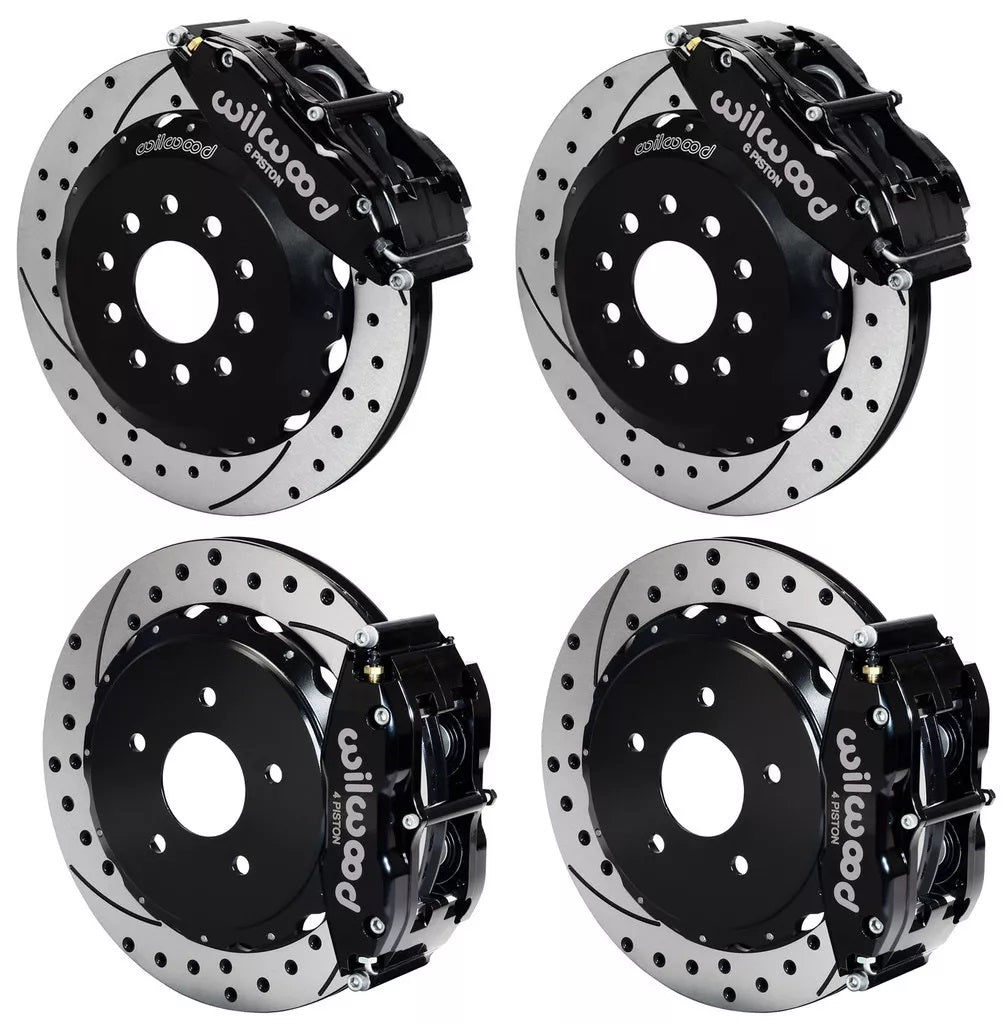

98-02 CAMARO FULL DISC BRAKE KIT,14/13" DRILLED ROTORS,BLACK CALIPERS

Brand New Wilwood Complete Premium Big Brake Front & Rear Disc Brake Kit.

Complete Kit Includes:

• Superlite 6 Piston Bolt-On Front Hat & 14.00" Disc Brake Kit (Part #140-9834-D) for Both Front Wheels
• Superlite 4 Piston Bolt-On Rear Hat & 12.90" Disc Brake Kit (Part #140-9830-D) for Both Rear Wheels

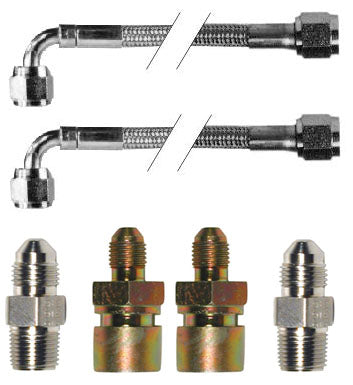

• Full Line Kit for the Front with 15" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings

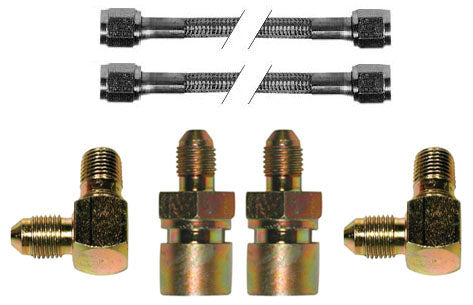

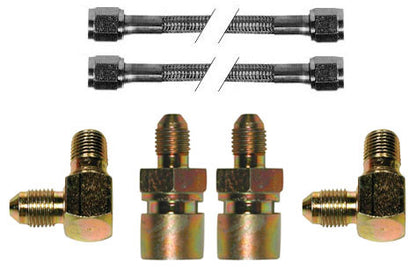

• Full Line Kit for the Rear with 18" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings

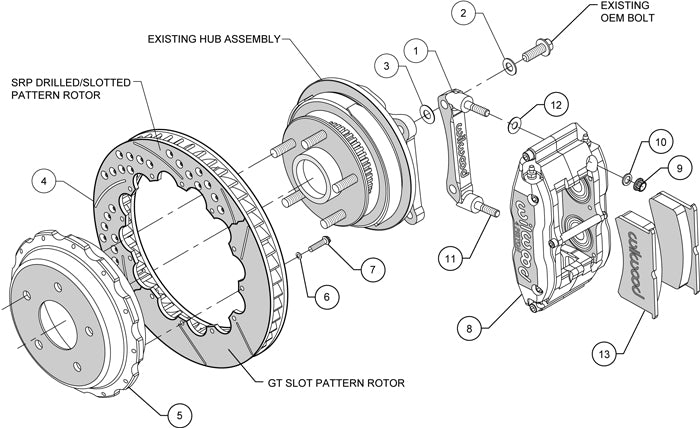

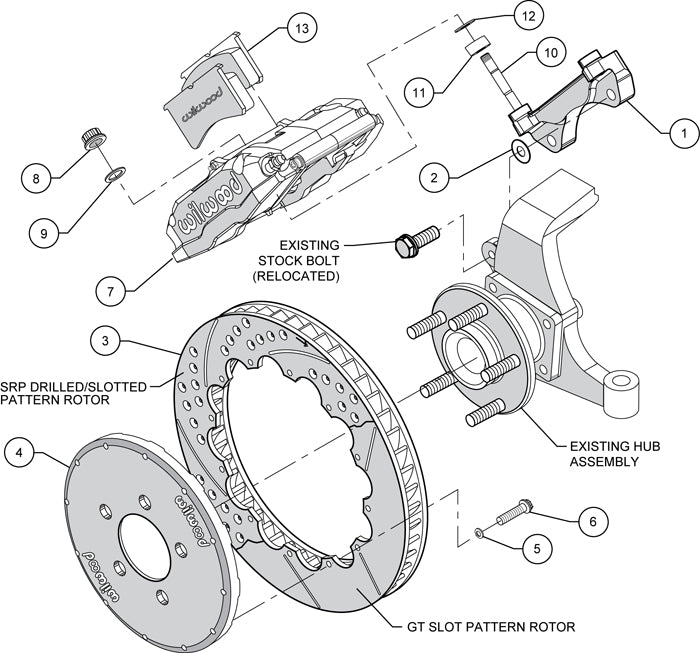

See the lists, the diagrams, & the assembly booklets below for a detail of the parts included.

Fits:

• 1998-2002 Chevrolet Camaro
• 1998-2002 Pontiac Firebird

Wilwood brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications.

For the Front, the unsurpassed braking capacity of the SL6 forged billet 6-piston caliper serves as the base of these Big Brake front kits. They are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big Brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades on show cars and high performance street/track machines.  Each kit is engineered specific for each vehicle to maintain full compatibility with the OE master cylinder output and factory ABS functions.

For the Rear, Billet Superlite 4R Four piston calipers are combined with BP-10 compound pads and 13" rotors in this series of big brake kits for custom high performance street and show machines. This series of specialized kits retains full use of the OE parking brake, master cylinder output, and ABS where used.

These kits are the perfect compliment wheel, tire, and suspension upgrades on all types of daily drivers, race vehicles, and ultra-styled show machines.

These Big Brake kits require at least 18" diameter wheels on the front and 17" diameter wheels on the rear.

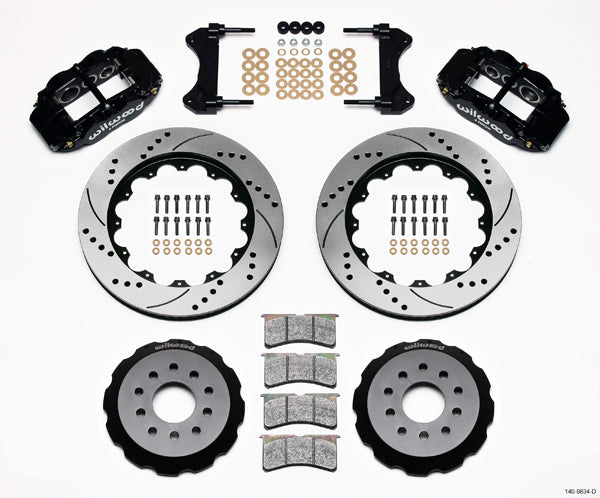

Front kit includes parts for both front wheels:

• Drilled & Slotted, 1.25" Thick x 14.00" O.D. Rotors
• Superlite 6 Piston Calipers - Black
• Caliper Mounting Brackets
• BP-10 Smart Compound Brake Pads
• Brake Hats
• All Hardware necessary to install the complete braking system on both front wheels

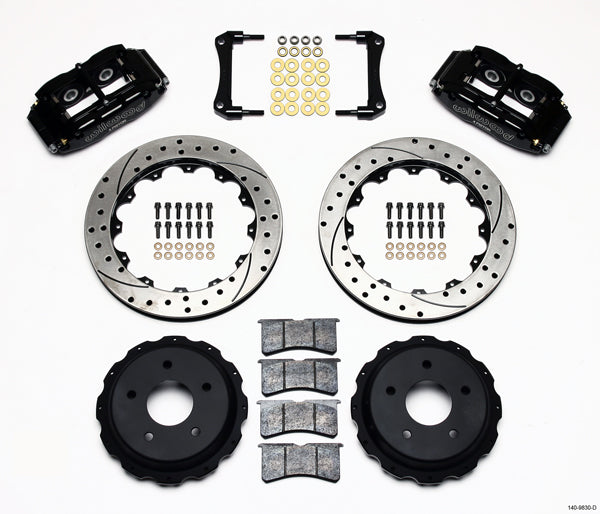

Rear kit includes parts for both rear wheels:

• Drilled & Slotted, 1.10" Thick x 12.90" O.D. Rotors
• Superlite 4 Piston Calipers - Black
• Caliper Mounting Brackets
• BP-10 Smart Compound Brake Pads
• Brake Hats
• All Hardware necessary to install the complete braking system on both rear wheels

Complete kit weighs approximately 116 lbs.

You can view and download the complete assembly instruction booklet for the Front Kit and the Rear Kit.
