64-74 GM FRONT DISC BRAKE KIT,14" DRILLED ROTORS,6 PISTON SUPERLITE BLACK CALIP.

64-74 GM FRONT DISC BRAKE KIT,14" DRILLED ROTORS,6 PISTON SUPERLITE BLACK CALIP.

WIL 140-9804-D

$2,259.99
$2,259.99
View full details

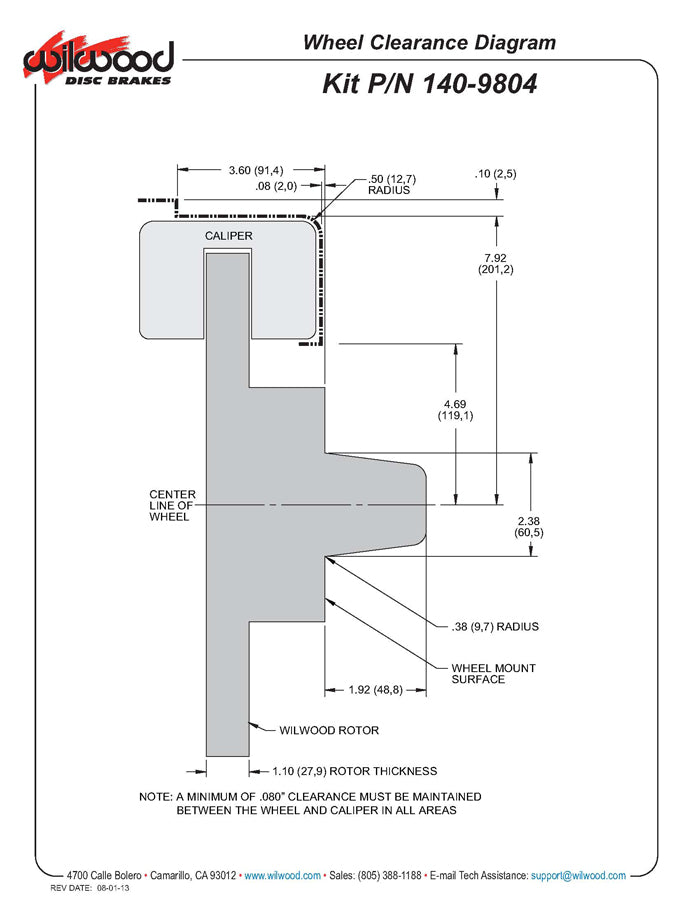

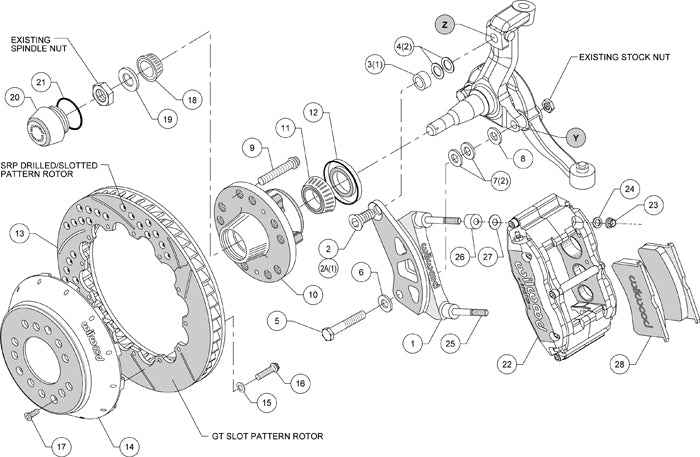

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • WILWOOD SUPERLITE 6 BIG BRAKE FRONT HUB & 14" DISC BRAKE KIT FOR:
    *CHEVROLET CAMARO & PONTIAC FIREBIRD:
    -1967-1969 WITH DISCS OR DRUM SPINDLES

    *CHEVY II:
    -1964-1966 WITH DRUM SPINDLES WITH MINOR MODIFICATIONS

    *CHEVROLET NOVA:
    -1967-1974 WITH DISCS OR DRUM SPINDLES

    *CHEVELLE, MONTE CARLO, MALIBU, & EL CAMINO:
    -1964-1966 WITH DRUM SPINDLES WITH MINOR MODIFICATIONS
    -1967-1972 WITH DISCS OR DRUM SPINDLES

    *OLDSMOBILE CUTLASS, F85 VISTA CRUISER, 4-4-2, & CALAIS:
    -1964-1966 WITH DRUM SPINDLES WITH MINOR MODIFICATIONS
    -1967-1972 WITH DISCS OR DRUM SPINDLES

    *PONTIAC GTO, LEMANS, GRAND AM, GRAND LEMANS, TEMPEST, & T37:
    -1964-1966 WITH DRUM SPINDLES WITH MINOR MODIFICATIONS
    -1967-1972 WITH DISCS OR DRUM SPINDLES

    *BUICK REGAL, CENTURY, LUXUS, SKYLARK, & SPECIAL:
    -1964-1966 WITH DRUM SPINDLES WITH MINOR MODIFICATIONS
    -1967-1972 WITH DISCS OR DRUM SPINDLES

  • FEATURING DRILLED & SLOTTED ROTORS
  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS
  • MOST KITS ARE EASILY INSTALLED WITH THE COMMON HAND TOOLS USED TO PERFORM ROUTINE BRAKE SERVICE
  • A FEW KITS DO REQUIRE MINOR MODIFICATIONS TO THE AXLE TO COMPLETE THE INSTALLATION
  • SL6R FORGED BILLET SIX-PISTON CALIPERS WITH LARGE DIAMETER ROTORS DELIVER THE ULTIMATE COMBINATION FOR BRAKING POWER & STYLE IN THIS GROUP OF KITS ENGINEERED FOR TRADITIONAL NON-ABS SPINDLES ON AMERICAN MUSCLE CARS & VINTAGE RODS

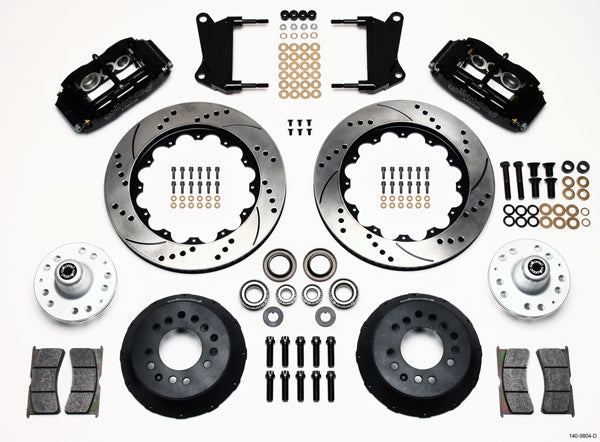

  • KIT INCLUDES:
    *DRILLED & SLOTTED, 1.10" THICK x 14.00" O.D. ROTORS,
    *BILLET NARROW SUPERLITE 6R CALIPERS - BLACK,
    *CALIPER MOUNTING BRACKETS,
    *BP-10 BRAKE PADS,
    *HUBS, *HATS, *BEARINGS, *SEALS, &
    *ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS
  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE

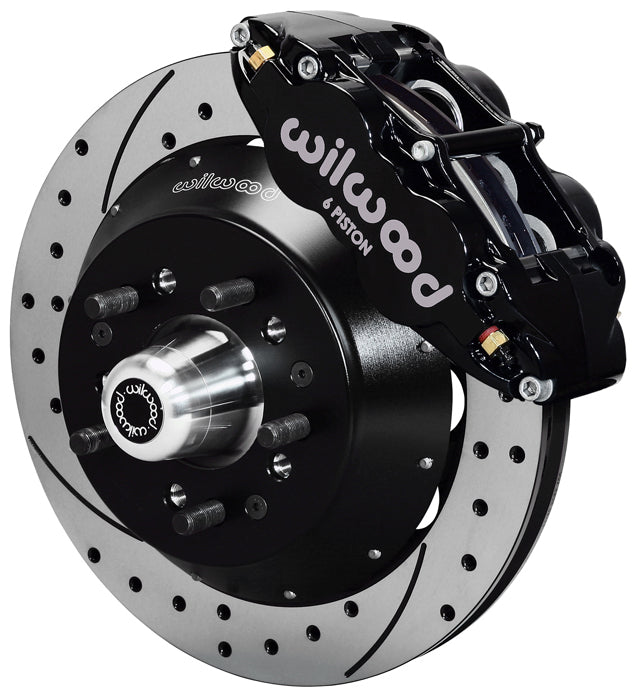

  • ONLY ONE SIDE SHOWN
    • Bolt-On Disc Brake Kits > Chevy/GM Kits > Chevelle, Malibu, M/C, El Camino Front Kits, 1964-1972 > Front Kits
