74-80 PINTO KIT,FRONT,12.90",DRILLED,RED

74-80 PINTO KIT,FRONT,12.90",DRILLED,RED

WIL 140-9801-DR

$2,069.99
$2,069.99
View full details

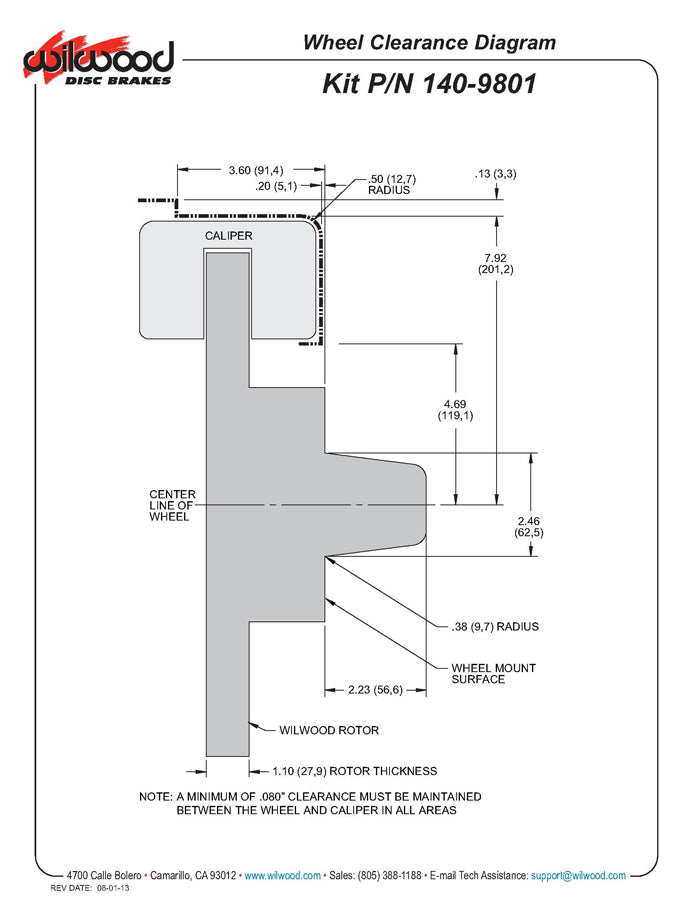

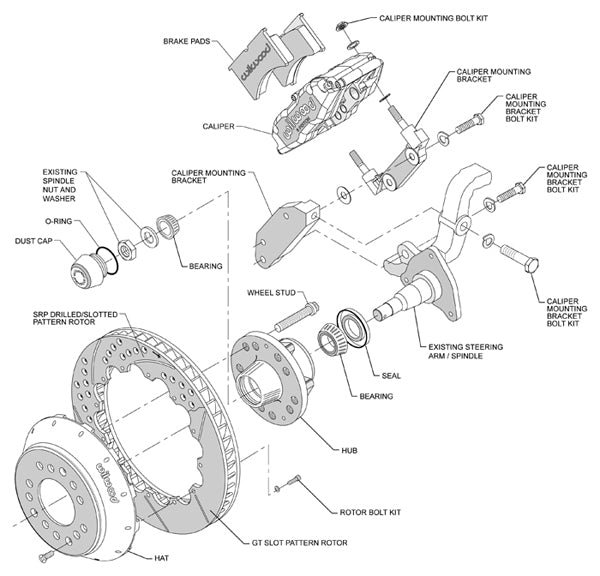

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • WILWOOD SUPERLITE 6 BIG BRAKE FRONT HUB & 12.90" DISC BRAKE KIT FOR:
    FORD:
    *1974-1980 PINTO WITH DISC BRAKE SPINDLES (FIVE LUG CONFIGURATION ONLY)
    *1974-1978 MUSTANG II WITH DISC BRAKE SPINDLES (FIVE LUG CONFIGURATION ONLY)
    MERCURY:
    *1975-1980 BOBCAT WITH DISC BRAKE SPINDLES (FIVE LUG CONFIGURATION ONLY)

  • FEATURING DRILLED & SLOTTED ROTORS AND RED CALIPERS
  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS
  • MOST KITS ARE EASILY INSTALLED WITH THE COMMON HAND TOOLS USED TO PERFORM ROUTINE BRAKE SERVICE
  • A FEW KITS DO REQUIRE MINOR MODIFICATIONS TO THE AXLE TO COMPLETE THE INSTALLATION
  • SL6R FORGED BILLET SIX-PISTON CALIPERS WITH LARGE DIAMETER ROTORS DELIVER THE ULTIMATE COMBINATION FOR BRAKING POWER & STYLE IN THIS GROUP OF KITS ENGINEERED FOR TRADITIONAL NON-ABS SPINDLES ON AMERICAN MUSCLE CARS & VINTAGE RODS

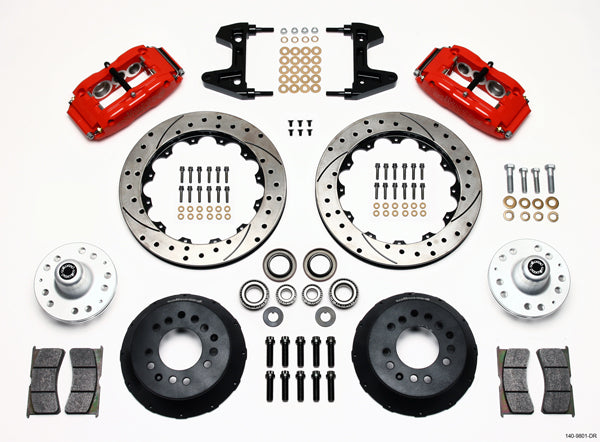

  • KIT INCLUDES:
    *DRILLED & SLOTTED, 1.10" THICK x 12.90" O.D. ROTORS,
    *BILLET NARROW SUPERLITE 6R CALIPERS - RED,
    *CALIPER MOUNTING BRACKETS,
    *BP-10 BRAKE PADS,
    *HUBS, *HATS, *BEARINGS, *SEALS, &
    *ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS
  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE

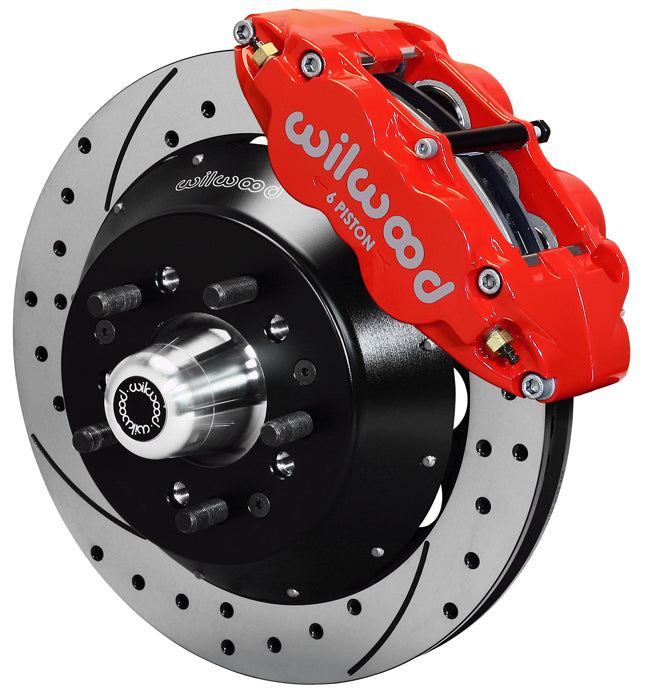

  • ONLY ONE SIDE SHOWN
    • Bolt-On Disc Brake Kits > Ford Kits > Pinto/Mustang II Front Kits, 1971-1980
