00-06 GM SUV FULL DISC BRAKE KIT,14" DRILLED ROTORS,BLACK CALIPERS

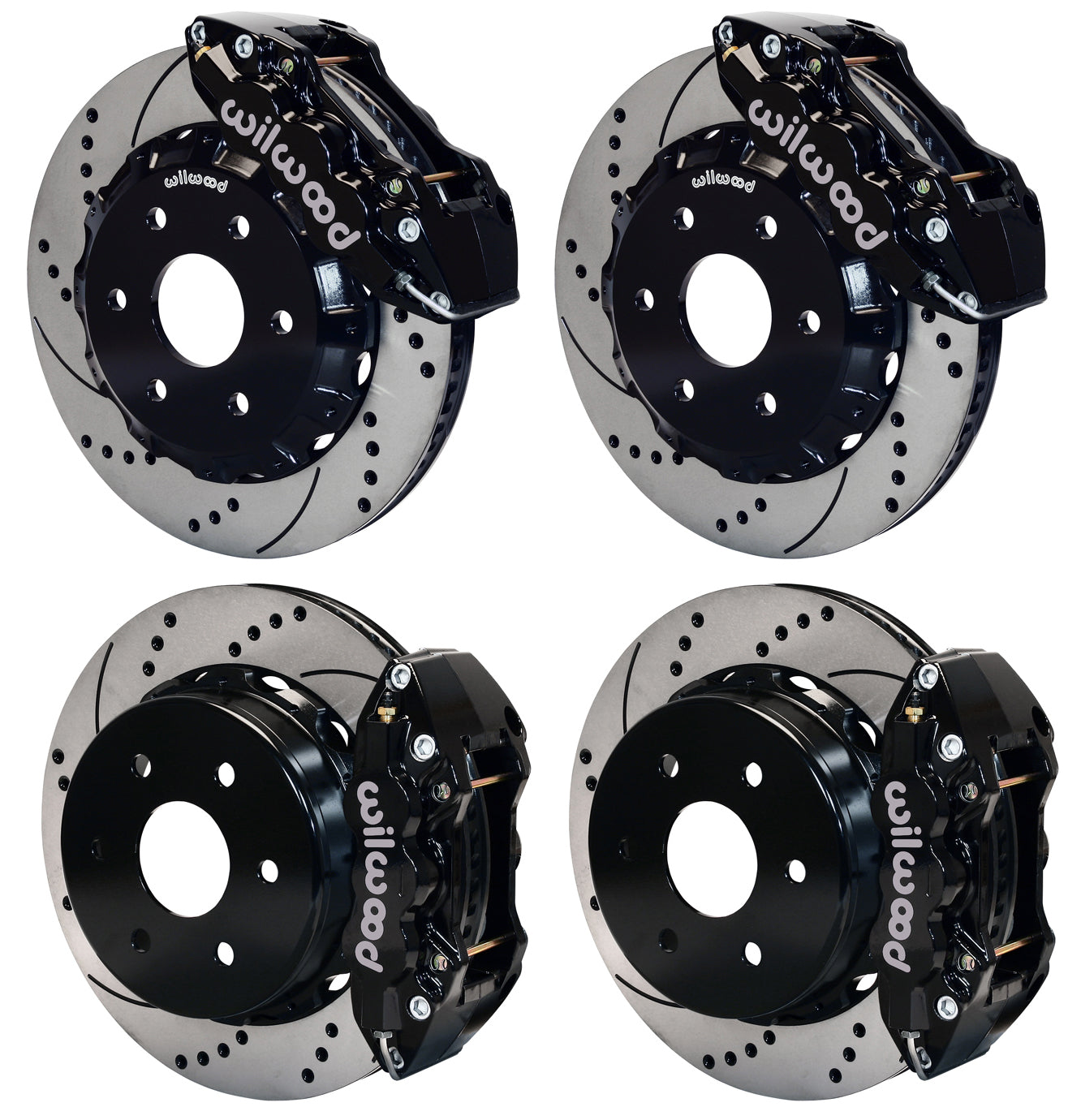

Brand New Wilwood Complete Premium Big Brake Front & Rear 14.25" Disc Brake Kit.

Complete Kit Includes:

• W6AR Bolt-On Front Hat & 14.25" Disc Brake Kit (Part #140-9789-D) for Both Front Wheels
• W4AR Bolt-On Rear Hat & 14.25" Disc Brake Kit (Part #140-9838-D) for Both Rear Wheels

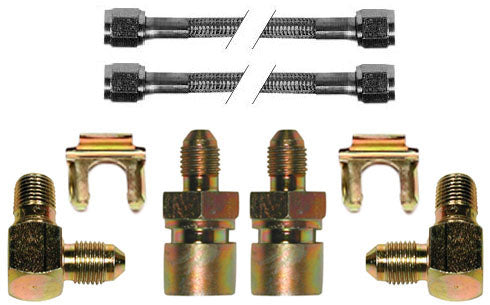

• Full Line Kit for the Front with 24" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings
• Full Line Kit for the Rear with 12" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings

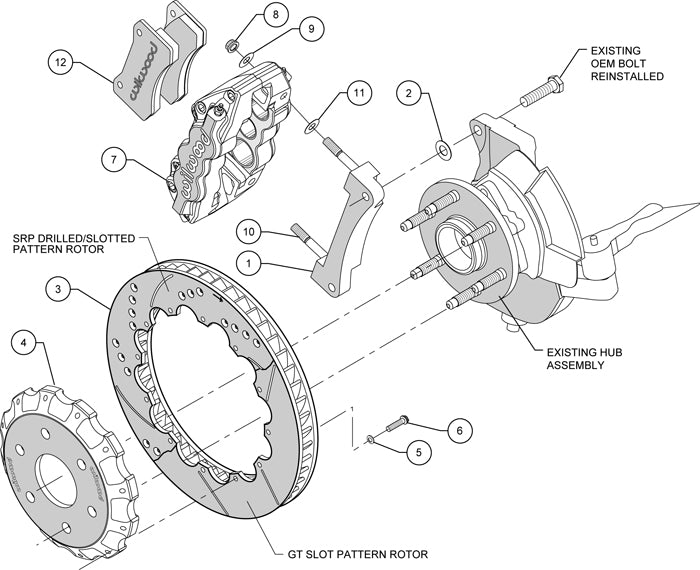

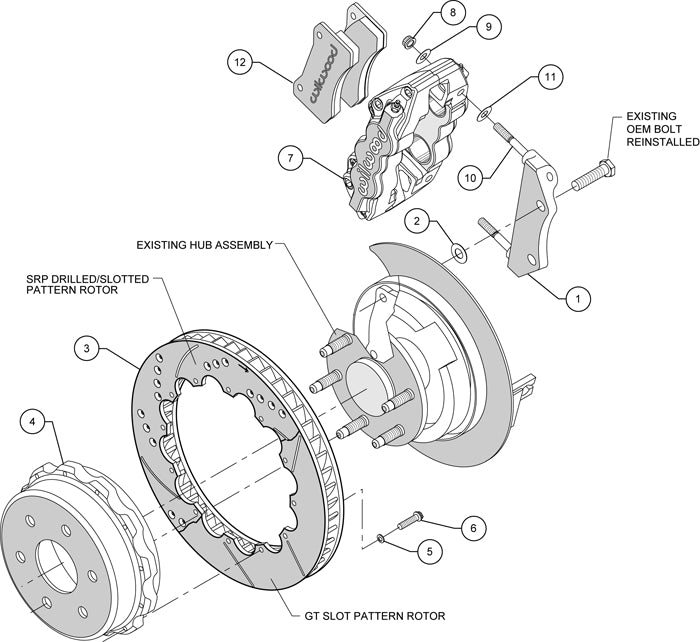

See the lists, the diagrams, & the assembly booklets below for a detail of the parts included.

Fits:

• Chevy Avalanche:
  • 2002-2006 Avalanche 1500, All 6 Lug
• Chevy Suburban:
  • 2000-2006 Suburban 1500, All 6 Lug with OE Rear Disc Brakes
• Chevy Tahoe:
  • 2000 Tahoe, New Style Frame, All 6 Lug with OE Rear Disc Brakes

  • 2001-2006 Tahoe, All 6 Lug with OE Rear Disc Brakes
• GMC Yukon:
  • 2000 Yukon, All 6 Lug with OE Rear Disc Brakes, except Denali

  • 2001-2006 Yukon, All 6 Lug with OE Rear Disc Brakes
• GMC Yukon XL:
  • 2000-2006 Yukon XL 1500, All 6 Lug with OE Rear Disc Brakes

Wilwood brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications.

For the Front, W6AR calipers were designed for the specific purpose of providing big capacity braking with large diameter rotors for heavy weight and extreme duty vehicles. For trucks and SUV’s, it provides big stopping power for towing, off-road, and enhanced braking with wheel and tire upgrades. Kits listed for specific vehicles are fully compatible with OE master cylinder output and ABS function. Direction staggered vane 14” rotors provide maximum cooling for sustained high heat durability.

For the Rear, W4AR Big Brake rear axle kits replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades. High capacity braking from the W4AR calipers, BP-10 compound pads, and oversized rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. Enhanced brake performance, increased durability, and high-tech style compliment big wheel, tire, and suspension upgrades on customized vehicles, tow rigs, and all others with increased brake requirements from high GVW.

Each kit is engineered specific for each vehicle.

These Big Brake kits require at least 18" diameter wheels.

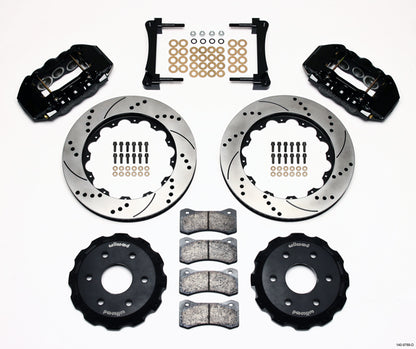

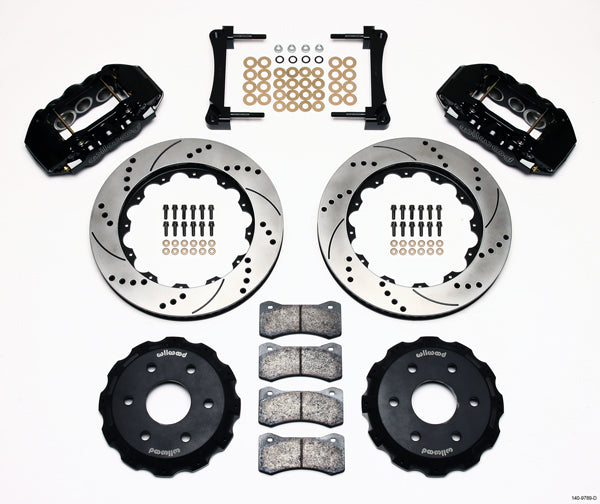

Front kit includes parts for both front wheels:

• Drilled & Slotted, 1.25" Thick x 14.25" O.D. Rotors
• W6AR Radial Mount Calipers - Black
• Caliper Mounting Brackets
• BP-10 Smart Compound Brake Pads
• Brake Hats
• All Hardware necessary to install the complete braking system on both front wheels

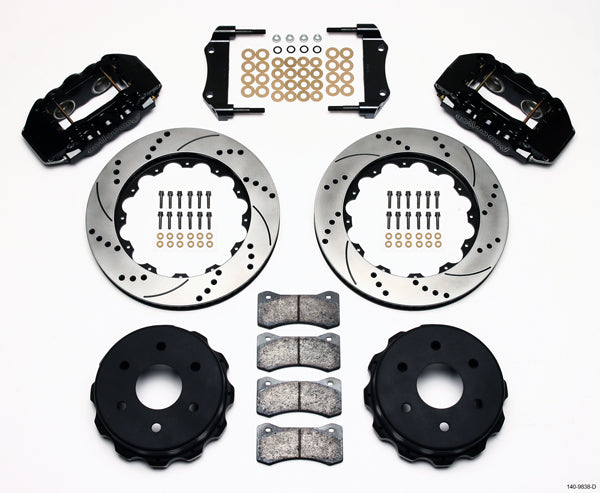

Rear kit includes parts for both rear wheels:

• Drilled & Slotted, 1.25" Thick x 14.25" O.D. Rotors
• W4AR Radial Mount Calipers - Black
• Caliper Mounting Brackets
• BP-10 Smart Compound Brake Pads
• Brake Hats
• All Hardware necessary to install the complete braking system on both rear wheels

You can view and download the complete assembly instruction booklet for the Front Kit and the Rear Kit.
