99-18 GM 1500 TRUCK/SUV,FRONT,W6AR 6 PISTON RED CALIPERS,14" ROTORS
99-18 GM 1500 TRUCK/SUV,FRONT,W6AR 6 PISTON RED CALIPERS,14" ROTORS
SKU:WIL 140-9789-R
BRAND NEW WILWOOD PREMIUM BIG BRAKE W6A BOLT-ON FRONT HAT & 14.25" DISC BRAKE KIT (PART #140-9789-R) FOR BOTH FRONT WHEELS.

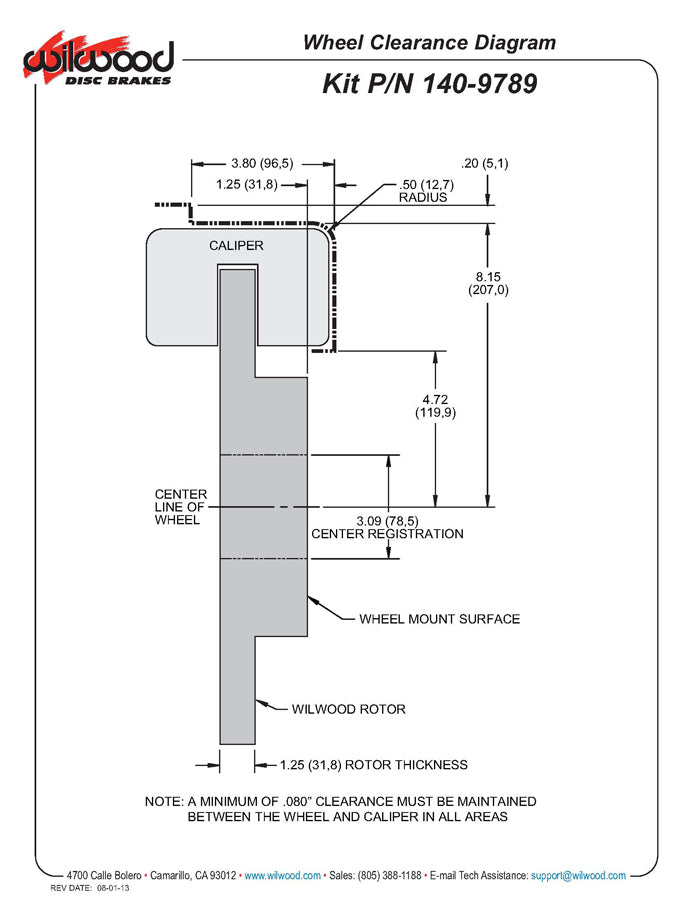

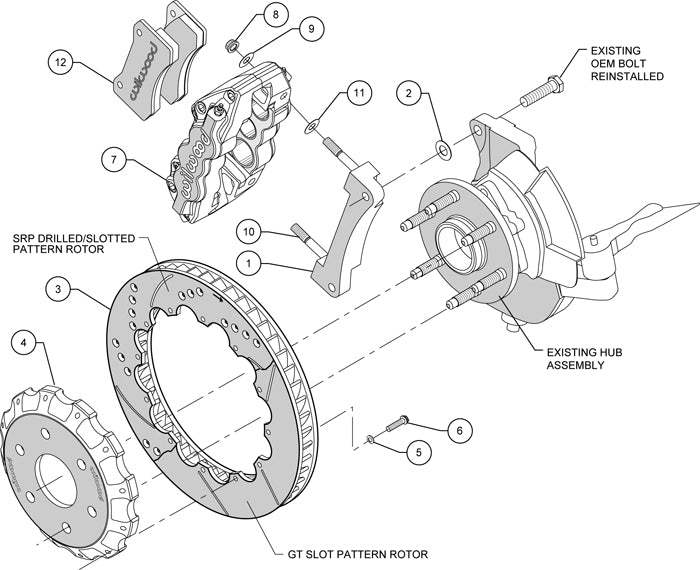

ONLY ONE SIDE PICTURED. SEE THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF THE PARTS INCLUDED.
FEATURES POWDER-COATED RED CALIPERS.
FITS:
-
CADILLAC:
- 2002-2011 ESCALADE, ALL 6 LUG
- 2007-2011 ESCALADE ESV, ALL 6 LUG
- 2002-2004 ESCALADE EXT, ALL 6 LUG
- 2007-2011 ESCALADE EXT, ALL 6 LUG
-
CHEVY:
- 2002-2006 AVALANCHE 1500, ALL 6 LUG
- 2007-2011 AVALANCHE, ALL 6 LUG
- 1999-2011 SILVERADO 1500 TRUCK, ALL 6 LUG
- 2000-2011 SUBURBAN 1500, ALL 6 LUG
- 2000 TAHOE, NEW STYLE FRAME, 6 LUG
- 2001-2011 TAHOE, ALL 6 LUG
-
GMC:
- 1999-2011 SIERRA 1500 TRUCK, ALL 6 LUG
- 2000 YUKON, ALL 6 LUG, EXCEPT DENALI
- 2001-2011 YUKON, ALL 6 LUG
- 2000-2011 YUKON XL 1500, ALL 6 LUG
WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.
W6AR CALIPERS WERE DESIGNED FOR THE SPECIFIC PURPOSE OF PROVIDING BIG CAPACITY BRAKING WITH LARGE DIAMETER ROTORS FOR HEAVY WEIGHT AND EXTREME DUTY VEHICLES. FOR TRUCKS AND SUVS, IT PROVIDES BIG STOPPING POWER FOR TOWING, OFF-ROAD, AND ENHANCED BRAKING WITH WHEEL AND TIRE UPGRADES. KITS LISTED FOR SPECIFIC VEHICLES ARE FULLY COMPATIBLE WITH OE MASTER CYLINDER OUTPUT AND ABS FUNCTION. DIRECTION STAGGERED VANE 14" ROTORS PROVIDE MAXIMUM COOLING FOR SUSTAINED HIGH HEAT DURABILITY.
THESE BIG BRAKE KITS REQUIRE AT LEAST 18" DIAMETER WHEELS.

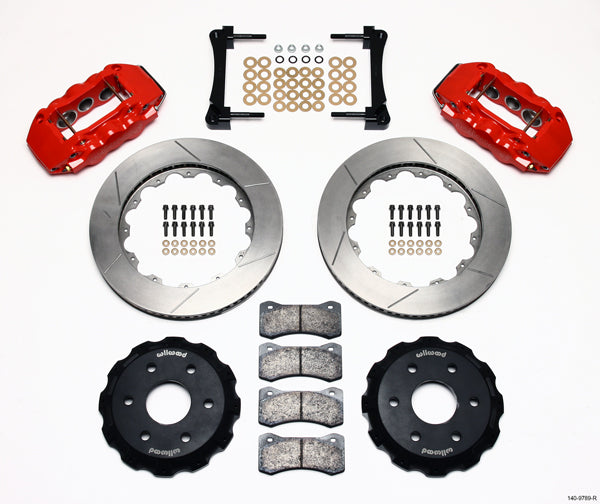

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:
- 1.25" THICK X 14.25" O.D. ROTORS
- W6A RADIAL MOUNT CALIPERS - RED
- CALIPER MOUNTING BRACKETS
- BP-10 SMART COMPOUND BRAKE PADS
- BRAKE HATS
- ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS
COMPLETE KIT WEIGHS APPROXIMATELY 77 LBS.
YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
