BIG FORD NEW KIT,2.50",REAR PB,12",STAGGERED,DRILLED

Brand New Wilwood Pro Series Bolt-On 12.19" Rear Kit with Parking Brake Kit for rear ends with Big Ford New Style Axle Flanges and Staggered Shocks (Part #140-9560-DR) for Both Rear Wheels.

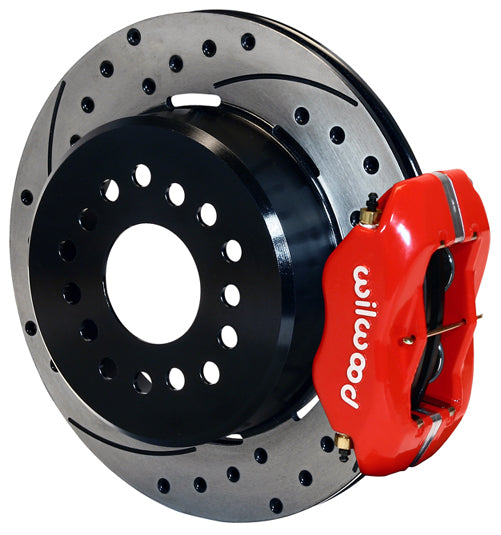

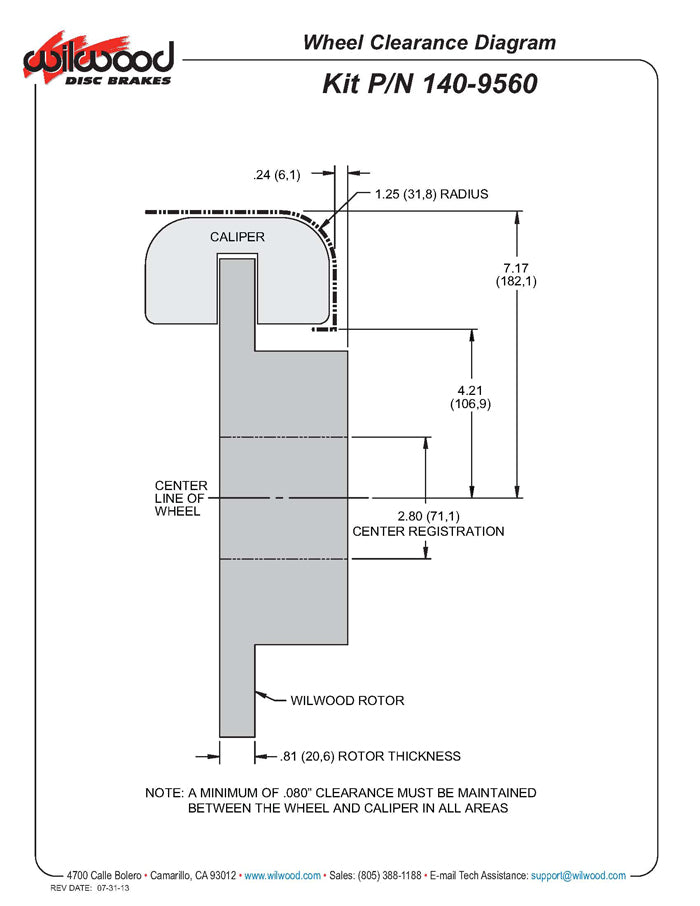

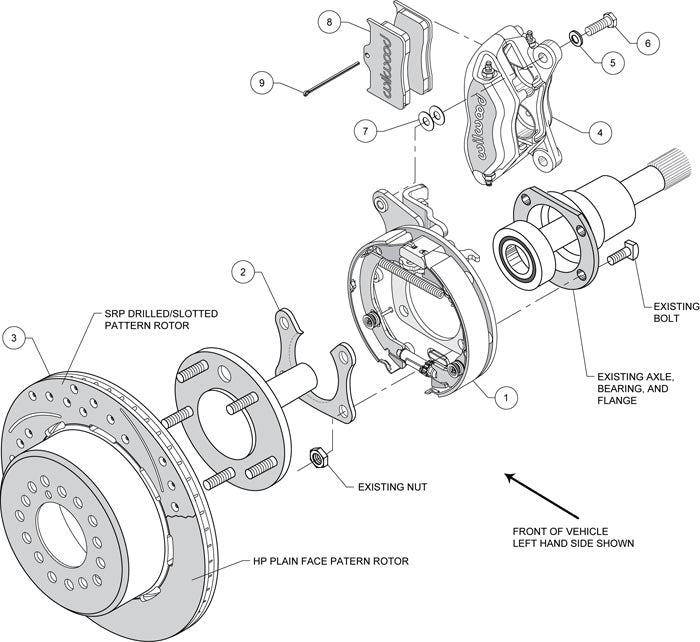

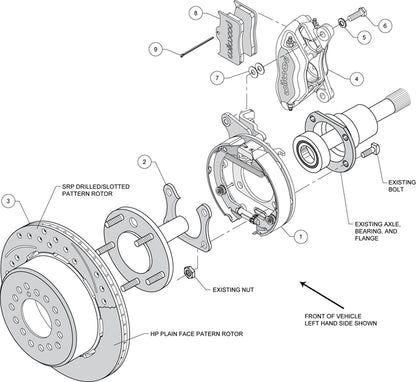

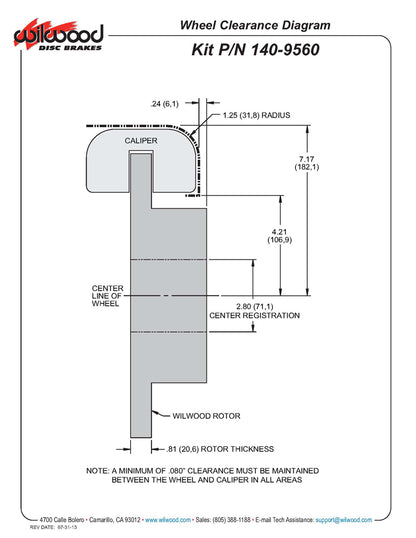

Only one side pictured.  See the list, the diagram, & the assembly booklet below for a detail of the parts included.

Fits:

• Rear ends with Big Ford New Style Axle Flanges (shown below) and a 2.50" Axle Flange Offset, and with Staggered Shocks***
• ***"Staggered Shock" applications have the Left side shock in back of the rear end housing and the Right side shock in front. In these applications, it's necessary to have this modified Left side brake kit, which mounts the caliper in front of the housing to avoid any clearance issues with the shock.***

Wilwood brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications.

These FDL Pro Series rear disc kits provide a complete solution for popular muscle car rear axles that require a parking brake.  Forged Billet Dynalite 4-Piston calipers, 12.19" o.d. one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines.  The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking.

These Big Brake kits require at least 16" diameter wheels.

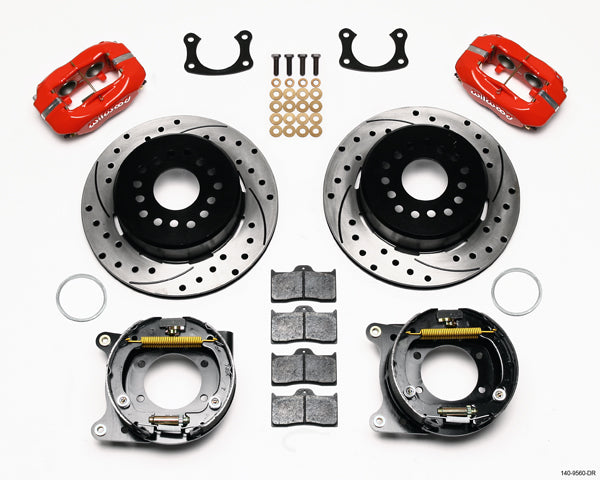

Kit includes parts for both rear wheels:

• Drilled & Slotted, .810" Thick x 12.19" O.D. Rotors
• Forged Dynalite 4 Piston Calipers - Red
• Drum Parking Brake Assemblies with Caliper Mounting Brackets
• BP-10 Smart Compound Brake Pads
• Brake Hats
• All bolts, washers, and shims necessary to install the complete braking system on both rear wheels

Complete kit weighs approximately 50 lbs.

You can view and download the complete assembly instruction booklet for this kit here.
