99-18 GM 1500 TRUCK/SUV W/1 PISTON OE,REAR,AERO4 BLACK CALIPERS,14.25" DRILLED

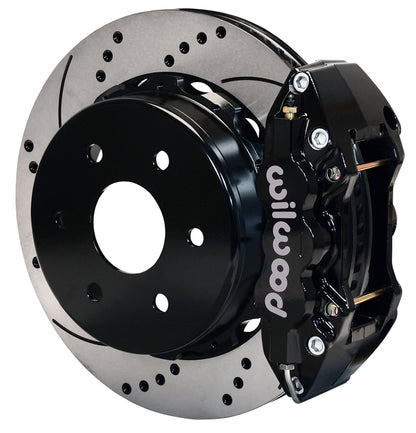

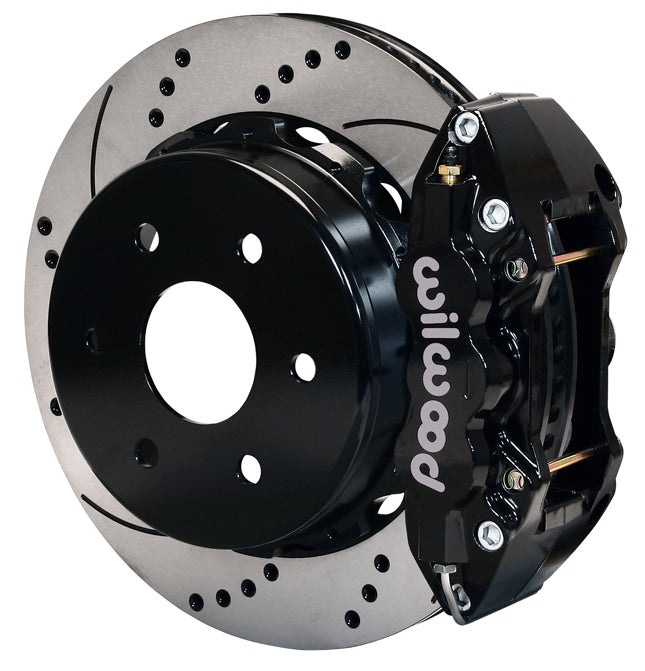

Brand New Wilwood AERO4 Big Brake Truck Rear Brake Kit Featuring 14.25" Drilled Rotors with Black Calipers For Both Rear Wheels (Part #140-9407-D).

AERO4 Big Brake rear axle kits replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades on late model trucks and SUV’s. High capacity braking from the AERO4 calipers, BP-10 compound pads, and oversized rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. Enhanced brake performance, increased durability, and high-tech style compliment big wheel, tire, and suspension upgrades on customized vehicles, tow rigs, and all others with increased brake requirements from high GVW.

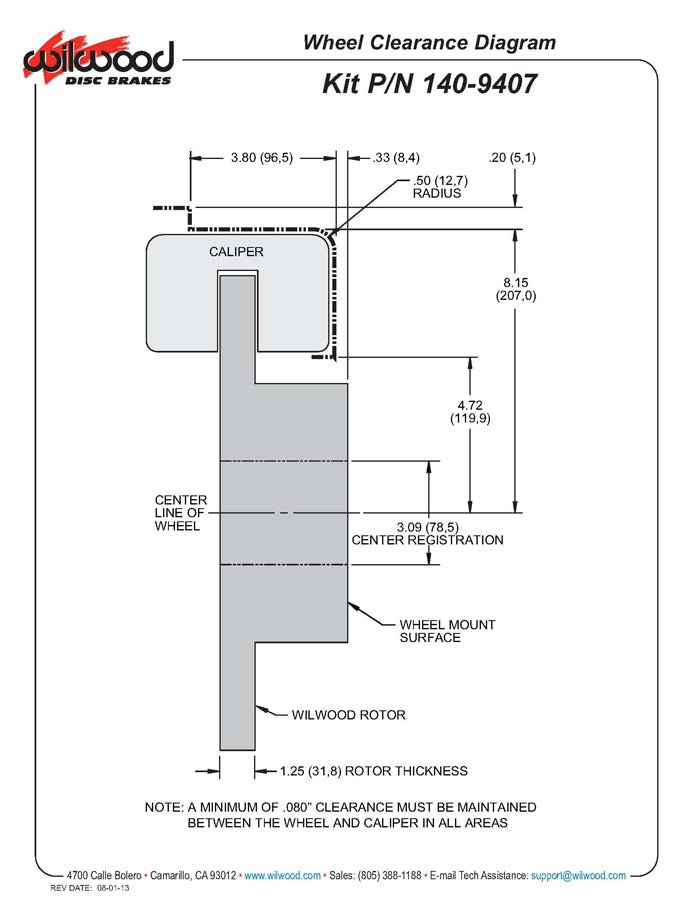

NOTE: This kit require at least 18" diameter wheels. Check wheel clearance diagram for proper fitment.

Compatible with:

• Cadillac:
  • 2006-2012 Escalade 6 Lug - 4 x 2

  • 2002-2005 Escalade 6 Lug - 4 x 2 w/ out 4 Wheel Steering

  • 2006-2013 Escalade 6 Lug - 4 x 4

  • 2002-2005 Escalade 6 Lug - 4 x 4 w/ out 4 Wheel Steering

  • 2007 Escalade 6 Lug - All

  • 2008 Escalade 6 Lug - All (w/ finger clip front pad)

  • 2008 Escalade 6 Lug - All (w/o finger clip front pad)

  • 2009 Escalade 6 Lug -All

  • 2014-2020 Escalade Base

  • 2014-2020 Escalade Luxury

  • 2014-2020 Escalade Platinum

  • 2014-2017 Escalade Premium

  • 2018-2020 Escalade Premium Luxury

  • 2010-2012 Escalade ESV 6 Lug - 4 x 2

  • 2010-2013 Escalade ESV 6 Lug - 4 x 4

  • 2007 Escalade ESV 6 Lug - All

  • 2008 Escalade ESV 6 Lug - All (w/ finger clip front pad)

  • 2009 Escalade ESV 6 Lug -All

  • 2008 Escalade ESV 6 Lug -All (w/o finger clip front pad)

  • 2014-2020 Escalade ESV Base

  • 2014-2020 Escalade ESV Luxury

  • 2014-2020 Escalade ESV Platinum

  • 2014-2017 Escalade ESV Premium

  • 2018-2020 Escalade ESV Premium Luxury

  • 2010-2012 Escalade EXT 6 Lug - 4 x 2

  • 2002-2004 Escalade EXT 6 Lug - 4 x 2 w/ out 4 Wheel Steering

  • 2010-2013 Escalade EXT 6 Lug - 4 x 4

  • 2002-2004 Escalade EXT 6 Lug - 4 x 4 w/ out 4 Wheel Steering

  • 2007 Escalade EXT 6 Lug - All

  • 2008 Escalade EXT 6 Lug - All (w/ finger clip front pad)

  • 2008 Escalade EXT 6 Lug - All (w/o finger clip front pad)

  • 2009 Escalade EXT 6 Lug -All

• Chevrolet:
  • 2010-2013 Avalanche 6 Lug - 4 x 2

  • 2008 Avalanche 6 Lug - 4 x 2 (w/ finger clip front pad)

  • 2008 Avalanche 6 Lug - 4 x 2 (w/o finger clip front pad)

  • 2010-2013 Avalanche 6 Lug - 4 x 4

  • 2008 Avalanche 6 Lug - 4 x 4 (w/ finger clip front pad)

  • 2008 Avalanche 6 Lug - 4 x 4 (w/o finger clip front pad)

  • 2007 Avalanche 6 Lug - All

  • 2009 Avalanche 6 Lug -All

  • 2017-2018 Silverado 1500 Custom

  • 2015-2018 Silverado 1500 High Country

  • 2016-2018 Silverado 1500 LS

  • 2015-2018 Silverado 1500 LT

  • 2015-2018 Silverado 1500 LTZ

  • 2016-2018 Silverado 1500 SSV

  • 2015-2018 Silverado 1500 WT

  • 2019 Silverado 1500 LD LT

  • 2019 Silverado 1500 LD WT

  • 2002-2006 Silverado 1500 Pickup 6 Lug - 4 x 2 w/ OE Single Piston Rear Brake

  • 2002-2006 Silverado 1500 Pickup 6 Lug - 4 x 4 w/ OE Single Piston Rear Brake

  • 2014 Silverado 1500 Pickup 6 Lug - All

  • 2008-2010 Silverado 1500 Pickup 6 Lug - All w/ Disc Rear, except Police Package

  • 1999-2001 Silverado 1500 Pickup 6 Lug - All w/ OE Single Piston Rear Brake

  • 2011-2013 Silverado 1500 Pickup 6 Lug - All w/ Rear Disc Brake

  • 2007 Silverado 1500 Pickup 6 Lug - Classic Style w/ OE Single Piston Rear

  • 2007 Silverado 1500 Pickup 6 Lug - New Style w/ Disc Rear

  • 2008-2010 Silverado 1500 Pickup 6 Lug - Police Package w/ Disc Rear

  • 2000 Silverado 1500 Pickup All w/ OE Single Piston Rear Brake

  • 2015-2020 Suburban LS

  • 2015-2020 Suburban LT

  • 2015-2016 Suburban LTZ

  • 2017-2020 Suburban Premier

  • 2009-2013 Suburban 1500 6 Lug - 4 x 2

  • 2008 Suburban 1500 6 Lug - 4 x 2 (w/ finger clip front pad)

  • 2008 Suburban 1500 6 Lug - 4 x 2 (w/o finger clip front pad)

  • 2009-2013 Suburban 1500 6 Lug - 4 x 4

  • 2008 Suburban 1500 6 Lug - 4 x 4 (w/ finger clip front pad)

  • 2008 Suburban 1500 6 Lug - 4 x 4 (w/o finger clip front pad)

  • 2007 Suburban 1500 6 Lug - All

  • 2014 Suburban 1500 LS

  • 2014 Suburban 1500 LT

  • 2014 Suburban 1500 LTZ

  • 2009-2013 Tahoe 6 Lug - 4 x 2 All w/ Rear Disc Brake

  • 2009-2013 Tahoe 6 Lug - 4 x 4 All w/ Rear Disc Brake

  • 2008 Tahoe 6 Lug - All except Police (w/o finger clip front pad)

  • 2007 Tahoe 6 Lug - All except Police

  • 2008 Tahoe 6 Lug - All including Police (w/ finger clip front pad)

  • 2001 Tahoe 6 Lug - All w/ OE Single Piston Rear Brake

  • 2007 Tahoe 6 Lug - Police package

  • 2008 Tahoe 6 Lug - Police package (w/o finger clip front pad)

  • 2014-2020 Tahoe LS

  • 2014-2020 Tahoe LT

  • 2014-2016 Tahoe LTZ

  • 2016-2020 Tahoe PPV

  • 2017-2020 Tahoe Premier

  • 2016-2020 Tahoe SSV

• GMC:

  • 2015-2018 Sierra 1500 Base

  • 2015-2018 Sierra 1500 Denali

  • 2015-2018 Sierra 1500 SLE

  • 2015-2018 Sierra 1500SLT

  • 2019 Sierra 1500 Limited Base

  • 2019 Sierra 1500 Limited SLE

  • 2002-2006 Sierra 1500 Pickup 6 Lug - 4 x 2 w/ OE Single Piston Rear Brake

  • 2002-2006 Sierra 1500 Pickup 6 Lug - 4 x 4 w/ OE Single Piston Rear Brake

  • 2014 Sierra 1500 Pickup 6 Lug - All

  • 2008-2010 Sierra 1500 Pickup 6 Lug - All w/ Disc Rear, except Police Package

  • 1999-2001 Sierra 1500 Pickup 6 Lug - All w/ OE Single Piston Rear Brake

  • 2011-2013 Sierra 1500 Pickup 6 Lug - All w/ Rear Disc Brake

  • 2007 Sierra 1500 Pickup 6 Lug - Classic Style w/ OE 2 Piston Rear

  • 2007 Sierra 1500 Pickup 6 Lug - Classic Style w/ OE Single Piston Rear

  • 2007 Sierra 1500 Pickup 6 Lug - New Style w/ Disc Rear

  • 2008-2010 Sierra 1500 Pickup 6 Lug - Police Package w/ Disc Rear

  • 2000 Sierra 1500 Pickup All w/ OE Single Piston Rear Brake

  • 2009-2012 Yukon 6 Lug - 4 x 2

  • 2008 Yukon 6 Lug - 4 x 2 (w/ finger clip front pad)

  • 2008 Yukon 6 Lug - 4 x 2 (w/o finger clip front pad)

  • 2002 Yukon 6 Lug - 4 x 2 w/ OE Single Piston Rear Brake

  • 2009-2013 Yukon 6 Lug - 4 x 4

  • 2008 Yukon 6 Lug - 4 x 4 (w/ finger clip front pad)

  • 2008 Yukon 6 Lug - 4 x 4 (w/o finger clip front pad)

  • 2002 Yukon 6 Lug - 4 x 4 w/ OE Single Piston Rear Brake

  • 2007 Yukon 6 Lug - All

  • 2001 Yukon 6 Lug - All w/ OE Single Piston Rear Brake

  • 2014-2020 Yukon Denali

  • 2014-2020 Yukon SLE

  • 2014-2020 Yukon SLT

  • 2015-2020 Yukon XL Denali

  • 2015-2020 Yukon XL SLE

  • 2015-2020 Yukon XL SLT

  • 2009-2012 Yukon XL 1500 6 Lug - 4 x 2

  • 2008 Yukon XL 1500 6 Lug - 4 x 2 (w/ finger clip front pad)

  • 2008 Yukon XL 1500 6 Lug - 4 x 2 (w/o finger clip front pad)

  • 2009-2013 Yukon XL 1500 6 Lug - 4 x 4

  • 2008 Yukon XL 1500 6 Lug - 4 x 4 (w/ finger clip front pad)

  • 2008 Yukon XL 1500 6 Lug - 4 x 4 (w/o finger clip front pad)

  • 2007 Yukon XL 1500 6 Lug - All

  • 2014 Yukon XL 1500 Denali

  • 2014 Yukon XL 1500 SLE

  • 2014 Yukon XL 1500 SLT

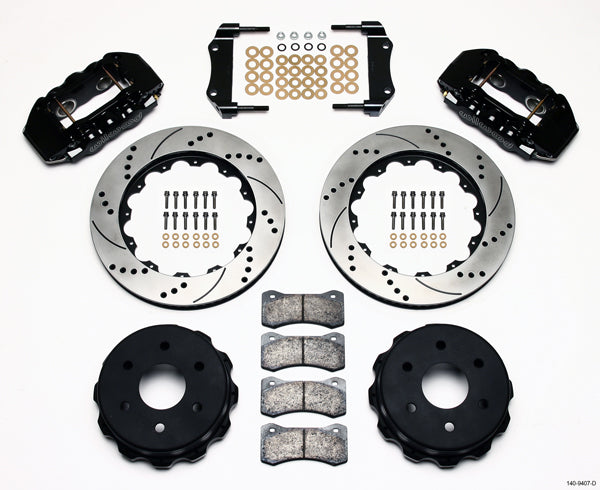

Kit includes:

• 4 Piston AERO4 Calipers

• BP-20 Compound Brake Pads

• 1.25" Thick x 14.25" O.D. Rotors

• All brackets, bolts, washers, and nuts necessary to install the kit.


Complete kit weighs approximately 89 lbs.

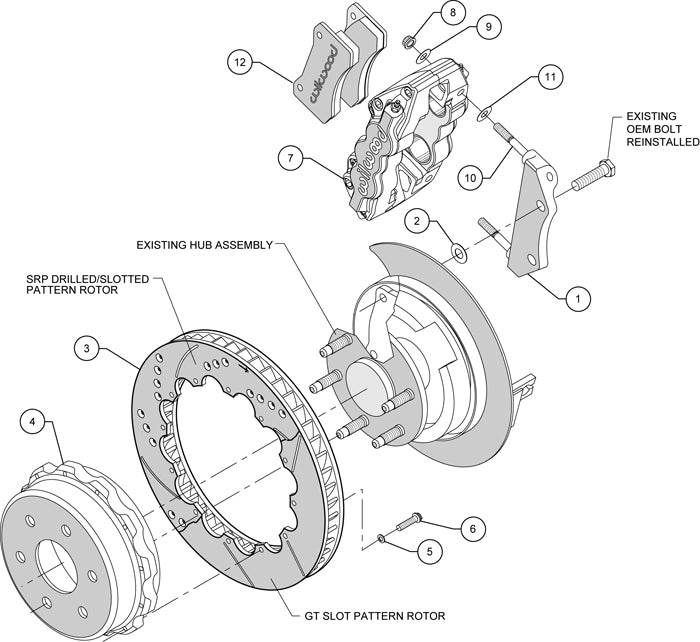

You can view and download the assembly/instruction booklet here.
