99-11 GM 2500/3500 TRUCK/SUV W/4.63" CENTER,REAR,TC6R RED CALIPERS,16" DRILLED

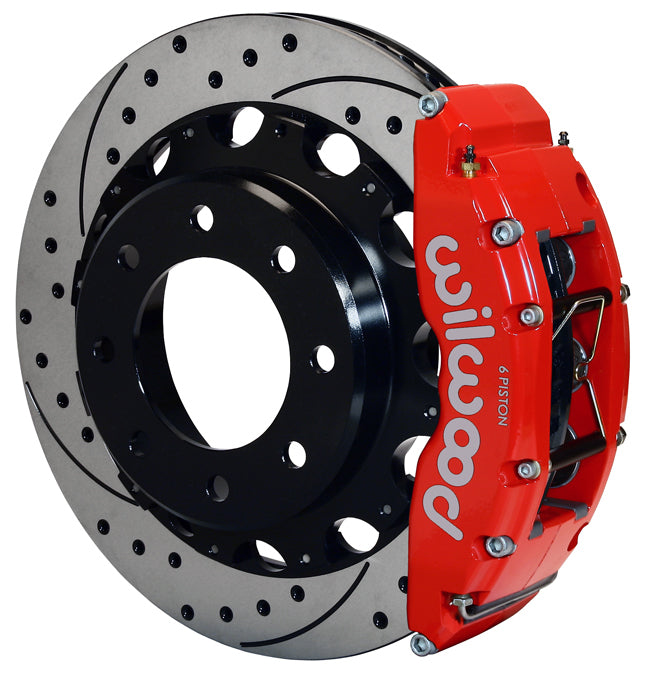

Brand New Wilwood Premium Big Brake TC6R Bolt-On Rear Hat & Disc Brake Kit Featuring 16" Drilled Rotors with Red Calipers For Both Rear Wheels (Part #140-9405-DR).

Wilwood brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications.

TC6R calipers are purpose-built to provide unsurpassed braking capacity on Trucks and SUV’s using 20” and larger wheels and tires. Combining the high clamping efficiency of the TC6R caliper with 16” diameter directional vane rotors and high friction BP-10 compound brake pads, TC6R kits provide the braking power necessary to control the higher rotating weight of ultra-sized wheels and tires, especially with high GVW vehicles and vehicles used for towing. TC6R kits are engineered application-specific to be fully compatible with the OE master cylinder output and retain full function of the ABS system.

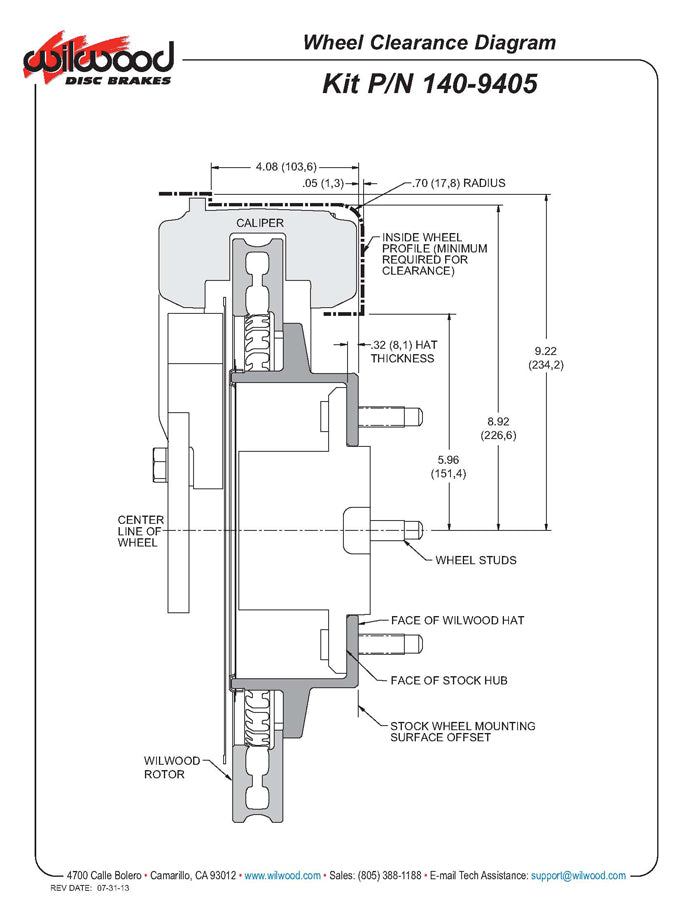

NOTE: These Big Brake kits require at least 20" diameter wheels. The center hole of the hats in this kit is 4.63" to fit over the center register on the axle (shown in the diagram as the circle in the middle of the wheel studs).  With the exception of the Hummer, these vehicles either had a 4.63" or 4.84" center register.  It is very important to measure that to get the correct kit.  We also have the kits for the 4.84" available here.

Fits:

• Hummer:
  • 2003-2009 H2 All 8 Lug
• Chevy:
  • 2002-2006 Avalanche 2500 All 8 Lug with a Center Register on the Axles of 4.63"
  • 2001-2006 Silverado 1500HD All 8 Lug with a Center Register on the Axles of 4.63"
  • 1999-2004 Silverado 2500 All 8 Lug with a Center Register on the Axles of 4.63"
  • 2010 Silverado 2500 All 8 Lug with a Center Register on the Axles of 4.63"
  • 2001-2006 Silverado 2500HD All 8 Lug with a Center Register on the Axles of 4.63"
  • 2000 4x4 Suburban 2500 8 Lug with a Center Register on the Axles of 4.63"
  • 2001-2007 Suburban 2500 All 8 Lug with a Center Register on the Axles of 4.63"
  • 2008-2009 4x4 Suburban 2500 8 Lug with a Center Register on the Axles of 4.63"
  • 2010 Suburban 2500 All 8 Lug with a Center Register on the Axles of 4.63"
• GMC:
  • 2001-2006 Sierra 1500HD All 8 Lug with a Center Register on the Axles of 4.63"
  • 1999-2004 Sierra 2500 All 8 Lug with a Center Register on the Axles of 4.63"
  • 2010 Sierra 2500 All 8 Lug with a Center Register on the Axles of 4.63"
  • 2001-2006 Sierra 2500HD All 8 Lug with a Center Register on the Axles of 4.63"

  • 2000 4x4 Yukon XL 2500 8 Lug with a Center Register on the Axles of 4.63"
  • 2001-2007 Yukon XL 2500 All 8 Lug with a Center Register on the Axles of 4.63"
  • 2008-2009 4x4 Yukon XL 2500 8 Lug with a Center Register on the Axles of 4.63"
  • 2010 Yukon XL 2500 All 8 Lug with a Center Register on the Axles of 4.63"

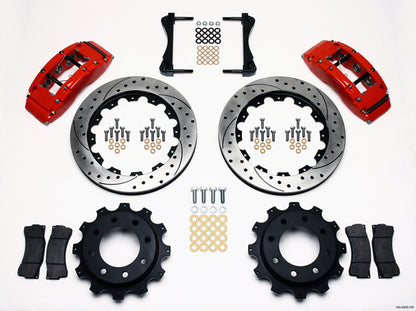

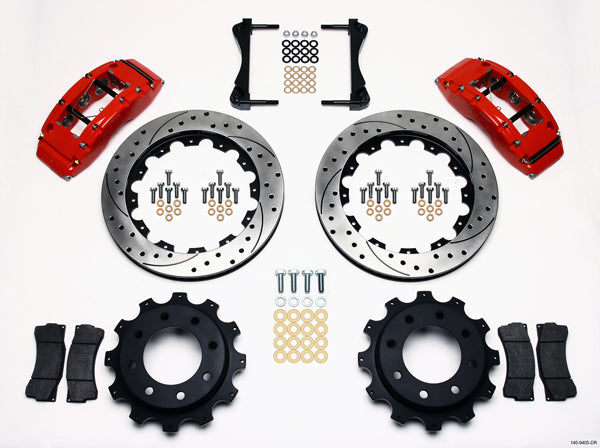

Kit includes parts for both rear wheels:

• 1.38" Thick x 16.00" O.D. Rotors
• TC6R Radial Mount Calipers
• Caliper Mounting Brackets
• BP-10 Smart Compound Brake Pads
• Brake Hats
• All Hardware necessary to install the complete braking system on both rear wheels

Complete kit weighs approximately 113 lbs.

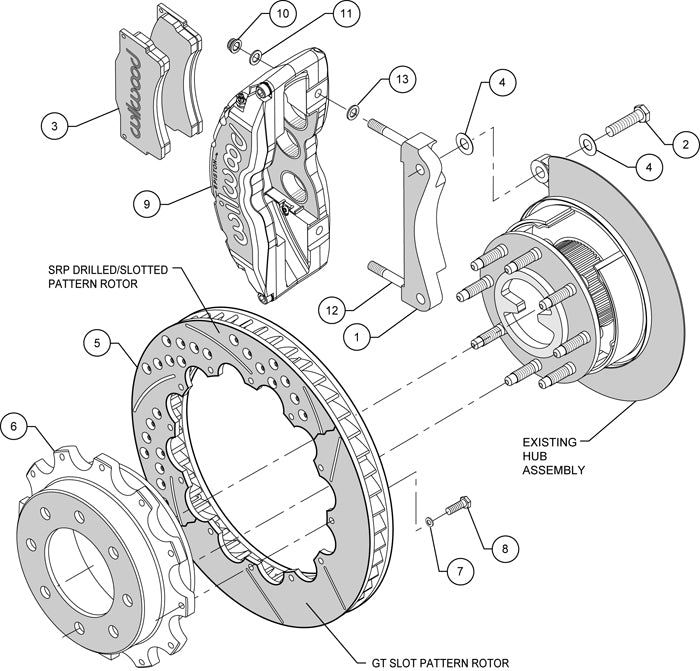

You can view and download the complete assembly instruction booklet for this kit here.
