GM C-KIT,2.75",REAR PB,STAGGERED SHOCKS,12" ROTORS,BLACK CALIPERS

GM C-KIT,2.75",REAR PB,STAGGERED SHOCKS,12" ROTORS,BLACK CALIPERS

SKU:WIL 140-9315-B

Regular price $999.99
Regular price Sale price $999.99
View full details

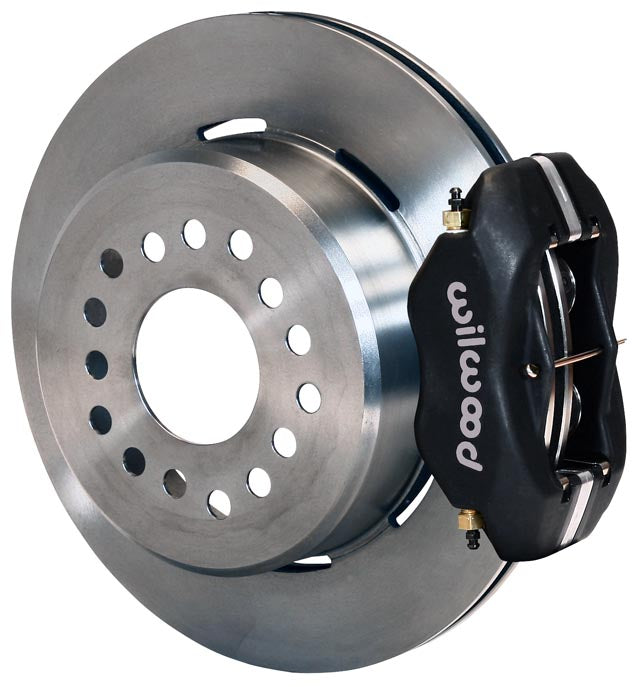

Brand New Wilwood Forged Dynalite Rear Parking Brake Kit Featuring 12.88" Solid Rotors with Black Calipers For Both Rear Wheels (Part #140-9213).

This group of FDL Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.88” one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

NOTE: This kit require at least 15" diameter wheels. Check wheel clearance diagram for proper fitment. Axle offset is 2.75-2.81". For OE C-Clip axles only. Does not support Special End or C-Clip Eliminator modifications. Hats drilled for 7/16", 1/2" & 12mm studs. Kit designed for staggered shock mount rear ends: R/H caliper is rear mount, L/H caliper is front mount.

Compatible with:

  • 12 Bolt Chevy & Factory C-Clip Rear End with 3.072"x2.404"x2.652" Mounting Pattern & 2.81" Axle Offset with Staggered Shocks (See Diagram)
  • Staggered Shocks have the Left side shock in back of the rear end housing and the Right side shock in front. In these applications, it's necessary to have this modified Left side brake kit, which mounts the caliper in front of the housing to avoid any clearance issues with the shock. This was commonly found on many 1967-1969 Chevy Camaro's and Pontiac Firebird's.

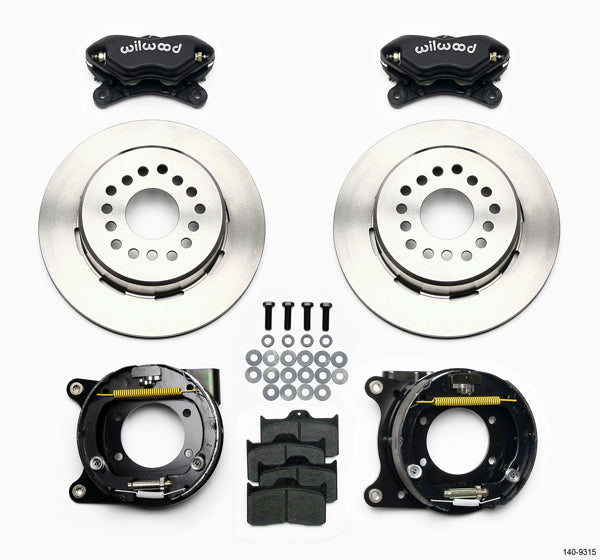

Kit includes:

  • 4 Piston Forged Dynalite Calipers
  • BP-10 Compound Brake Pads
  • 1.10" Thick x 12.88" O.D. Rotors
  • Drum Parking Brake Assemblies
  • Rotor Hat
  • All brackets, bolts, washers, and nuts necessary to install the kit.

Complete kit weighs approximately 51 lbs.

You can view and download the assembly/instruction booklet here.
