MITSUBISHI EVO VII,VIII,IX,REAR,DPR,13"

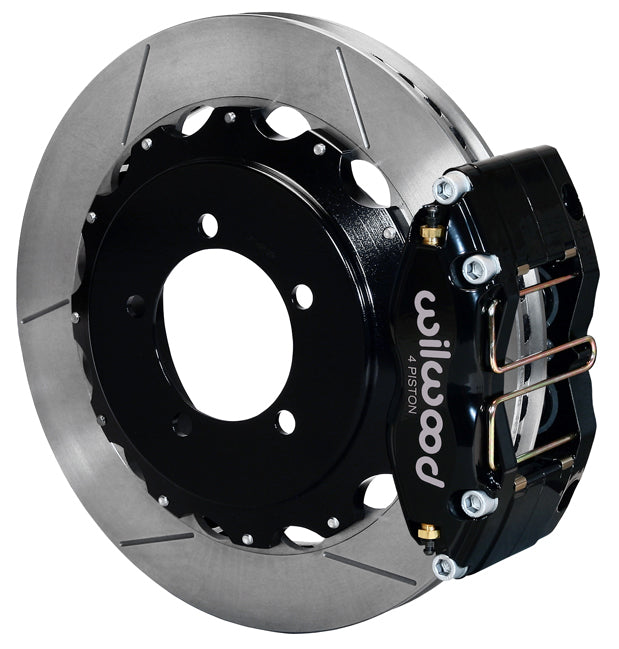

Brand New Wilwood Dynapro Radial Rear Brake Kit For OE Parking Brake Featuring 12.88" Slotted Rotors with Black Calipers For Both Rear Wheels (Part #140-9286).

Forged billet DynaPro four piston calipers and high performance BP-10 compound pads generate high clamping power with firm pedal response for this group of specialized rear axle brake kits. These kits retain full function of the OE parking brake and provide complimentary performance and style with front big brake upgrades. Caliper piston sizes are selected to provide balanced rear bias ratios using the output from the OE master cylinder. Rear rotor and hat combinations are engineered specific to each vehicle to provide brake performance upgrades and precise fit with the mounting of the DynaPro calipers.

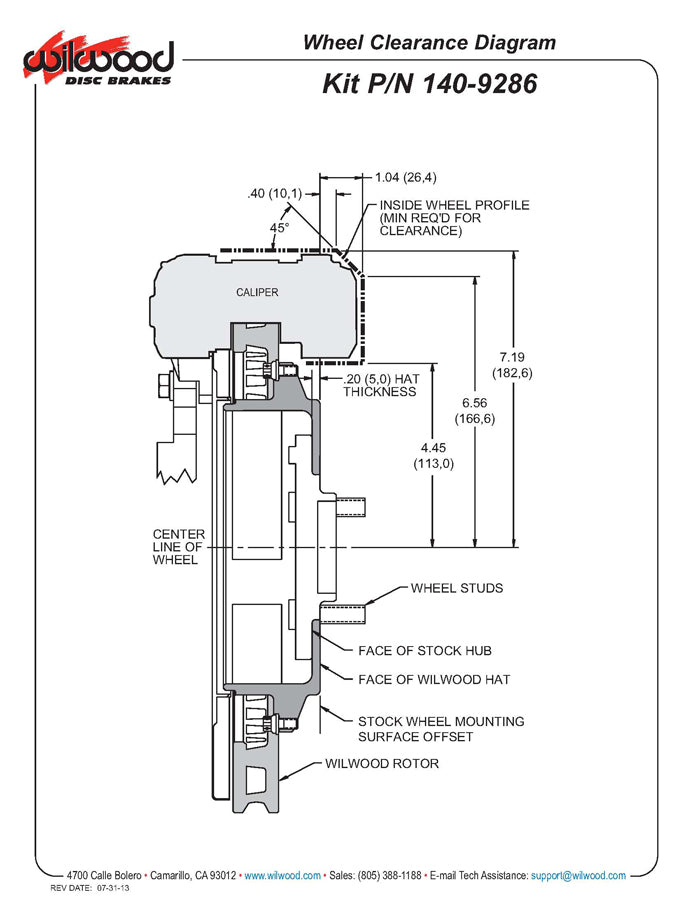

NOTE: This kit require at least 17" diameter wheels. Check wheel clearance diagram for proper fitment.

Compatible with:

• Mitsubishi:
  • 2006 Lancer Evolution (EVO IX)

  • 2001 Lancer Evolution (EVO VII)

  • 2003-2005 Lancer Evolution (EVO VIII)

  • 2006 Lancer Evolution MR (EVO IX)

  • 2005 Lancer Evolution MR (EVO VIII)

  • 2006 Lancer Evolution RS (EVO IX)

  • 2005 Lancer Evolution RS (EVO VIII)

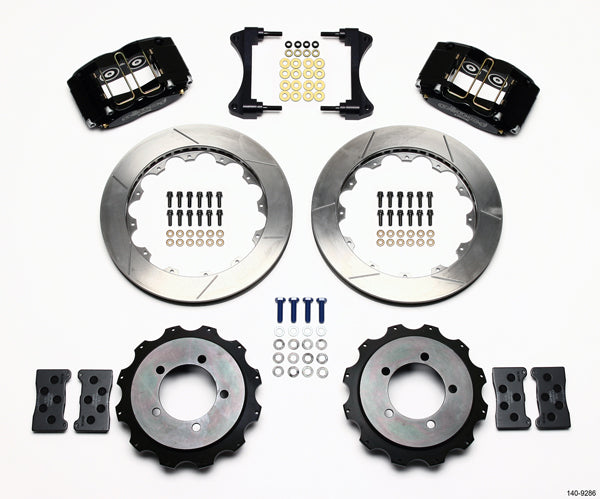

Kit includes:

• 4 Piston Dynapro Dust Seal Radial Mount Calipers

• BP-10 Compound Brake Pads

• 1.10" Thick x 12.88" O.D. Rotors

• Parking Brake Hat
• All brackets, bolts, washers, and nuts necessary to install the kit.


Complete kit weighs approximately 59 lbs.

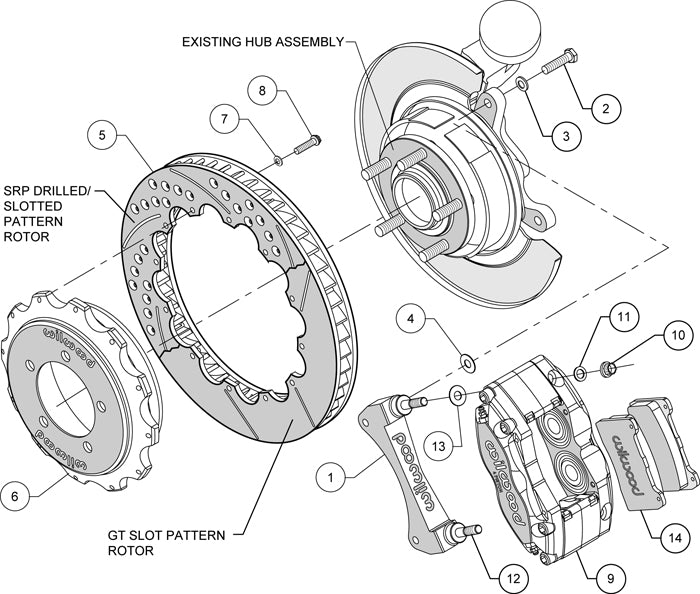

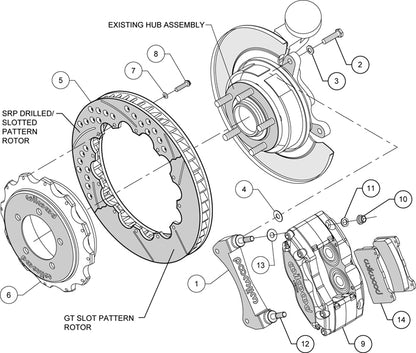

You can view and download the assembly/instruction booklet here.
