MITSUBISHI EVO VII,VIII,IX,FRONT,13",RED

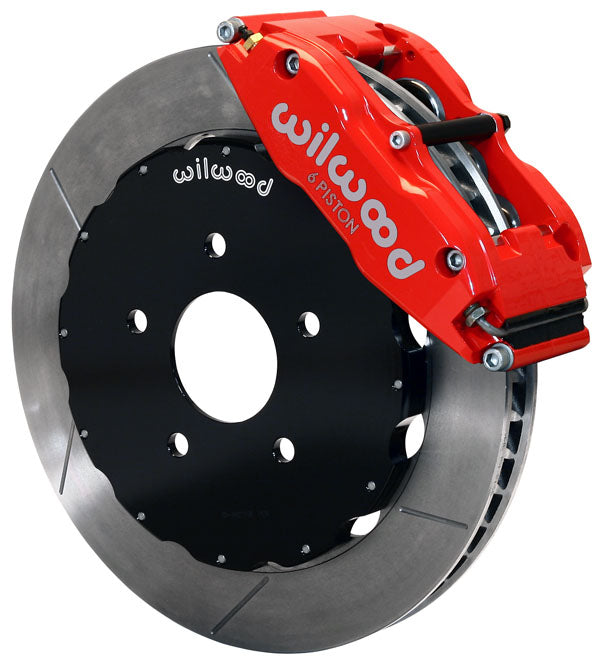

Brand New Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kit Featuring 13.06" Slotted Rotors with Red Calipers For Both Front Wheels (Part #140-9284-R).

The unsurpassed braking capacity of the Forged Narrow Superlite 6R six-piston caliper serves as the base of this group of 13" big rotor kits for these popular late model vehicles. FNSL6R kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades on show cars and high performance street/track machines. Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application.

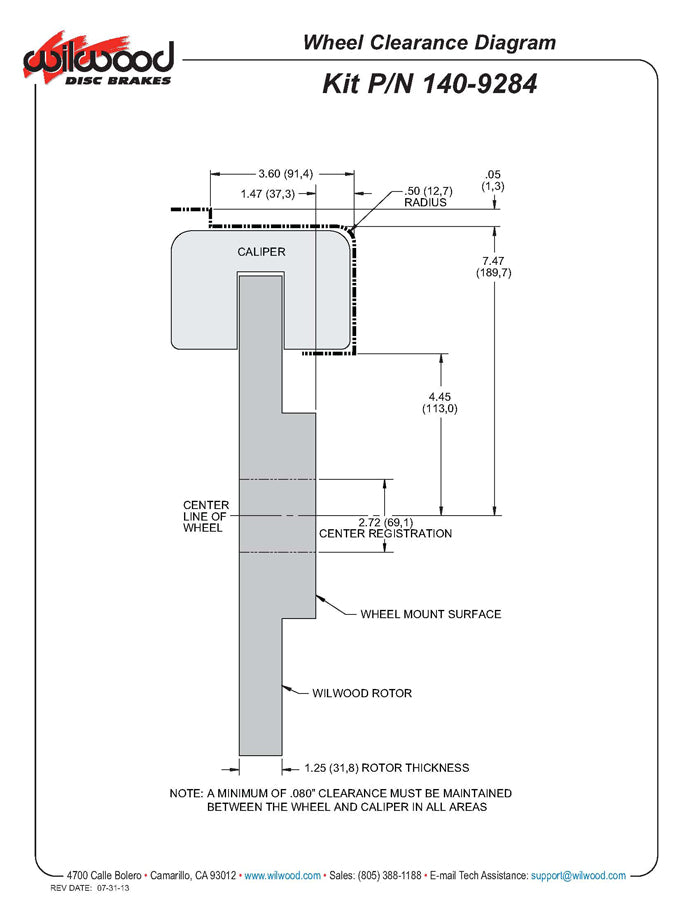

NOTE: This kit require at least 17" diameter wheels. Check wheel clearance diagram for proper fitment.

Compatible with:

• Mitsubishi:
  • 2006 Lancer Evolution (EVO IX)

  • 2001 Lancer Evolution (EVO VII)

  • 2003-2005 Lancer Evolution (EVO VIII)

  • 2006 Lancer Evolution MR (EVO IX)

  • 2005 Lancer Evolution MR (EVO VIII)

  • 2006 Lancer Evolution RS (EVO IX)

  • 2005 Lancer Evolution RS (EVO VIII)

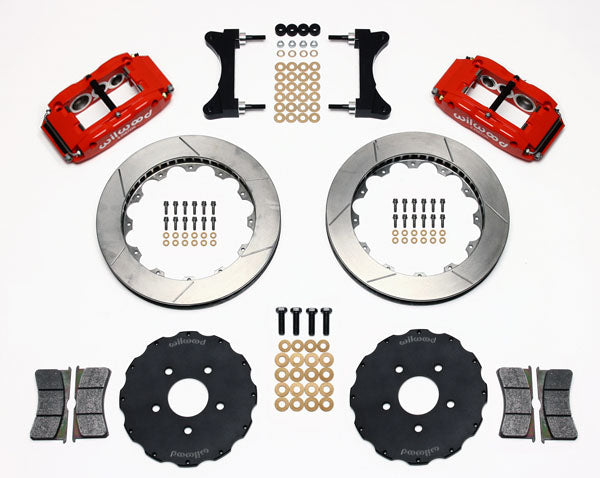

Kit includes:

• 6 Piston Forged Superlite Calipers

• BP-10 Compound Brake Pads

• 1.25" Thick x 13.06" O.D. Rotors

• Rotor Hat
• All brackets, bolts, washers, and nuts necessary to install the kit.


Complete kit weighs approximately 56 lbs.

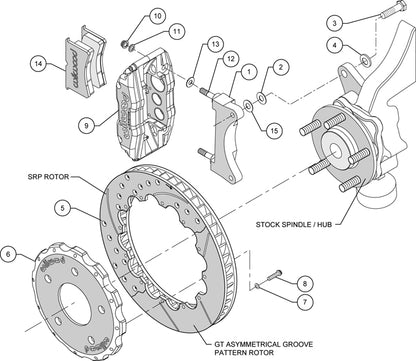

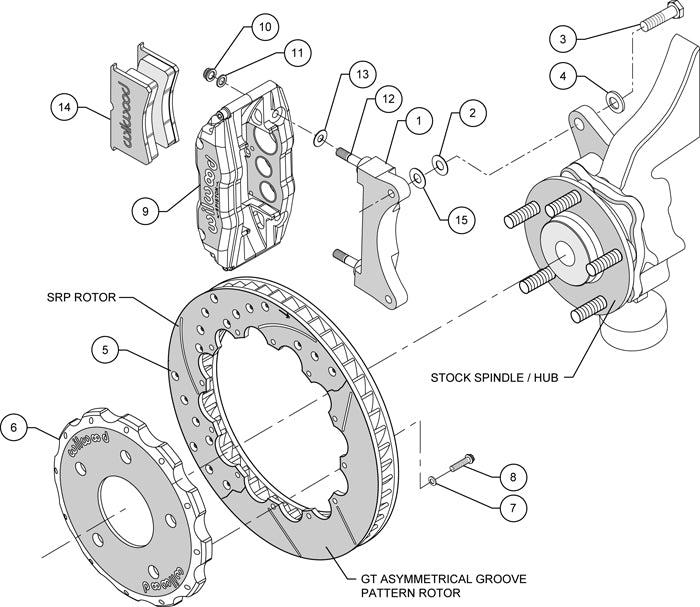

You can view and download the assembly/instruction booklet here.
