FORD 8.8" KIT,2.50",REAR PB,SL4R,13",DRILLED

FORD 8.8" KIT,2.50",REAR PB,SL4R,13",DRILLED

WIL 140-9223-D

$1,949.99
$1,949.99
View full details

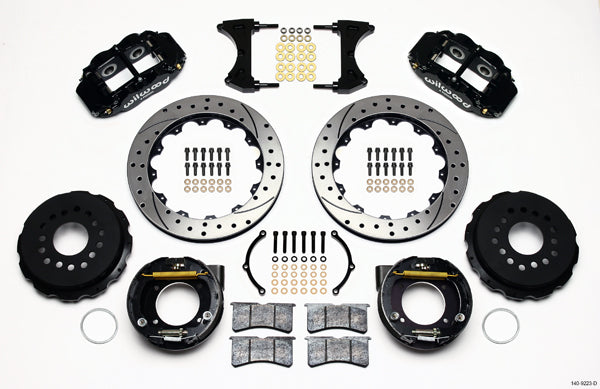

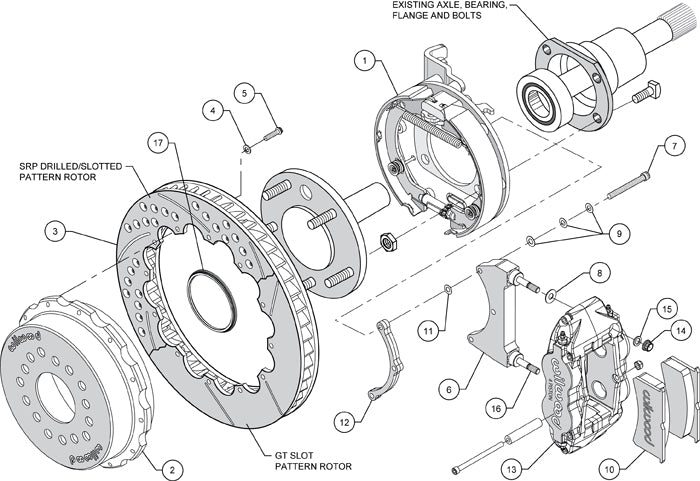

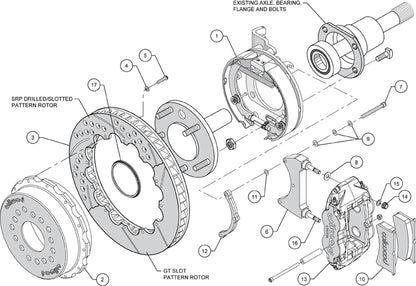

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • WILWOOD BOLT-ON REAR PARKING BRAKE DISC BRAKE KIT FOR FORD 8.8" REAR ENDS & WITH A 2.50" FLANGE OFFSET (SEE DIAGRAMS BELOW)
  • FEATURING DRILLED ROTORS & BLACK CALIPERS
  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS
  • MOST KITS ARE EASILY INSTALLED WITH THE COMMON HAND TOOLS USED TO PERFORM ROUTINE BRAKE SERVICE
  • A FEW KITS DO REQUIRE MINOR MODIFICATIONS TO THE AXLE TO COMPLETE THE INSTALLATION
  • KIT INCLUDES:
    *DRILLED, 1.10" THICK x 12.90" O.D. ROTORS,
    *SUPERLITE 4 PISTON CALIPERS - BLACK,
    *CALIPER MOUNTING BRACKETS,
    *DRUM PARKING BRAKE ASSEMBLIES,
    *BP-10 BRAKE PADS,
    *BRAKE HATS, &
    *ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH REAR WHEELS
  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE



    • Click Picture
    For Larger View




    Click Picture
    For Larger View

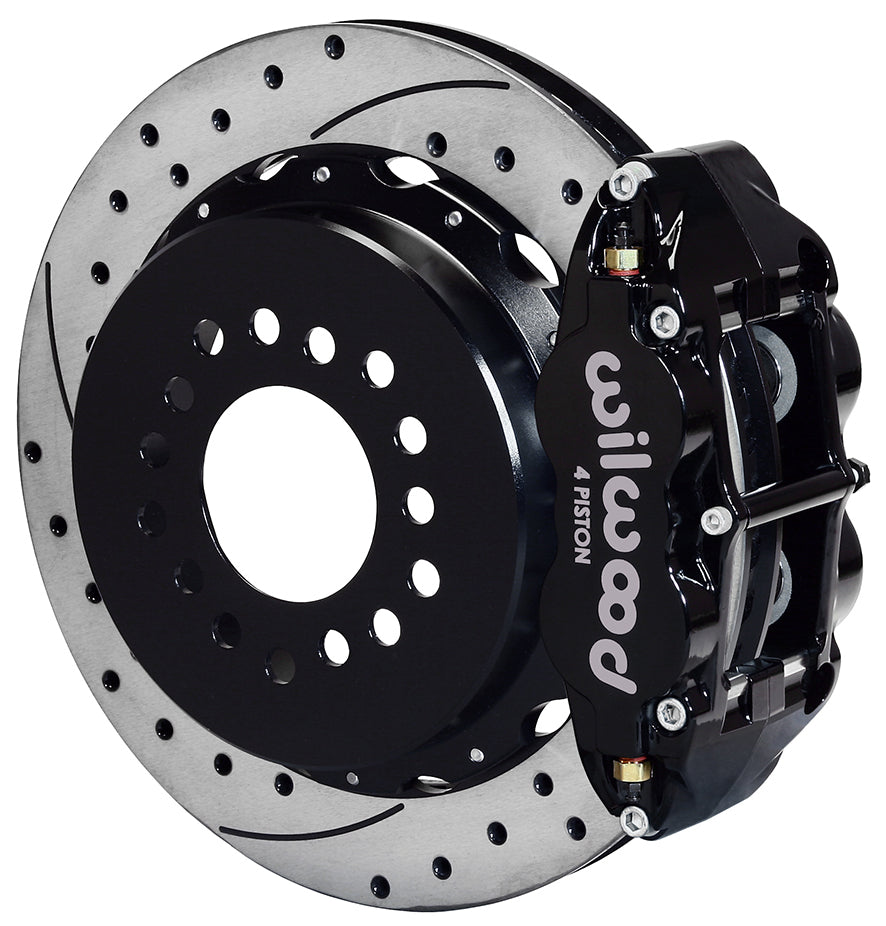

  • ONLY ONE SIDE SHOWN
    • Bolt-On Disc Brake Kits > Ford Kits > Rear Kits, Ford 8.8" Flange
