GM C-KIT,2.81",REAR PB,SL4R,12.88,POLISH

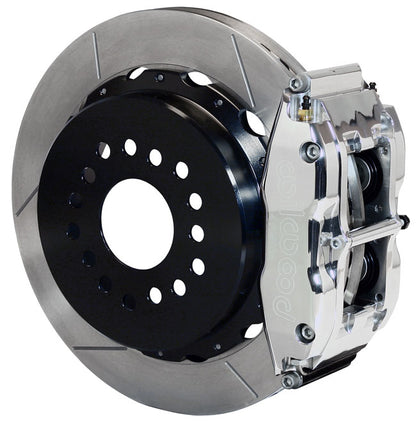

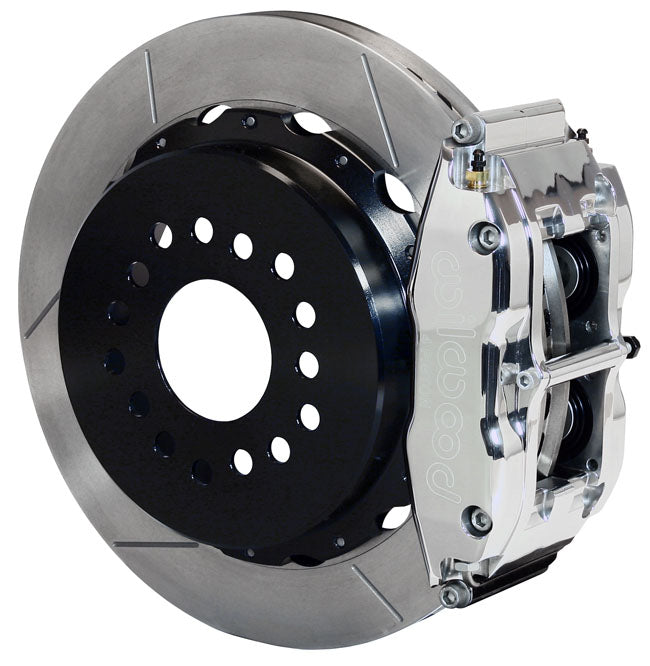

Brand New Wilwood Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kit Featuring 12.88" Slotted Rotors with Polished Calipers For Both Rear Wheels (Part #140-9213-P).

Forged Narrow Superlite 4R rear disc kits provide the ultimate Big Brake solution for popular muscle car rear axles that require a parking brake. FNSL4R four piston calipers, 13” two-piece rotors, and high performance BP-10 compound pads provide optimized and balanced braking to compliment front big brake upgrades on all types of custom, show and high performance street machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs allow builders to personalize the style and performance for every application.

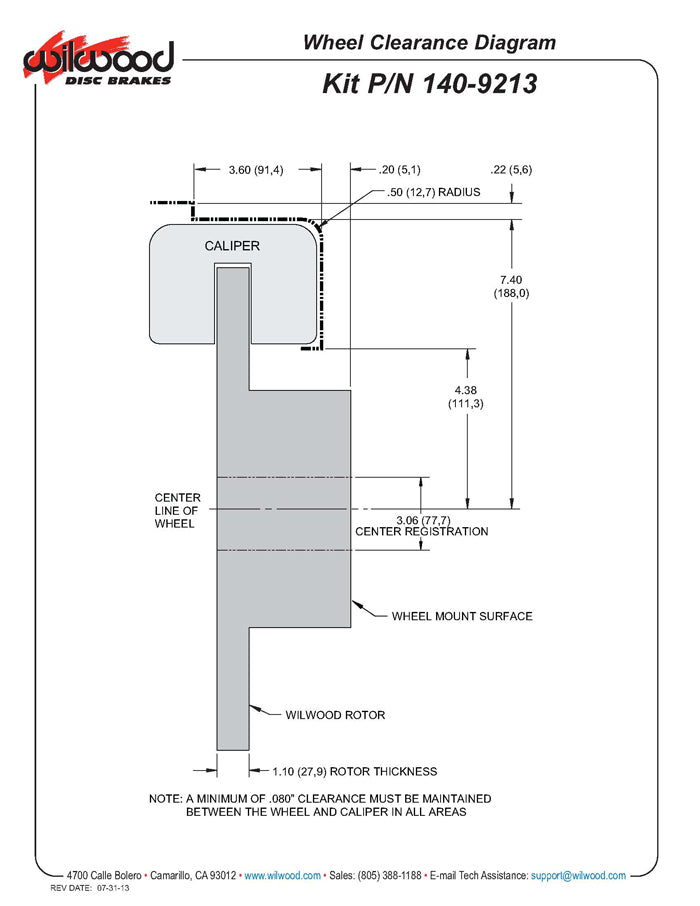

NOTE: This kit require at least 17" diameter wheels. Check wheel clearance diagram for proper fitment. Axle offset is 2.81".  For OE C-Clip axles only. Does not support Special End or C-Clip Eliminator modifications.

Compatible with:

• 12 Bolt Chevy & Factory C-Clip Rear End with 3.072"x2.404"x2.652" Mounting Pattern &  2.81" Axle Offset (See Diagram)

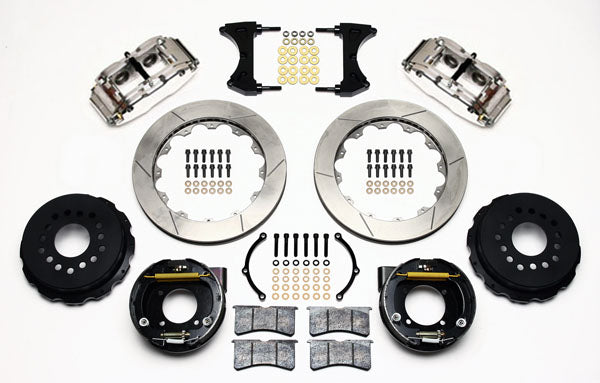

Kit includes:

• 4 Piston Forged Superlite Calipers

• BP-10 Compound Brake Pads

• 1.10" Thick x 12.88" O.D. Rotors

• Rotor Hat
• All brackets, bolts, washers, and nuts necessary to install the kit.


Complete kit weighs approximately 68 lbs.

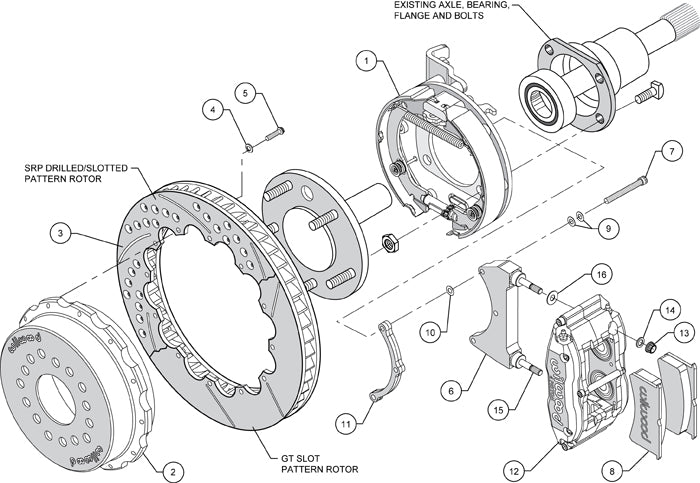

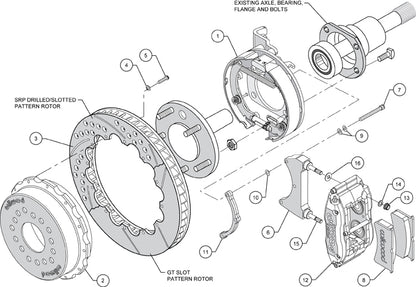

You can view and download the assembly/instruction booklet here.
