89-98 NISSAN 240SX,FRONT,FSL4,13",DR,RED

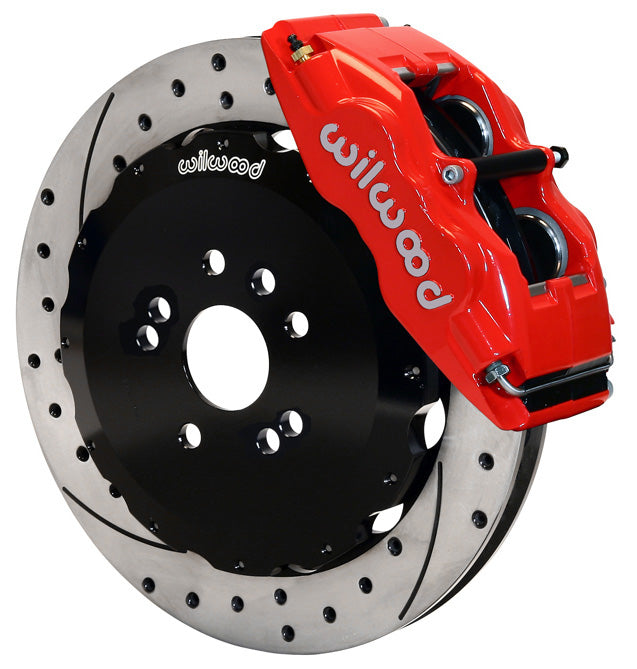

Brand New Wilwood Forged Superlite 4 Big Brake Front Brake Kit Featuring 12.88" Drilled Rotors with Red Calipers For Both Front Wheels (Part # 140-9194-DR).

The big pad capacity of the forged Superlite four piston caliper is combined with oversized rotors for this unique group of specialized application kits. The roots of the forged Superlite are deep in competition. It is a track proven performer. But the FSL is far from one dimensional. Lug mounting and a full range of piston sizes give the FSL widespread adaptability for applications with unique mounting and piston volume requirements. Options for caliper finish and rotor design provide the opportunity to configure these kits for high-tech style with full capability for extreme duty use on the street or at the track.

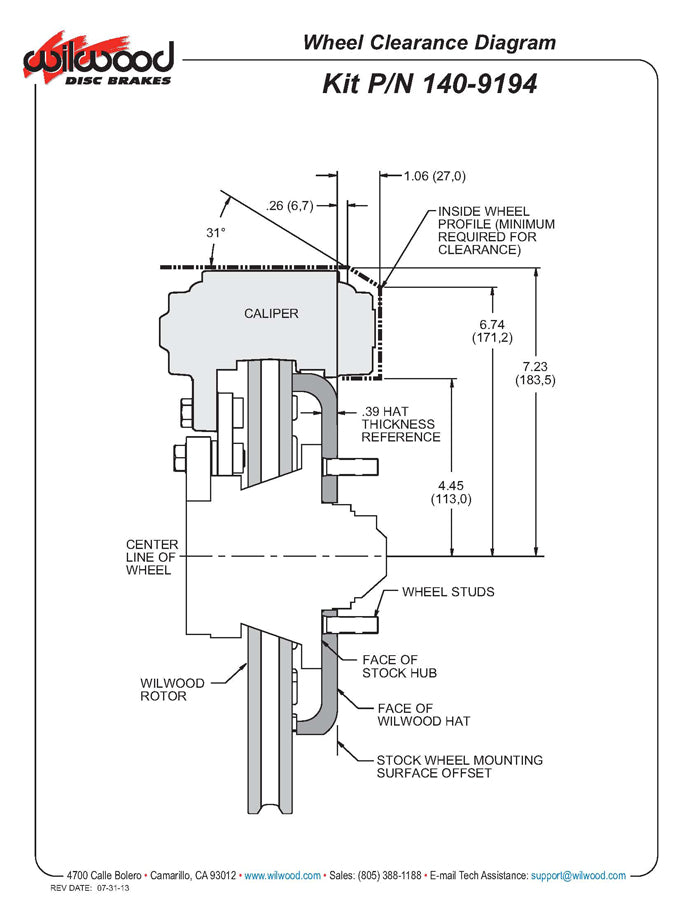

NOTE: This kit require at least 17" diameter wheels. Check wheel clearance diagram for proper fitment.

Compatible with:

• Nissan:
  • 240SX 1994-1998 Nissan 4 Lug w/o Antilock

  • 240SX 1994-1995 Nissan 5 Lug w/ Antilock Brakes

  • 240SX 1994-1998 Nissan 5 Lug w/o Antilock
  • 240SX 1996-1998 SE Models 5 Lug w/Antilock Brakes

  • 240SX 1989-1993 w/ Antilock Brakes

  • 240SX 1989-1993 w/o Antilock Brakes

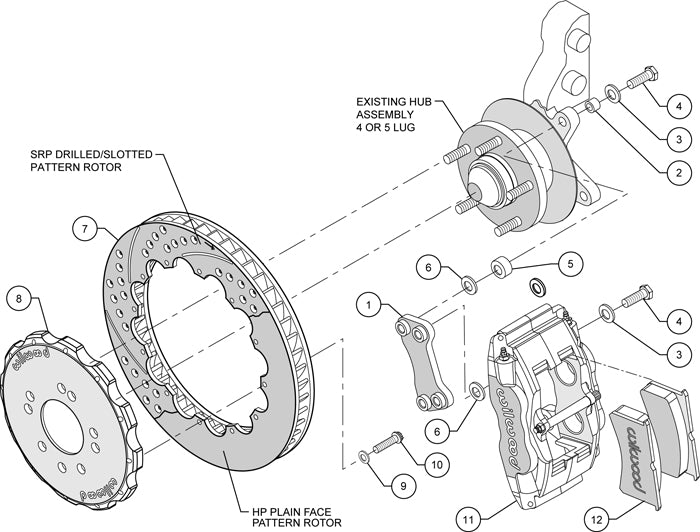

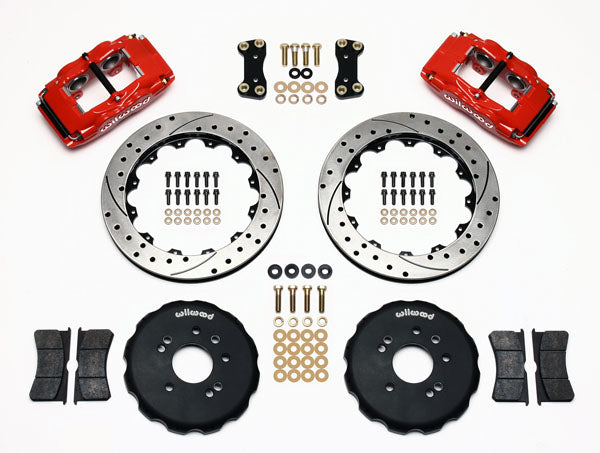

Kit includes:

• 4 Piston Forged Superlite Calipers

• BP-10 Compound Brake Pads

• 1.10" Thick x 12.88" O.D. Rotors

• Rotor Hat
• All brackets, bolts, washers, and nuts necessary to install the kit.


Complete kit weighs approximately 52 lbs.

You can view and download the assembly/instruction booklet here.
