99-08 SUBARU FULL DISC BRAKE KIT,12" DRILLED ROTORS,BLACK CALIPERS

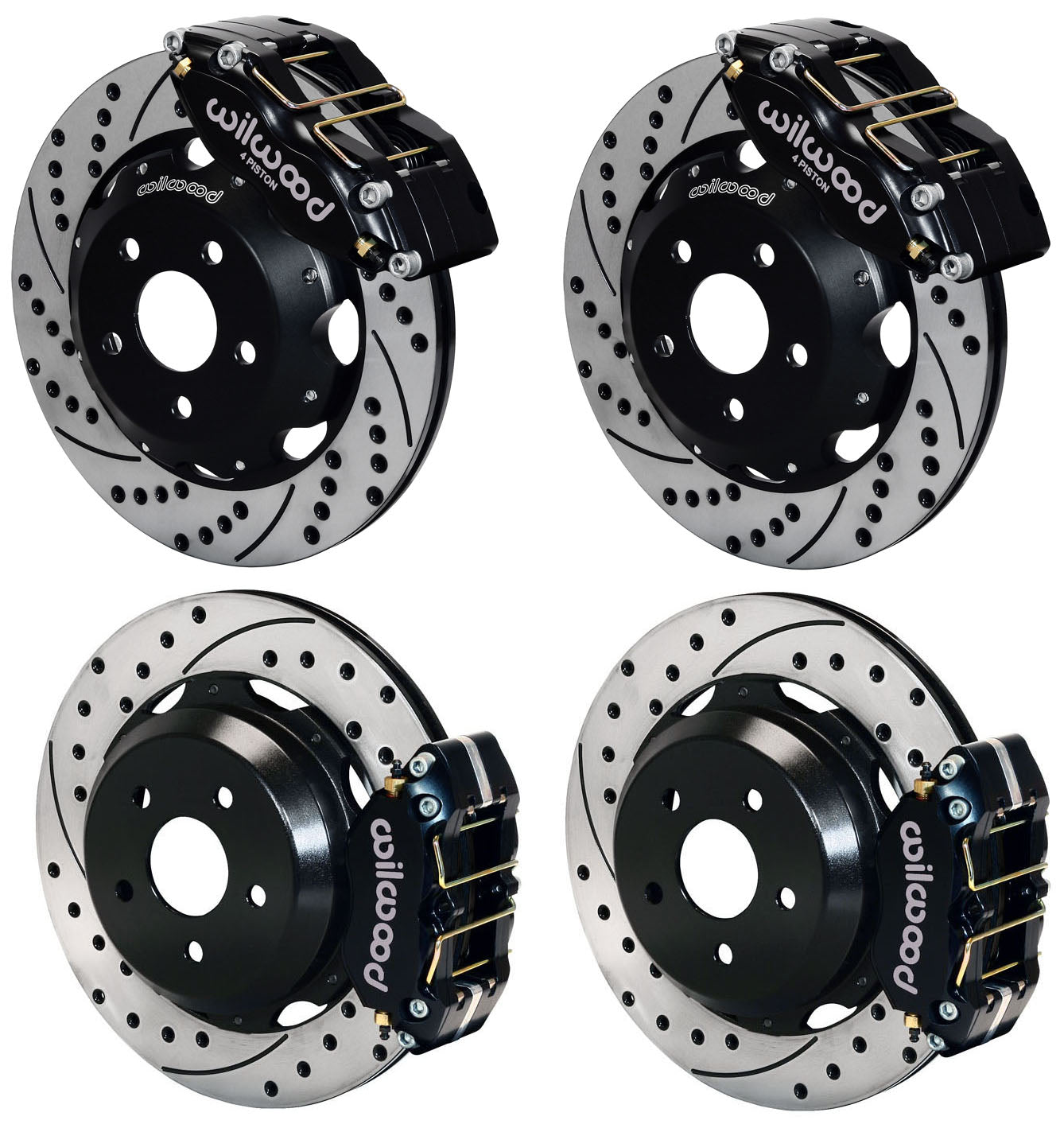

Brand New Wilwood Complete Pro Series Front & Rear Disc Brake Kit.

Complete Kit Includes:

• Dynapro 4 Bolt-On Front Hat & 12" Disc Brake Kit (Part #140-9193-D) for Both Front Wheels
• Dynapro 4 Bolt-On Rear Hat & 12.19" Disc Brake Kit (Part #140-7006-D) for Both Rear Wheels

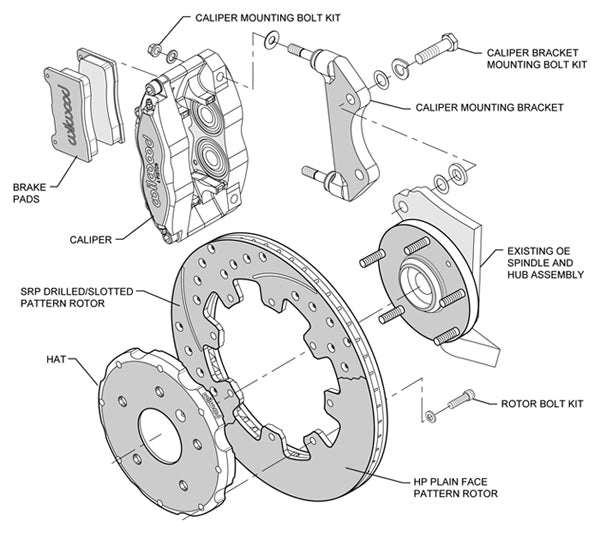

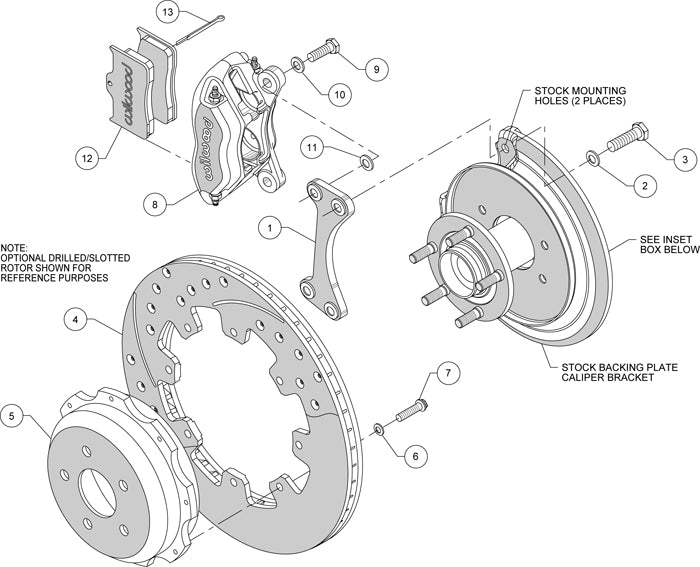

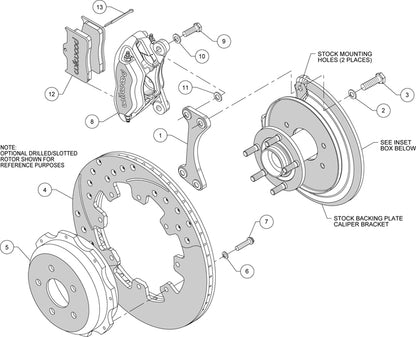

See the lists, the diagrams, & the assembly booklets below for a detail of the parts included.

Fits:

• Saab:
  • 2005-2006 Saab 9-2X, all
• Subaru Forester:
  • 2001-2008, all with Rear Disc Brakes
• Subaru Impreza:
  • 1999-2000, all with Rear Disc Brakes
  • 2001, 2.2L and 2.4L, all
  • 2002-2007 Coupe, all with Rear Disc Brakes
  • 2002-2007 Wagon, all with Rear Disc Brakes
  • WRX:
    • 2002-2003 WRX, all
    • 2004-2005 WRX, all except STI

Wilwood brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications.

For the Front, radial mounting provides secure and accurate installation of the forged billet DynaPro 4 piston caliper oversized 12" o.d. rotors for this group of front and all wheel drive sport compacts. Each kit is engineered specific for each vehicle to maintain full compatibility with the OE master cylinder output and factory ABS functions.

For the Rear, forged billet DynaPro 4 piston calipers and high performance BP-10 compound pads generate high clamping power with firm pedal response for this group of specialized rear axle brake kits. These kits retain full function of the OE parking brake and provide complimentary performance and style with front big brake upgrades. Caliper piston sizes are selected to provide balanced rear bias ratios using the output from the OE master cylinder. Rear rotor and hat combinations are engineered specific to each vehicle to provide brake performance upgrades and precise fit with the mounting of the DynaPro calipers.

These kits are the perfect compliment wheel, tire, and suspension upgrades on all types of daily drivers, race vehicles, and ultra-styled show machines.

These Big Brake kits require at least 15" diameter wheels.

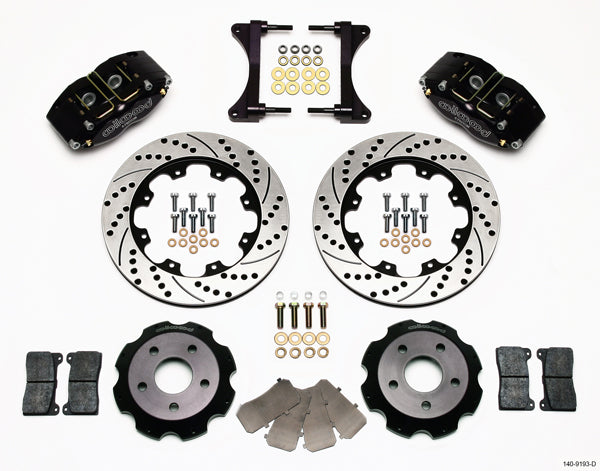

Front kit includes parts for both front wheels:

• Drilled & Slotted, 0.81" Thick x 12.00" O.D. Rotors
• Dynapro 4 Calipers - Black
• Caliper Mounting Brackets
• BP-10 Smart Compound Brake Pads
• Brake Hats
• All Hardware necessary to install the complete braking system on both front wheels

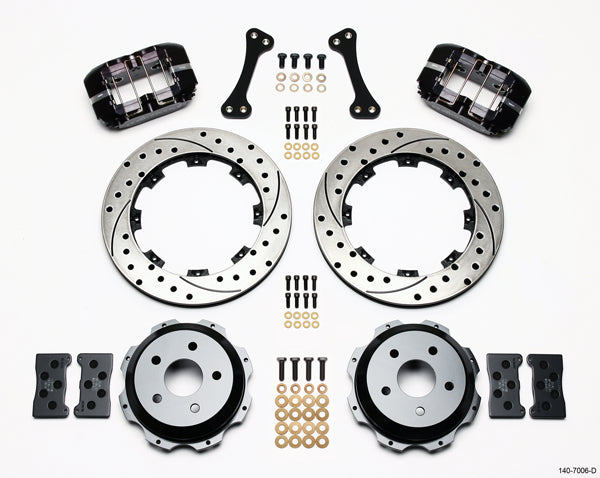

Rear kit includes parts for both rear wheels:

• Drilled & Slotted, 0.81" Thick x 12.19" O.D. Rotors
• Dynapro 4 Calipers - Black
• Caliper Mounting Brackets
• BP-10 Smart Compound Brake Pads
• Brake Hats
• All Hardware necessary to install the complete braking system on both rear wheels

Complete kit weighs approximately 78 lbs.

You can view and download the complete assembly instruction booklet for the Front Kit and the Rear Kit.
