SUBARU IMPREZA,LEGACY,FRONT,DPR4,12",DRILLED

SUBARU IMPREZA,LEGACY,FRONT,DPR4,12",DRILLED

WIL 140-9193-D

$1,429.99
$1,429.99
View full details
  • WILWOOD DYNAPRO BIG BRAKE FRONT HAT & 12" DISC BRAKE KIT FOR:
    -2005-2006 SAAB 9-2X
    -2001-2008 SUBARU FORESTER
    -1999-2007 SUBARU IMPREZA ALL COUPE & WAGON
    -2002-2007 SUBARU IMPREZA WRX, EXCEPT STI
    -2004 SUBARU IMPREZA WRX STI WITH 5 X 100mm BOLT PATTERN WHEELS
    -2000-2002 SUBARU LEGACY

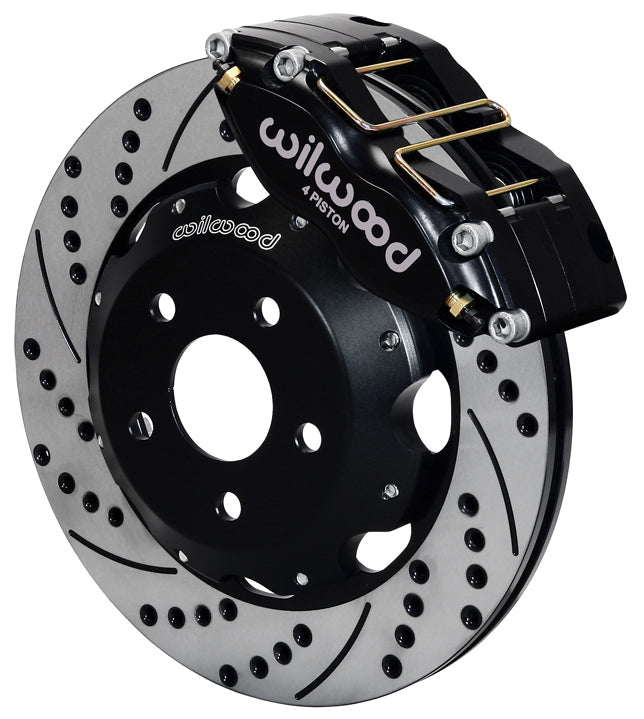

  • FEATURING DRILLED & SLOTTED ROTORS, AS WELL AS BLACK CALIPERS

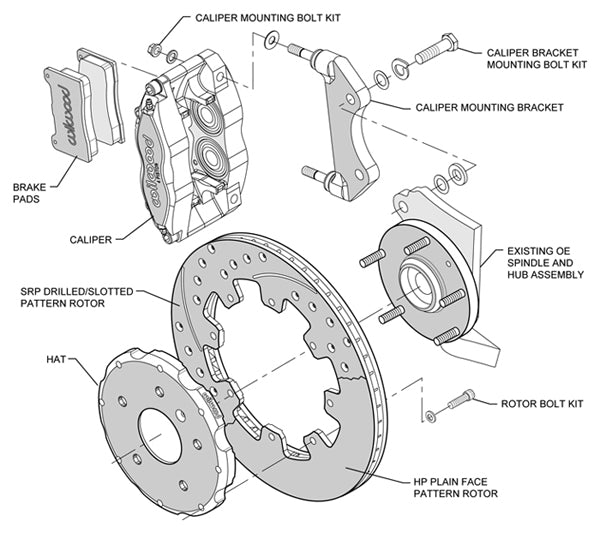

  • ONLY ONE SIDE PICTURED. SEE THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF THE PARTS INCLUDED

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS
  • RADIAL MOUNTING PROVIDES SECURE AND ACCURATE INSTALLATION OF THE FORGED BILLET DYNAPRO 4 PISTON CALIPER ON THE OVERSIZED 12" O.D. ROTORS FOR THIS GROUP OF FRONT AND ALL WHEEL DRIVE SPORT COMPACTS
  • THESE KITS ARE THE PERFECT COMPLIMENT TO WHEEL, TIRE, & SUSPENSION UPGRADES ON ALL TYPES OF DAILY DRIVERS, RACE VEHICLES, AND ULTRA-STYLED SHOW MACHINES
  • EACH KIT IS ENGINEERED SPECIFIC FOR EACH VEHICLE
  • THEY ARE FULLY COMPATIBLE WITH OE MASTER CYLINDER OUTPUT, WHILE RETAINING THE FULL FACTORY ABS FUNCTIONS
  • MOST KITS ARE EASILY INSTALLED WITH THE COMMON HAND TOOLS USED TO PERFORM ROUTINE BRAKE SERVICE

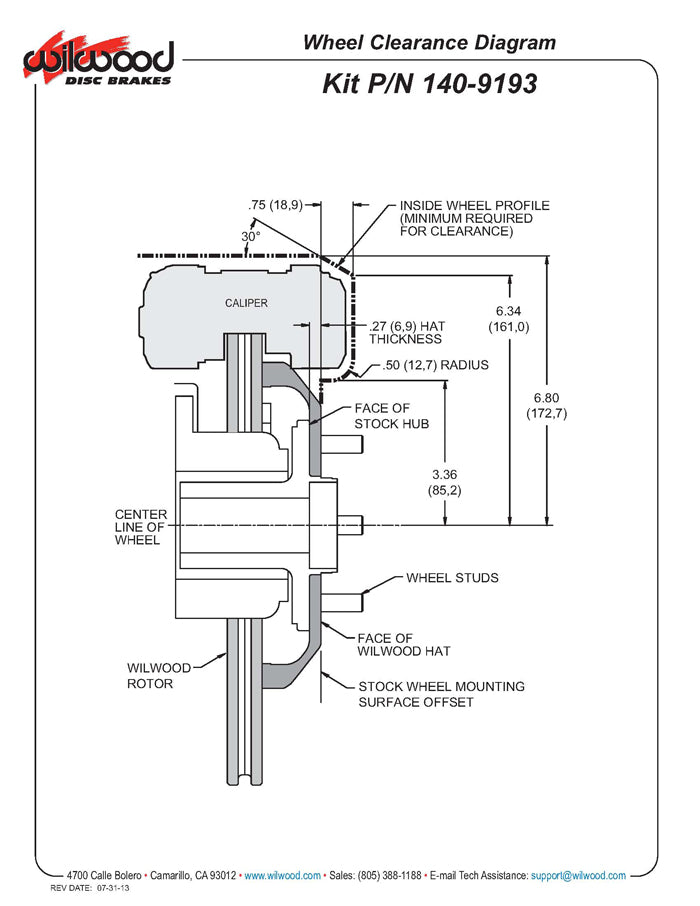

  • THESE BIG BRAKE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS

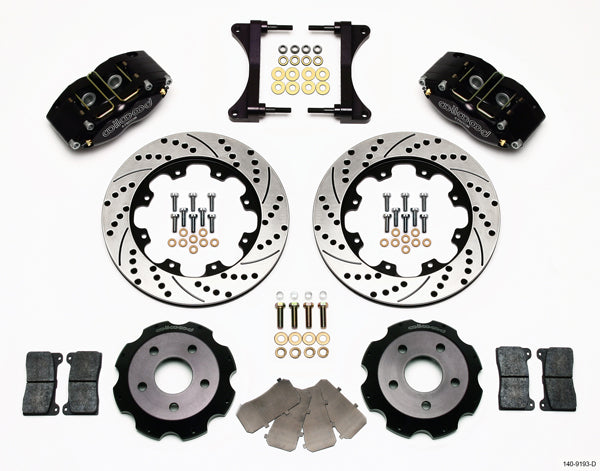

  • KIT INCLUDES:
    *DRILLED & SLOTTED, .810" THICK x 12" O.D. ROTORS,
    *DYNAPRO CALIPERS - BLACK,
    *CALIPER MOUNTING BRACKETS,
    *BP-10 BRAKE PADS,
    *BRAKE HATS, &
    *ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS
  • COMPLETE KIT WEIGHS APPROXIMATELY 36 LBS.
  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE

  • ONLY ONE SIDE SHOWN
    • Wilwood Drilled
    Wilwood Subaru Front Disc Brake Kits
