03-09 NISSAN 350Z FULL DISC BRAKE KIT,14/13" DRILLED ROTORS,RED CALIPERS

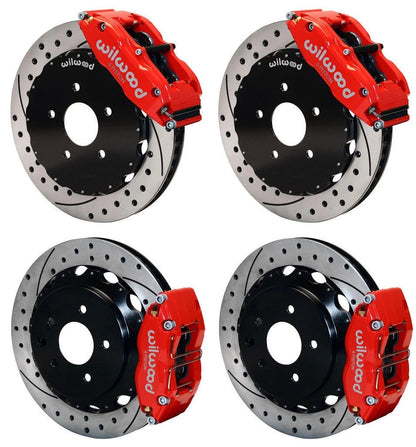

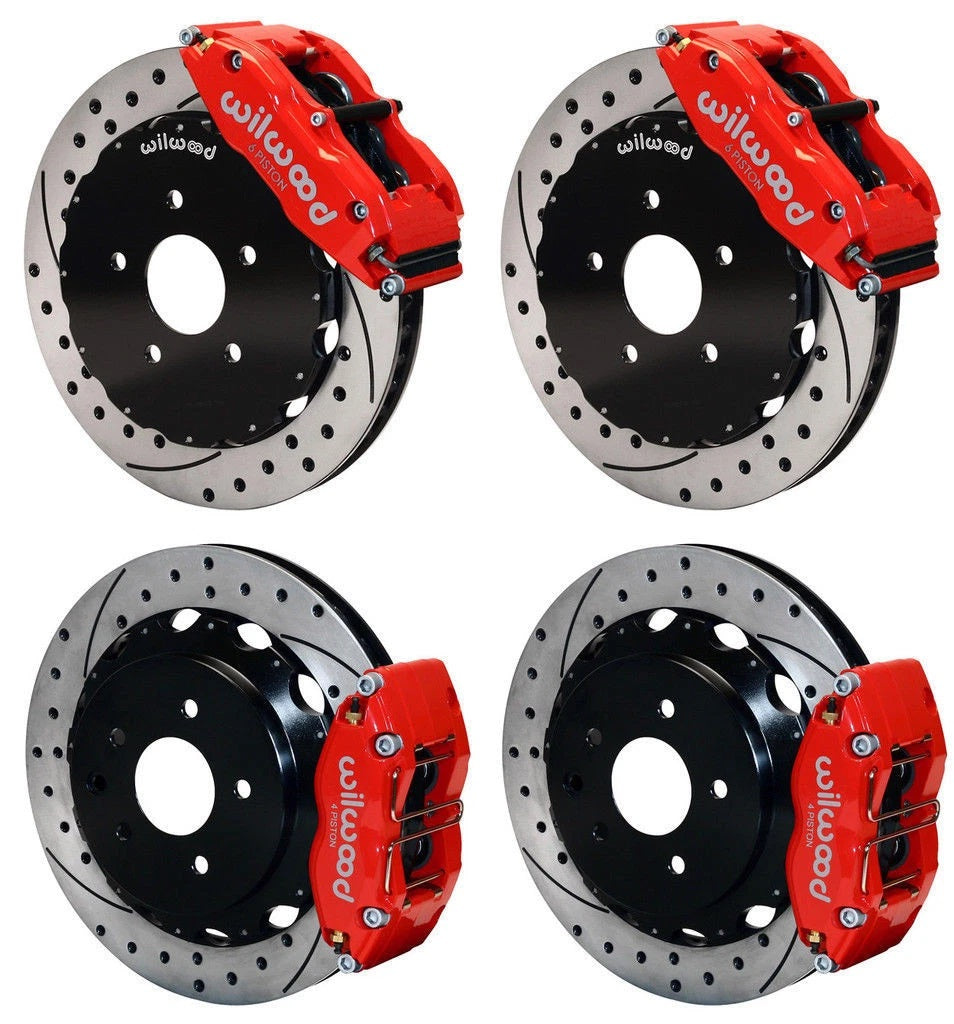

Brand New Wilwood Complete Premium Big Brake Front & Rear Disc Brake Kit.

Complete Kit Includes:

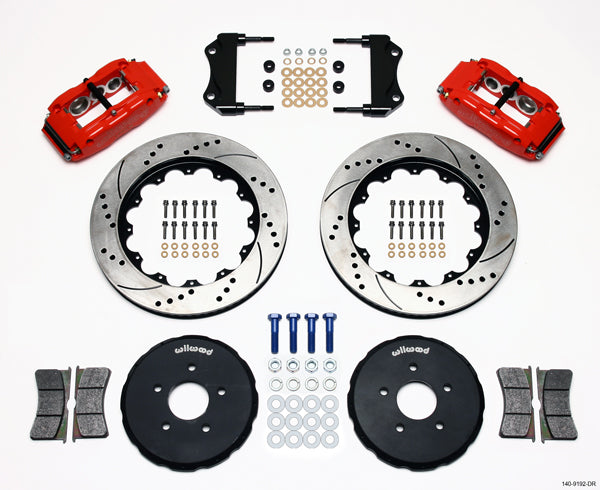

• Superlite 6R Bolt-On Front Hat & 14.00" Disc Brake Kit (Part #140-9192-DR) for Both Front Wheels

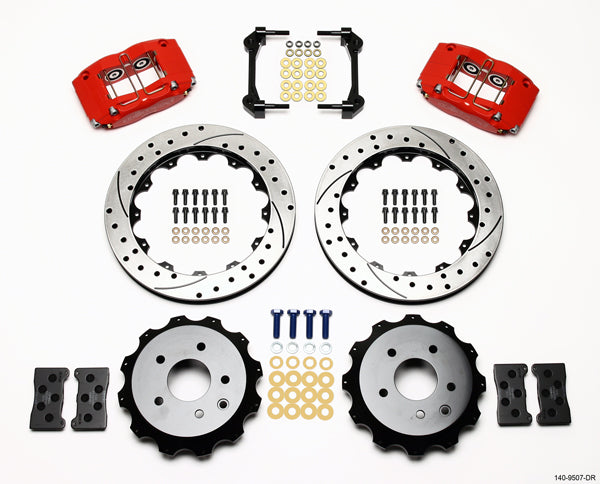

• Dynapro 4R Bolt-On Rear Hat & 12.90" Disc Brake Kit (Part #140-9507-DR) for Both Rear Wheels

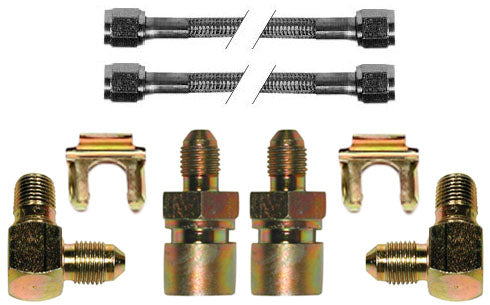

• Full Line Kit for the Front with 24" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings
• Full Line Kit for the Rear with 18" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings

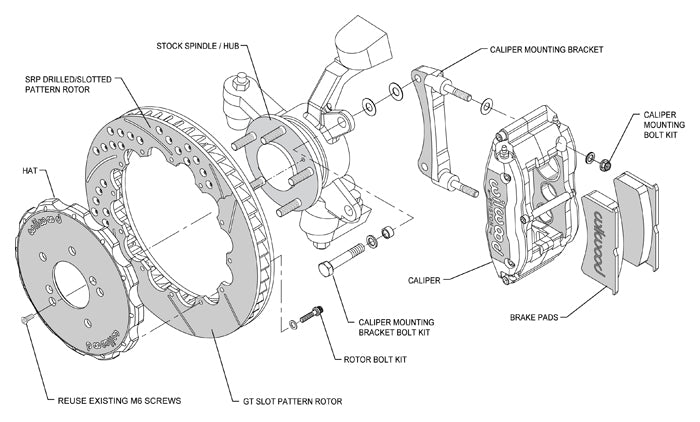

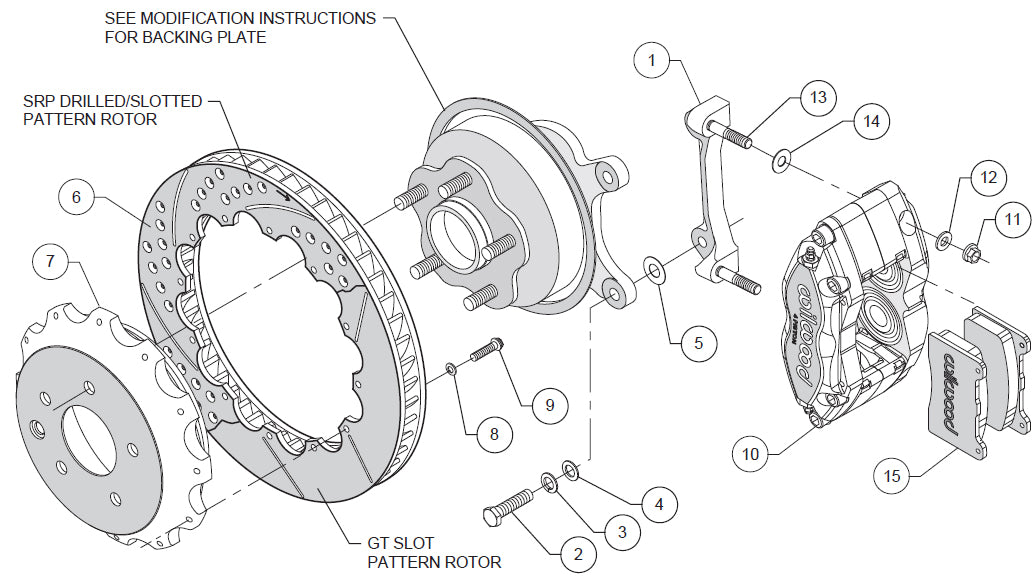

See the lists, the diagrams, & the assembly booklets below for a detail of the parts included.

Fits:

• 2003 Infiniti G35, all
• 2004-2006 Infiniti G35, all RWD
• 2007 Infiniti G35, 2 Door RWD
• 2003-2009 Nissan 350Z

Wilwood brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications.

For the Front, the unsurpassed braking capacity of the SL6 forged billet 6-piston caliper serves as the base of these Big Brake front kits. They are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big Brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades on show cars and high performance street/track machines.  Each kit is engineered specific for each vehicle to maintain full compatibility with the OE master cylinder output and factory ABS functions.

For the Rear, forged billet DynaPro 4 piston calipers and high performance BP-10 compound pads generate high clamping power with firm pedal response for this group of specialized rear axle brake kits. These kits retain full function of the OE parking brake and provide complimentary performance and style with front big brake upgrades. Caliper piston sizes are selected to provide balanced rear bias ratios using the output from the OE master cylinder. Rear rotor and hat combinations are engineered specific to each vehicle to provide brake performance upgrades and precise fit with the mounting of the DynaPro calipers.

These kits are the perfect compliment wheel, tire, and suspension upgrades on all types of daily drivers, race vehicles, and ultra-styled show machines.

These Big Brake kits require at least 18" diameter wheels on the front and 17" diameter wheels on the rear.

Front kit includes parts for both front wheels:

• Drilled & Slotted, 1.25" Thick x 14.00" O.D. Rotors
• Superlite 6R Calipers - Red
• Caliper Mounting Brackets
• BP-10 Smart Compound Brake Pads
• Brake Hats
• All Hardware necessary to install the complete braking system on both front wheels

Rear kit includes parts for both rear wheels:

• Drilled & Slotted, 1.10" Thick x 12.90" O.D. Rotors
• Dynapro Radial Calipers - Red
• Caliper Mounting Brackets
• BP-10 Smart Compound Brake Pads
• Brake Hats
• All Hardware necessary to install the complete braking system on both rear wheels

Complete kit weighs approximately 119 lbs.

You can view and download the complete assembly instruction booklet for the Front Kit and the Rear Kit.
