94-04 MUSTANG,FULL DISC BRAKE KIT,14"/13" DRILLED,RED CALIPERS

Brand New Wilwood Complete Premium Big Brake 14" Front & 13" Rear Disc Brake Kit.

Complete Kit Includes:

• Superlite 6 Bolt-On Front Hat & 14.00" Disc Brake Kit (Part #140-9117-DR) for Both Front Wheels
• Combination Parking Brake Bolt-On Rear Hat & 12.88" Disc Brake Kit (Part #140-10158-DR) for Both Rear Wheels

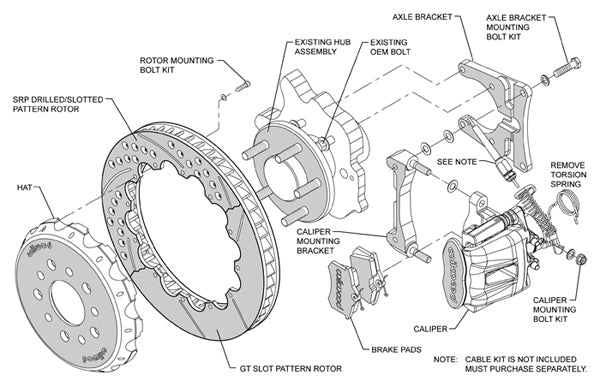

See the lists, the diagrams, & the assembly booklets below for a detail of the parts included.

Fits:

• 1994-2004 Ford Mustang

Wilwood brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications.

For the Front, the unsurpassed braking capacity of the Superlite 6 forged billet 6-piston caliper serves as the base of these Big Brake kits.  They are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used.  Big Brake kits provide increased brake capacity and complimentary style with with wheel, tire, and suspension upgrades on all types of daily drivers, race vehicles, and ultra-styled show machines.

For the Rear, Combination hydro-mechanical Parking Brake calipers use hydraulic pressure from the master cylinder for stopping power, and an internal mechanical lock within the caliper for a parking brake.  The calipers are coupled with oversized two-piece rotor assemblies with aluminum hats and high friction BP-10 compound pads.  CPB kits provide the correct balanced brake performance for high performance applications.

Each kit is engineered specific for each vehicle.

These Big Brake kits require at least 18" diameter wheels on the front and 17" diameter wheels on the rear.

Front kit includes parts for both front wheels:

• Drilled & Slotted, 1.250" Thick x 14.00" O.D. Rotors
• Billet Superlite 6R Calipers - Red
• Caliper Mounting Brackets
• BP-10 Smart Compound Brake Pads
• Brake Hats
• All Hardware necessary to install the complete braking system on both front wheels

Rear kit includes parts for both rear wheels:

• Drilled & Slotted, 1.00" Thick x 12.88" O.D. Rotors
• Combination Parking Calipers - Red
• Caliper Mounting Brackets
• BP-10 Smart Compound Brake Pads
• Brake Hats
• All Hardware necessary to install the complete braking system on both rear wheels

Complete kit weighs approximately 117 lbs.

You can view and download the complete assembly instruction booklet for the Front kit here.

You can view and download the complete assembly instruction booklet for the Rear kit here.
