05-14 MUSTANG,FULL DISC BRAKE KIT,13" DRILLED,RED CALIPERS

Brand New Wilwood Complete Premium Big Brake Front & Rear 13" Disc Brake Kit.

Complete Kit Includes:

• Superlite 6 Piston Bolt-On Front Hat & 13.06" Disc Brake Kit (Part #140-9109-DR) for Both Front Wheels
• Combination Parking Brake Bolt-On Rear Hat & 12.88" Disc Brake Kit (Part #140-10159-DR) for Both Rear Wheels

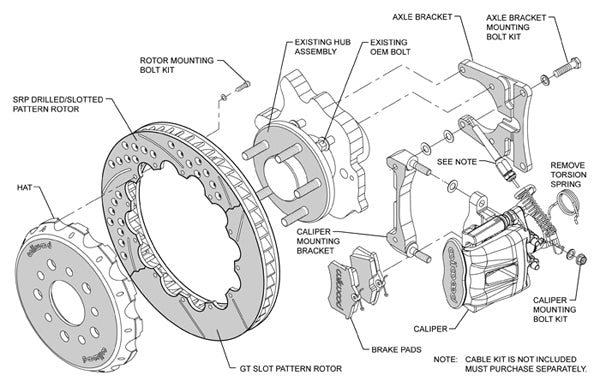

See the lists, the diagrams, & the assembly booklets below for a detail of the parts included.

Fits:

• 2005-2014 Ford Mustang Base
• 2005-2014 Ford Mustang GT
• 2007-2014 Ford Mustang Shelby GT500
• 2008 Ford Mustang Bullit
• 2012-2013 Ford Mustang Boss 302
• 2014 Ford Mustang Shelby

Wilwood brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications.

For the Front, the unsurpassed braking capacity of the Superlite 6 forged billet 6-piston caliper serves as the base of these Big Brake kits.  They are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used.  Big Brake kits provide increased brake capacity and complimentary style with with wheel, tire, and suspension upgrades on all types of daily drivers, race vehicles, and ultra-styled show machines.

For the Rear, Combination hydro-mechanical Parking Brake calipers use hydraulic pressure from the master cylinder for stopping power, and an internal mechanical lock within the caliper for a parking brake.  The calipers are coupled with oversized two-piece rotor assemblies with aluminum hats and high friction BP-10 compound pads.  CPB kits provide the correct balanced brake performance for high performance applications.

These Big Brake kits require at least 17" diameter wheels on the Front and at least 16" diameter wheels on the Rear.

Kit includes parts for both front wheels:

• Drilled & Slotted, 1.250" Thick x 13.06" O.D. Rotors
• Superlite 6 Piston Calipers - Red
• Caliper Mounting Brackets
• BP-10 Smart Compound Brake Pads
• Brake Hats
• All bolts, washers, shims, & nuts necessary to install the complete braking system on both front wheels

Kit includes parts for both rear wheels:

• Drilled & Slotted, 1.00" Thick x 12.88" O.D. Rotors
• Combination Parking Calipers - Red
• Caliper Mounting Brackets
• BP-10 Smart Compound Brake Pads
• Brake Hats
• All Hardware necessary to install the complete braking system on both rear wheels

Complete kit weighs approximately 109 lbs.

You can view and download the complete assembly instruction booklet for the Front kit here.

You can view and download the complete assembly instruction booklet for the Rear kit here.
