05-14 MUSTANG,FULL DISC BRAKE KIT,13"/12" DRILLED,RED CALIPERS

Brand New Wilwood Complete Premium Big Brake Front & Rear Disc Brake Kit.

Complete Kit Includes:

• Superlite 6 Piston Bolt-On Front Hat & 13.06" Disc Brake Kit (Part #140-9109-DR) for Both Front Wheels
• Dynalite 4 Piston Bolt-On Rear Hat & 12.19" Disc Brake Kit with Parking Brake Assemblies (Part #140-9228-DR) for Both Rear Wheels

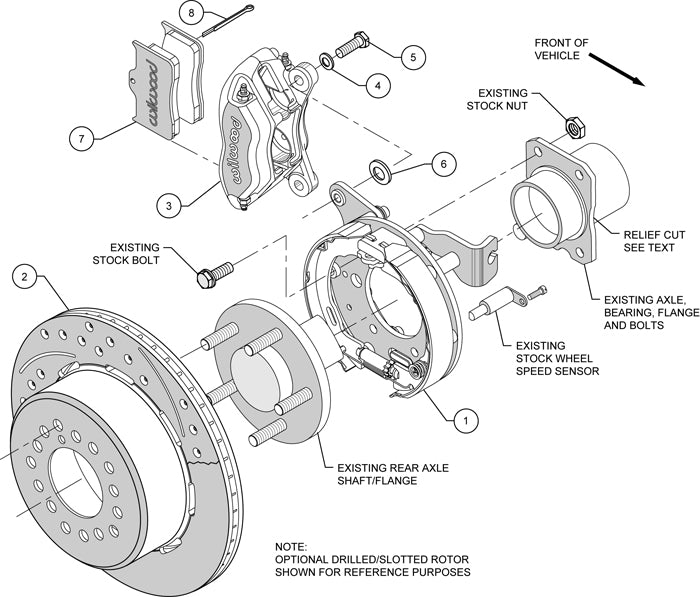

See the lists, the diagrams, & the assembly booklets below for a detail of the parts included.

Fits:

• 2005-2014 Ford Mustang Base
• 2005-2014 Ford Mustang GT
• 2007-2014 Ford Mustang Shelby GT500
• 2008 Ford Mustang Bullit
• 2012-2013 Ford Mustang Boss 302
• 2014 Ford Mustang Shelby

Wilwood brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications.

For the Front, the unsurpassed braking capacity of the Superlite 6 forged billet 6-piston caliper serves as the base of these Big Brake kits.  They are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used.  Big Brake kits provide increased brake capacity and complimentary style with with wheel, tire, and suspension upgrades on all types of daily drivers, race vehicles, and ultra-styled show machines.

For the Rear, FDL Pro Series rear disc kits provide a complete solution for popular muscle car rear axles that require a parking brake. Forged Billet Dynalite 4-Piston calipers, 12.19" o.d. one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking.

These Big Brake kits require at least 17" diameter wheels on the Front and at least 16" diameter wheels on the Rear.

Kit includes parts for both front wheels:

• Drilled & Slotted, 1.250" Thick x 13.06" O.D. Rotors
• Superlite 6 Piston Calipers - Red
• Caliper Mounting Brackets
• BP-10 Smart Compound Brake Pads
• Brake Hats
• All bolts, washers, shims, & nuts necessary to install the complete braking system on both front wheels

Kit includes parts for both rear wheels:

• Drilled & Slotted, 0.81" Thick x 12.19" O.D. Rotors
• Dynalite 4 Piston Calipers - Red
• Drum Parking Brake Assemblies with Caliper Mounting Brackets
• BP-10 Smart Compound Brake Pads
• Brake Hats
• All bolts, washers, & shims necessary to install the complete braking system on both rear wheels

Complete kit weighs approximately 100 lbs.

You can view and download the complete assembly instruction booklet for the Front kit here.

You can view and download the complete assembly instruction booklet for the Rear kit here.
