94-04 MUSTANG KIT,FRONT,12.90" DRILLED ROTORS,RED

94-04 MUSTANG KIT,FRONT,12.90" DRILLED ROTORS,RED

WIL 140-9107-DR

$1,959.99
$1,959.99
View full details

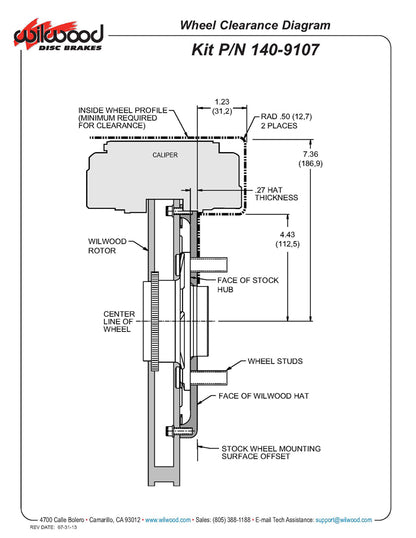

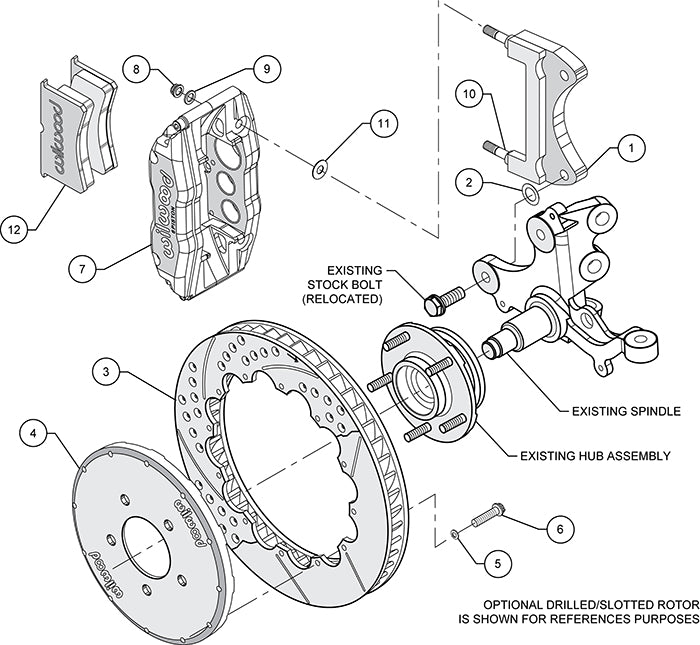

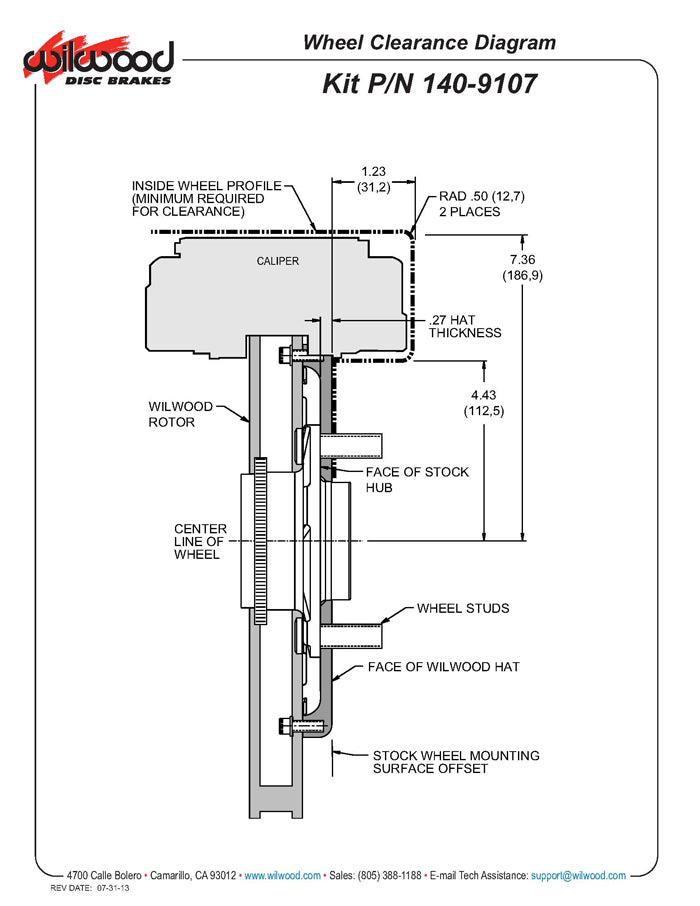

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • WILWOOD SUPERLITE 6 BIG BRAKE FRONT HAT & 12.90" DISC BRAKE KIT FOR:
    *1994-2004 FORD MUSTANG (5 LUG, STOCK OFFSET)

  • FEATURING DRILLED & SLOTTED ROTORS AND RED CALIPERS
  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS
  • MOST KITS ARE EASILY INSTALLED WITH THE COMMON HAND TOOLS USED TO PERFORM ROUTINE BRAKE SERVICE
  • A FEW KITS DO REQUIRE MINOR MODIFICATIONS TO THE AXLE TO COMPLETE THE INSTALLATION
  • THE UNSURPASSED BRAKING CAPACITY OF THE SL6 FORGED BILLET 6-PISTON CALIPER SERVES AS THE BASE OF THESE BIG BRAKE KITS. THEY ARE ENGINEERED APPLICATION-SPECIFIC FOR SIMPLIFIED INSTALLATION AND FULL COMPATIBILITY WITH OE MASTER CYLINDER OUTPUT AND ABS FUNCTIONS WHERE USED. BIG BRAKE KITS PROVIDE INCREASED BRAKE CAPACITY AND COMPLIMENTARY STYLE WITH WHEEL, TIRE, AND SUSPENSION UPGRADES ON SHOW CARS AND HIGH PERFORMANCE STREET/TRACK MACHINES
  • THESE BIG BRAKE KITS REQUIRE AT LEAST 17" DIAMETER WHEELS
  • COMPLETE KIT WEIGHS APPROXIMATELY 46 LBS

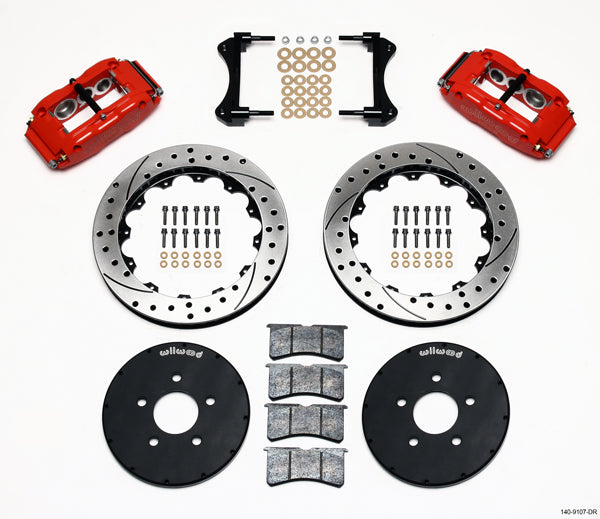

  • KIT INCLUDES:
    *DRILLED & SLOTTED, 1.25" THICK x 12.90" O.D. ROTORS,
    *BILLET SUPERLITE 6R CALIPERS - RED,
    *CALIPER MOUNTING BRACKETS,
    *BP-10 BRAKE PADS,
    *BRAKE HATS, &
    *ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS
  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE

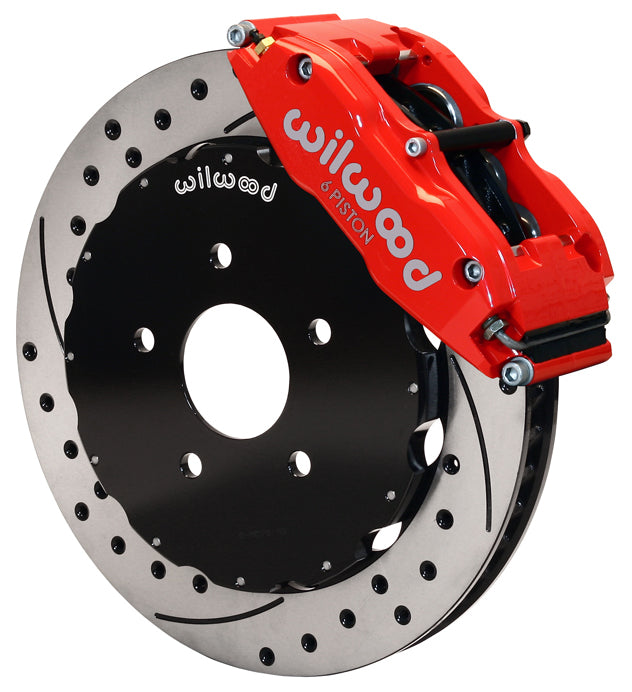

  • ONLY ONE SIDE SHOWN
    • Bolt-On Disc Brake Kits > Ford Kits > Mustang Front Kits, 1994-2004
