04-08 FORD F-150,TC6R,FRONT,16",BLACK

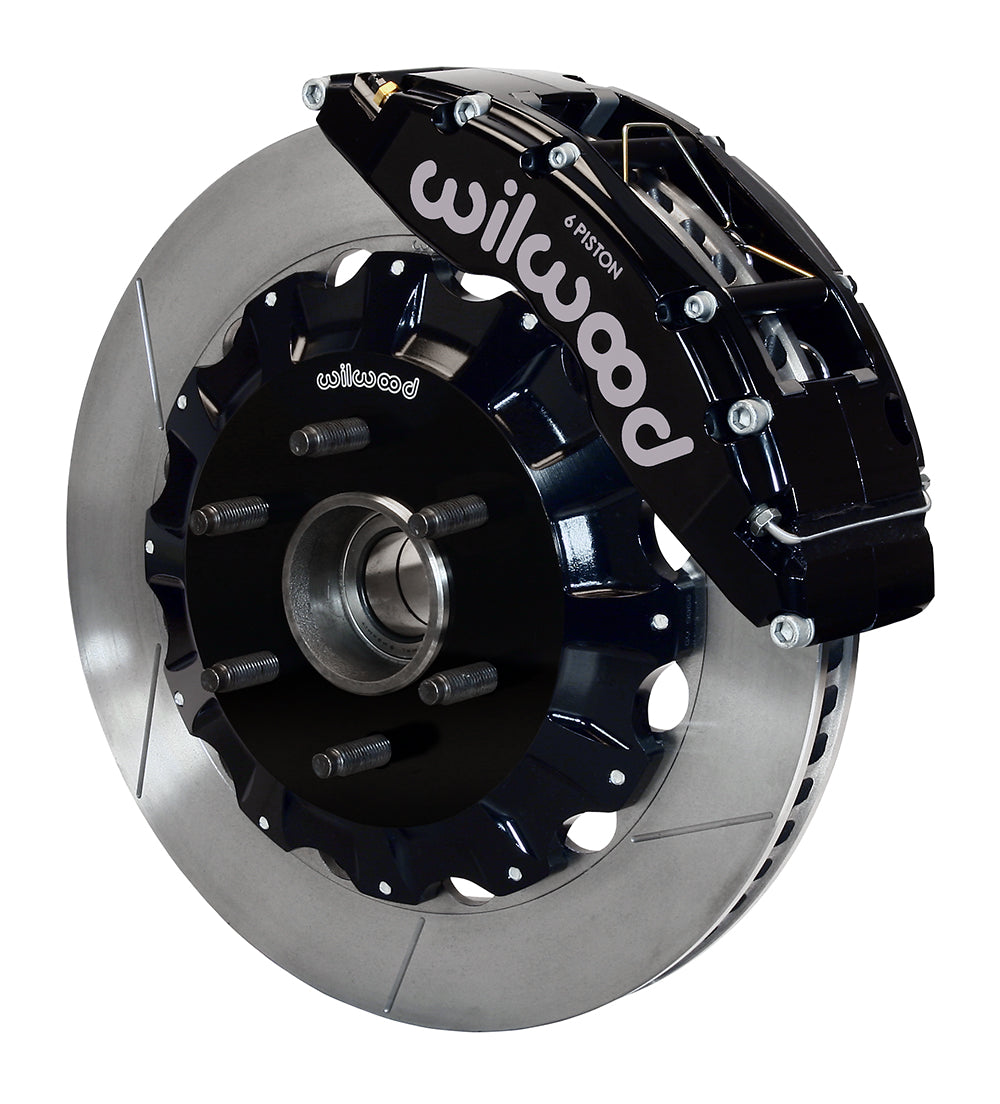

BRAND NEW WILWOOD PREMIUM BIG BRAKE TC6R BOLT-ON FRONT HAT & 16" DISC BRAKE KIT (PART #140-9072) FOR BOTH FRONT WHEELS.

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

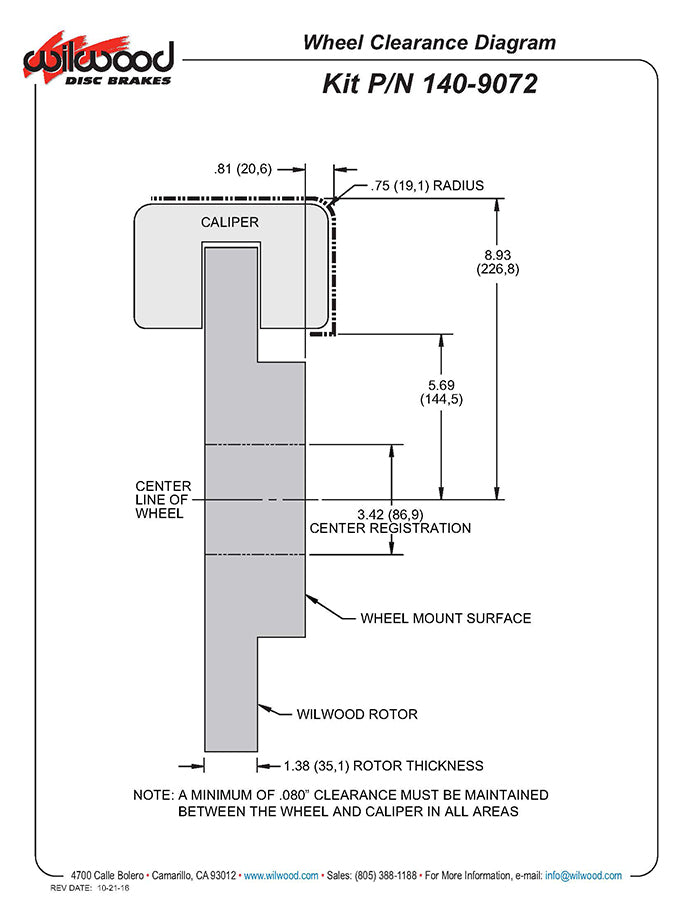

TC6R CALIPERS ARE PURPOSE BUILT TO PROVIDE UNSURPASSED BRAKING CAPACITY ON TRUCKS AND SUVS UPGRADED TO LARGER THAN STOCK WHEELS. TC6R KITS CAN FIT MANY 20" AND LARGER WHEELS (VERIFY YOUR WHEEL INTERIOR CLEARANCE TO THE WHEEL CLEARANCE DIAGRAM IN THE INSTALLATION INSTRUCTIONS BEFORE PURCHASE). COMBINING THE HIGH CLAMPING EFFICIENCY OF THE TC6R CALIPER WITH 16" DIAMETER DIRECTIONAL VANE ROTORS AND HIGH FRICTION BP-10 COMPOUND BRAKE PADS, TC6R KITS PROVIDE THE BRAKING POWER NECESSARY TO CONTROL THE HIGHER ROTATING WEIGHT OF ULTRA-SIZED WHEELS AND TIRES, ESPECIALLY WITH HIGH GVW VEHICLES AND VEHICLES USED FOR TOWING. TC6R KITS ARE ENGINEER APPLICATION TO BE FULLY COMPATIBLE WITH THE OE MASTER CYLINDER OUTPUT AND RETAIN FULL FUNCTION OF THE ABS SYSTEM.

COMPATIBLE WITH:

• FORD:
• 2004-2008 F-150, 6 LUG & 2WD
• LINCOLN:
• 2006-2008 MARK LT, 6 LUG & 2WD

THESE BIG BRAKE KITS REQUIRE AT LEAST 20" DIAMETER WHEELS.

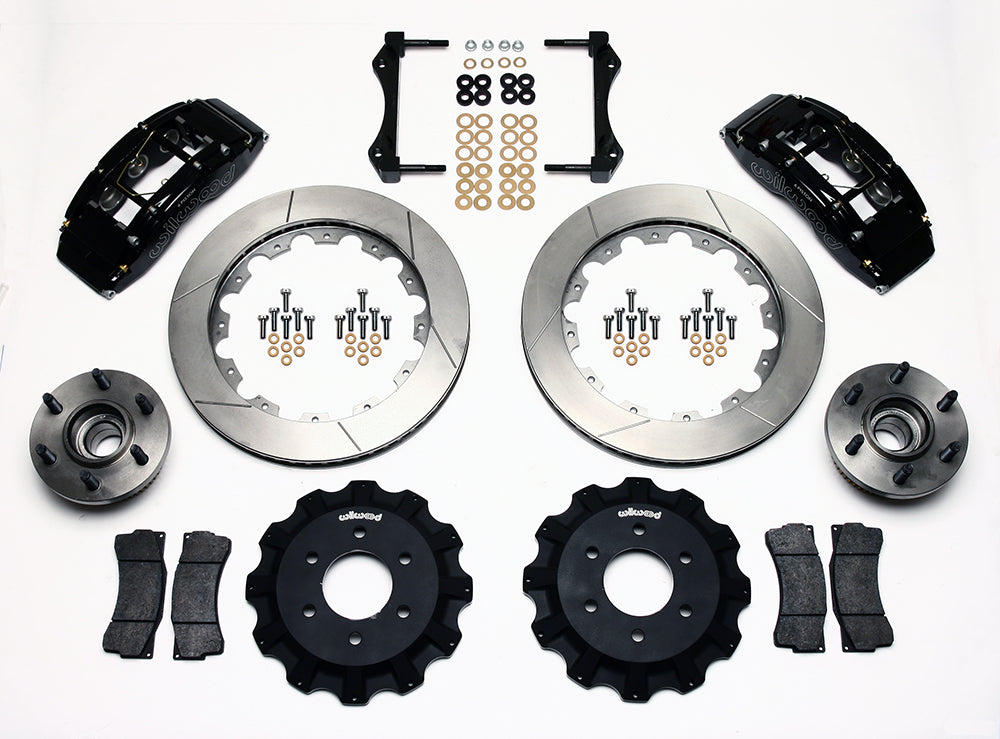

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• 1.38" THICK X 16.00" O.D. ROTORS
• TC6R RADIAL MOUNT CALIPERS - BLACK
• CALIPER MOUNTING BRACKETS
• BP-10 SMART COMPOUND BRAKE PADS
• BRAKE HATS
• HUBS
• ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 116 LBS.

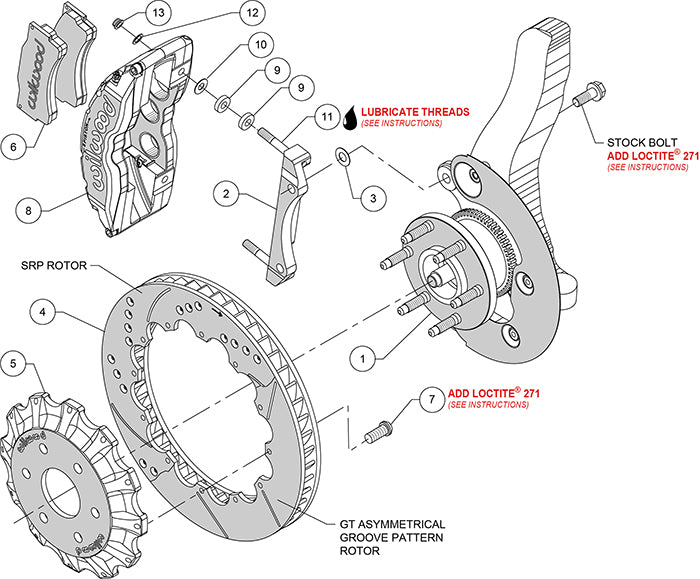

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
