99-10 GM 2500 TRUCK/SUV FULL DISC BRAKE KIT,16" ROTORS,RED,4.63" CENTER

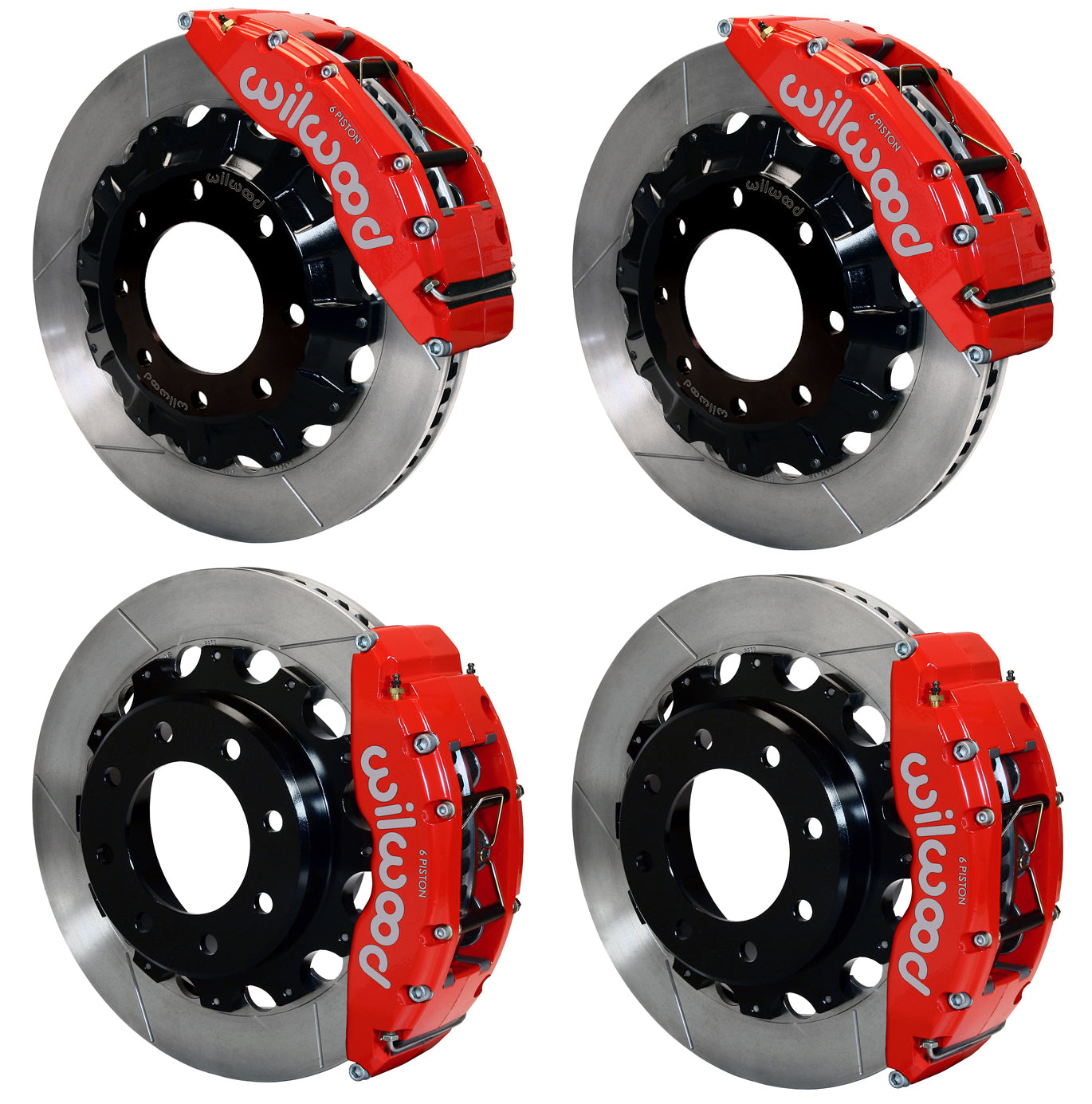

Brand New Wilwood Complete Premium Big Brake Front & Rear 16" Disc Brake Kit.

Complete Kit Includes:

• TC6R Bolt-On Front Hat & 16" Disc Brake Kit (Part #140-8996-R) for Both Front Wheels
• TC6R Bolt-On Rear Hat & 16" Disc Brake Kit (Part #140-9405-R) for Both Rear Wheels

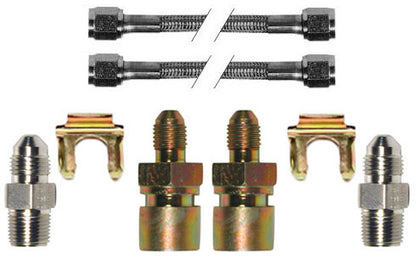

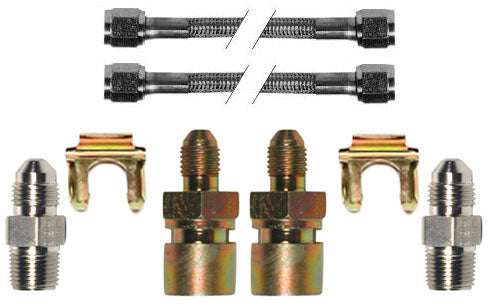

• Full Line Kit for the Front with 30" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings

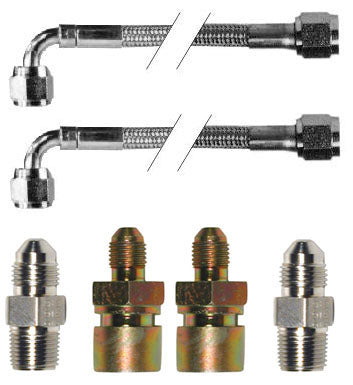

• Full Line Kit for the Rear with 15" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings

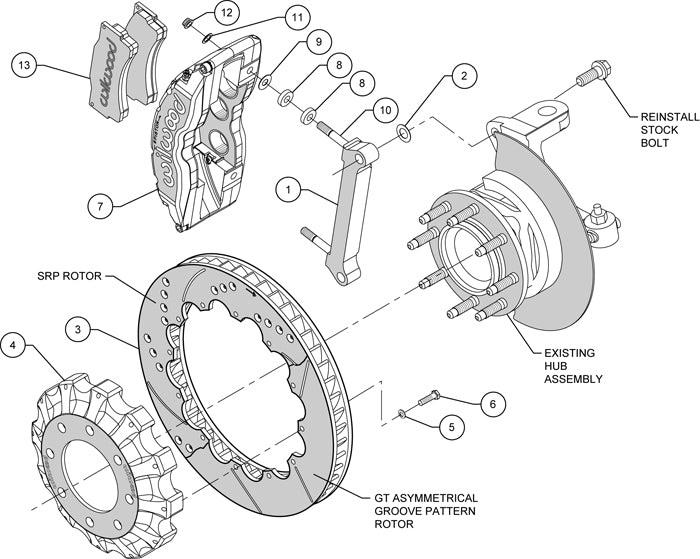

See the lists, the diagrams, & the assembly booklets below for a detail of the parts included.

Fits:

• Hummer:
  • 2003-2009 H2, All 8 Lug
• Chevy:
  • Avalanche 2500:
    • 2002-2006, All 8 Lug with a Center Register on the Rear Axles of 4.63"**
  • Silverado 1500HD:
    • 2001-2006, All 8 Lug with a Center Register on the Rear Axles of 4.63"**
  • Silverado 2500:
    • 1999-2004, All 8 Lug with a Center Register on the Rear Axles of 4.63"**
    • 2010, All 8 Lug with a Center Register on the Rear Axles of 4.63"**
  • Silverado 2500HD:
    • 2001-2006, All 8 Lug with a Center Register on the Rear Axles of 4.63"**
  • Suburban 2500:
    • 2000 4x4, 8 Lug with a Center Register on the Rear Axles of 4.63"**
    • 2001-2007, All 8 Lug with a Center Register on the Rear Axles of 4.63"**
    • 2008-2009 4x4, 8 Lug with a Center Register on the Rear Axles of 4.63"**
    • 2010, All 8 Lug with a Center Register on the Rear Axles of 4.63"**
• GMC:
  • Sierra 1500HD:
    • 2001-2006 Sierra, All 8 Lug with a Center Register on the Rear Axles of 4.63"**
  • Sierra 2500:
    • 1999-2004, All 8 Lug with a Center Register on the Rear Axles of 4.63"**
    • 2010, All 8 Lug with a Center Register on the Rear Axles of 4.63"**
  • Sierra 2500HD:
    • 2001-2006, All 8 Lug with a Center Register on the Rear Axles of 4.63"**
  • Yukon XL 2500:
    • 2000 4x4, 8 Lug with a Center Register on the Rear Axles of 4.63"**
    • 2001-2007, All 8 Lug with a Center Register on the Rear Axles of 4.63"**
    • 2008-2009 4x4, 8 Lug with a Center Register on the Rear Axles of 4.63"**
    • 2010, All 8 Lug with a Center Register on the Rear Axles of 4.63"**

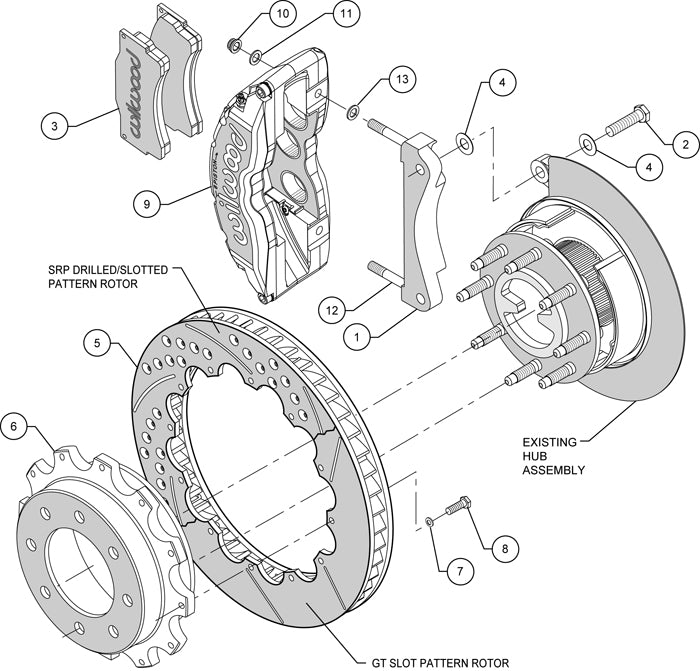

• **The center hole of the rear hats in this kit is 4.63" to fit over the center register on the rear axle (shown in the "rear kit diagram" below as the circle in the middle of the wheel studs).  These vehicles either had a 4.63" or 4.84" center register on those rear axles.  It is very important to measure that to get the correct kit.  We also have the kits for the 4.84" available.

Wilwood brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications.

TC6R calipers are purpose built to provide unsurpassed braking capacity on trucks and SUV’s using 20” and larger wheels and tires. Combining the high clamping efficiency of the TC6R caliper with 16” diameter directional vane rotors and high friction BP-10 compound brake pads, TC6R kits provide the braking power necessary to control the higher rotating weight of ultra-sized wheels and tires, especially with high GVW vehicles and vehicles used for towing. TC6R kits are engineered application-specific to be fully compatible with the OE master cylinder output and retain full function of the ABS system.

Each kit is engineered specific for each vehicle.

These Big Brake kits require at least 20" diameter wheels.

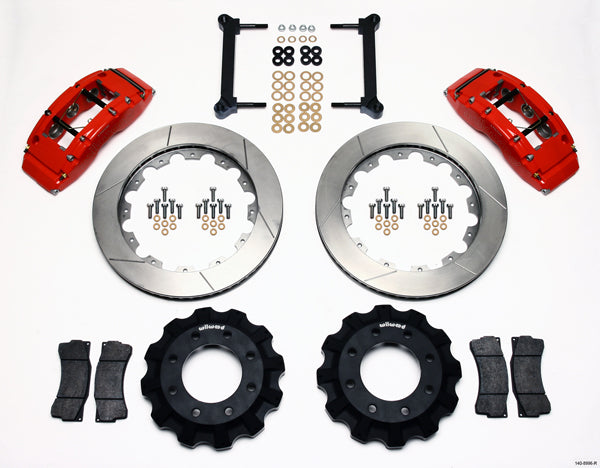

Front kit includes parts for both front wheels:

• 1.38" Thick x 16" O.D. Rotors
• TC6R Radial Mount Calipers - Red
• Caliper Mounting Brackets
• BP-10 Smart Compound Brake Pads
• Brake Hats
• All Hardware necessary to install the complete braking system on both front wheels

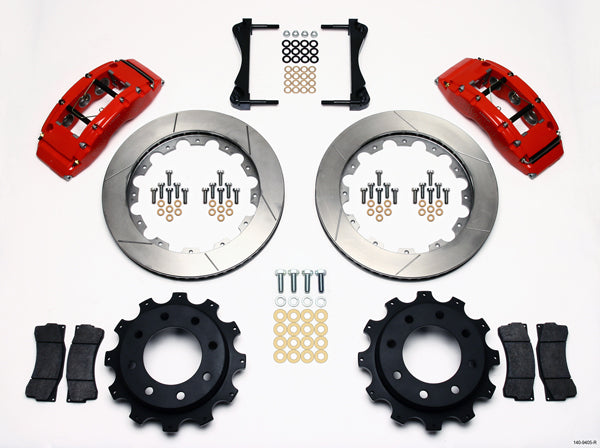

Rear kit includes parts for both rear wheels:

• 1.38" Thick x 16" O.D. Rotors
• TC6R Radial Mount Calipers - Red
• Caliper Mounting Brackets
• BP-10 Smart Compound Brake Pads
• Brake Hats
• All Hardware necessary to install the complete braking system on both rear wheels

Complete kit weighs approximately 182 lbs.

You can view and download the complete assembly instruction booklet for the Front Kit and the Rear Kit.
