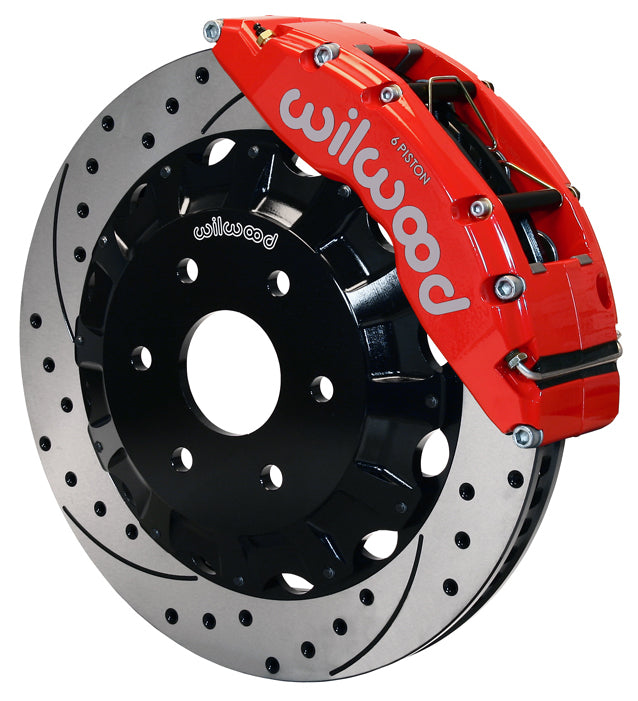

99-18 GM 1500 TRUCK/SUV,FRONT,TC6R 6 PISTON RED CALIPERS,16" DRILLED ROTORS

BRAND NEW WILWOOD PREMIUM BIG BRAKE TC6R BOLT-ON FRONT HAT & 16" DISC BRAKE KIT (PART #140-8992-DR) FOR BOTH FRONT WHEELS.

ONLY ONE SIDE PICTURED. SEE THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF THE PARTS INCLUDED.

FEATURES DRILLED & SLOTTED ROTORS, AS WELL AS POWDER-COATED RED CALIPERS.

FITS:

• CADILLAC:
  • 2002-2011 ESCALADE, ALL 6 LUG
  • 2007-2011 ESCALADE ESV, ALL 6 LUG
  • 2002-2004 ESCALADE EXT, ALL 6 LUG
  • 2007-2011 ESCALADE EXT, ALL 6 LUG
• CHEVY:
  • 2002-2006 AVALANCHE 1500, ALL 6 LUG
  • 2007-2011 AVALANCHE, ALL 6 LUG
  • 1999-2011 SILVERADO 1500 TRUCK, ALL 6 LUG
  • 2000-2011 SUBURBAN 1500, ALL 6 LUG
  • 2000 TAHOE, NEW STYLE FRAME, 6 LUG
  • 2001-2011 TAHOE, ALL 6 LUG
• GMC:
  • 1999-2011 SIERRA 1500 TRUCK, ALL 6 LUG
  • 2000 YUKON, ALL 6 LUG, EXCEPT DENALI
  • 2001-2011 YUKON, ALL 6 LUG
  • 2000-2011 YUKON XL 1500, ALL 6 LUG

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

TC6R CALIPERS ARE PURPOSE-BUILT TO PROVIDE UNSURPASSED BRAKING CAPACITY ON TRUCKS AND SUVS USING 20" AND LARGER WHEELS AND TIRES. COMBINING THE HIGH CLAMPING EFFICIENCY OF THE TC6R CALIPER WITH 16" DIAMETER DIRECTIONAL VANE ROTORS AND HIGH FRICTION BP-10 COMPOUND BRAKE PADS, TC6R KITS PROVIDE THE BRAKING POWER NECESSARY TO CONTROL THE HIGHER ROTATING WEIGHT OF ULTRA-SIZED WHEELS AND TIRES, ESPECIALLY WITH HIGH GVW VEHICLES AND VEHICLES USED FOR TOWING. TC6R KITS ARE ENGINEERED APPLICATION-SPECIFIC TO BE FULLY COMPATIBLE WITH THE OE MASTER CYLINDER OUTPUT AND RETAIN FULL FUNCTION OF THE ABS SYSTEM.

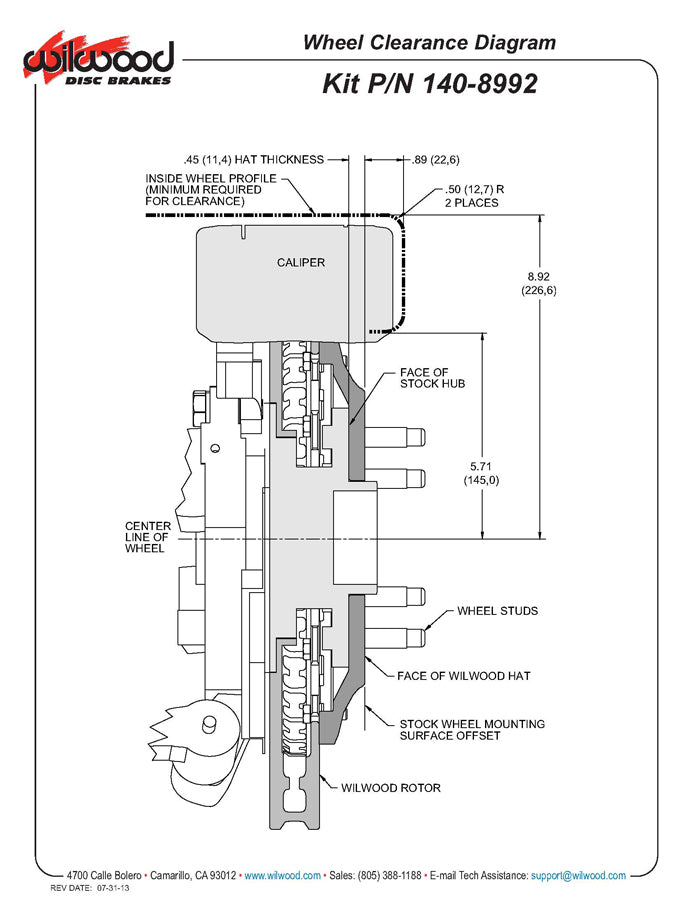

THESE BIG BRAKE KITS REQUIRE AT LEAST 20" DIAMETER WHEELS.

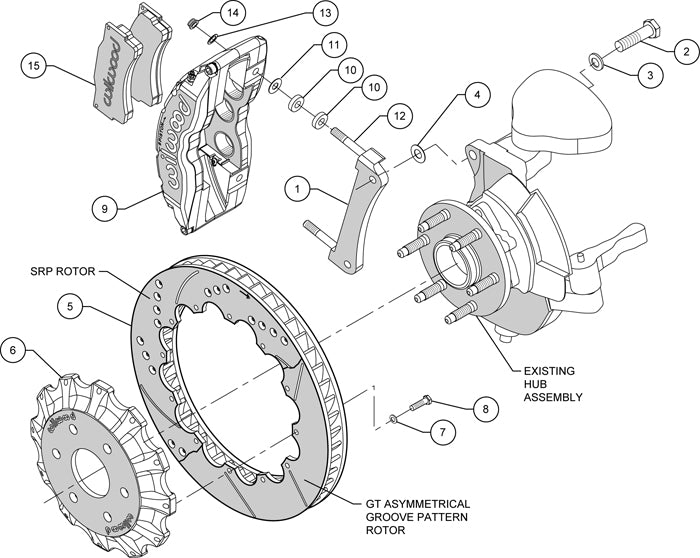

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• DRILLED & SLOTTED, 1.38" THICK X 16.00" O.D. ROTORS
• TC6R RADIAL MOUNT CALIPERS - RED
• CALIPER MOUNTING BRACKETS
• BP-10 SMART COMPOUND BRAKE PADS
• BRAKE HATS
• ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 97 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
