97-13 CORVETTE FULL DISC BRAKE KIT,14" ROTORS,RED CALIPERS

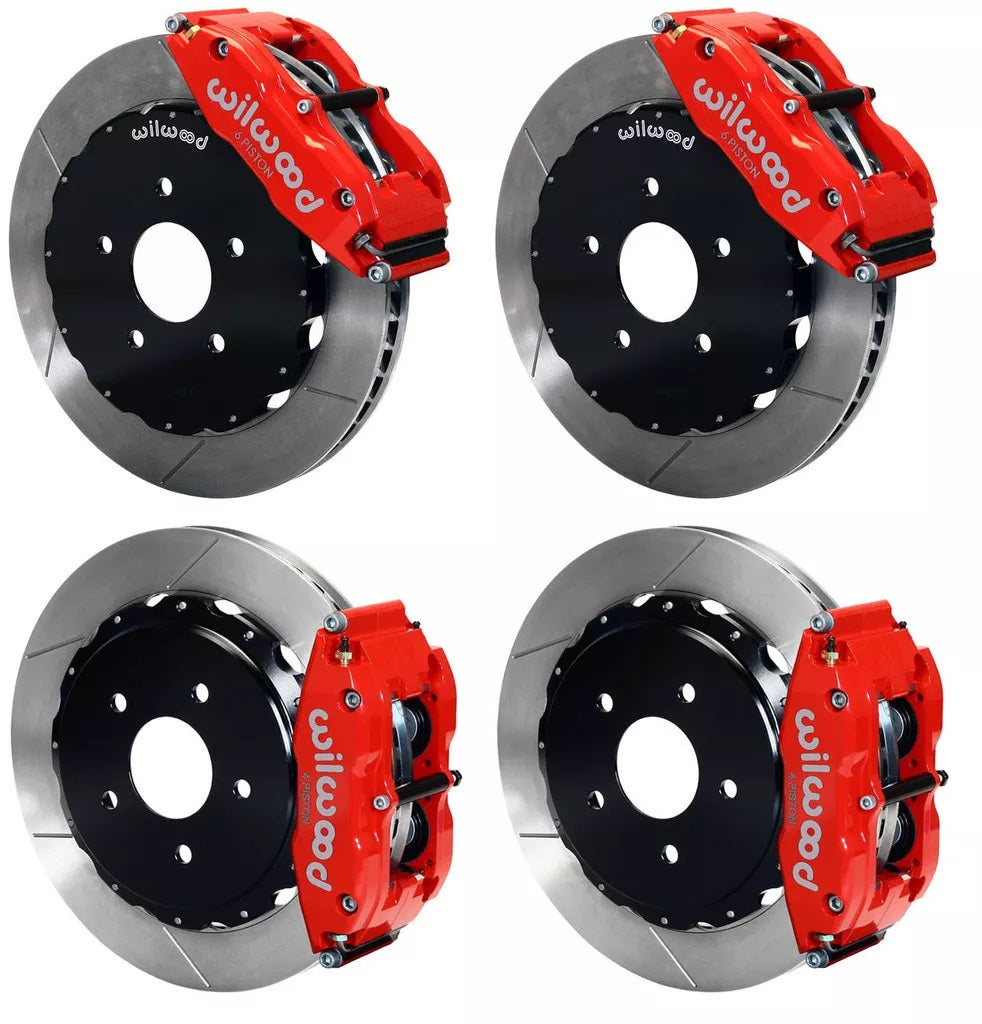

Brand New Wilwood Complete Premium Big Brake Front & Rear 14" Disc Brake Kit.

Complete Kit Includes:

• Superlite 6R Bolt-On Front Hat & 14.00" Disc Brake Kit (Part #140-8922-R) for Both Front Wheels
• Superlite 4R Bolt-On Rear Hat & 14.00" Disc Brake Kit (Part #140-9119-R) for Both Rear Wheels

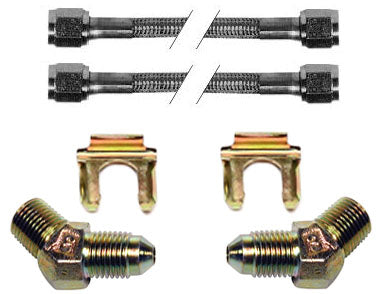

• Full Line Kit for the Front with 15" Steel Braided Lines & Caliper Fittings, with the end of the lines connecting straight to the stock hard lines

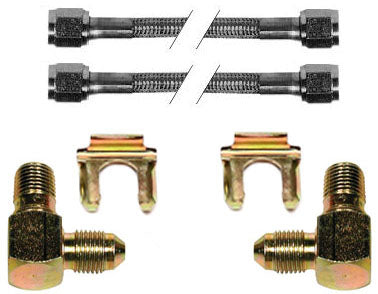

• Full Line Kit for the Rear with 15" Steel Braided Lines & Caliper Fittings, with the end of the lines connecting straight to the stock hard lines

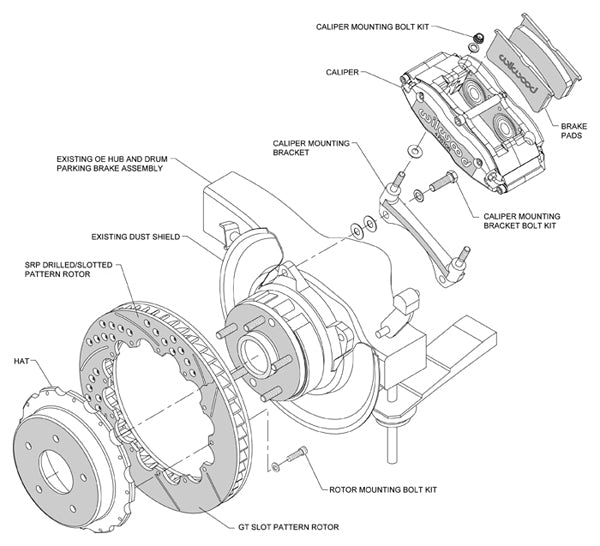

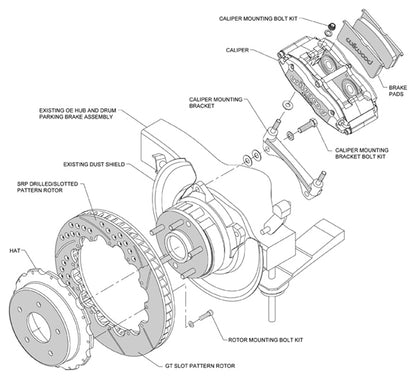

See the lists, the diagrams, & the assembly booklets below for a detail of the parts included.

Fits:

• Chevrolet:
  • 1997-2004 C5 Corvette
  • 2005-2013 C6 Corvette
• Cadillac:
  • 2004-2010 XLR

Wilwood brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications.

For the Front, the unsurpassed braking capacity of the SL6 forged billet 6-piston caliper serves as the base of these Big Brake kits.  They are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used.

For the Rear, Billet Superlite 4R Four piston calipers are combined with BP-10 compound pads and 14" rotors in this series of big brake kits for custom high performance street and show machines.  This series of specialized kits retains full use of the OE parking brake, master cylinder output, and ABS where used.

Big Brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades on high performance street/track machines, daily drivers, and ultra-styled show machines.

Each kit is engineered specific for each vehicle.

These Big Brake kits require at least 18" diameter wheels.

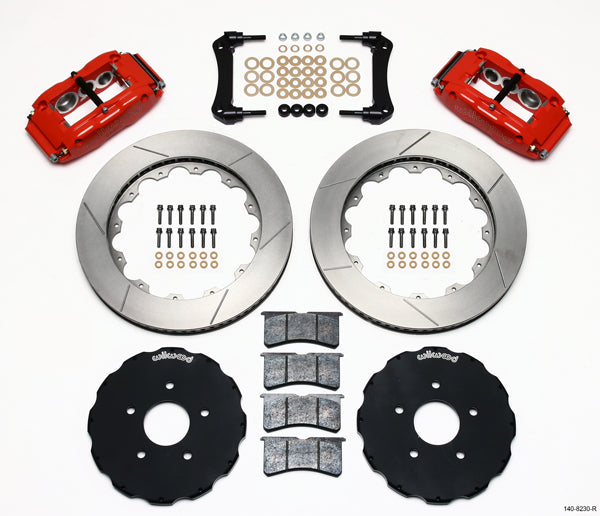

Front kit includes parts for both front wheels:

• 1.25" Thick x 14.00" O.D. Rotors
• Billet Superlite 6R Calipers - Red
• Caliper Mounting Brackets
• BP-10 Smart Compound Brake Pads
• Brake Hats, &
• All Hardware necessary to install the complete braking system on both front wheels

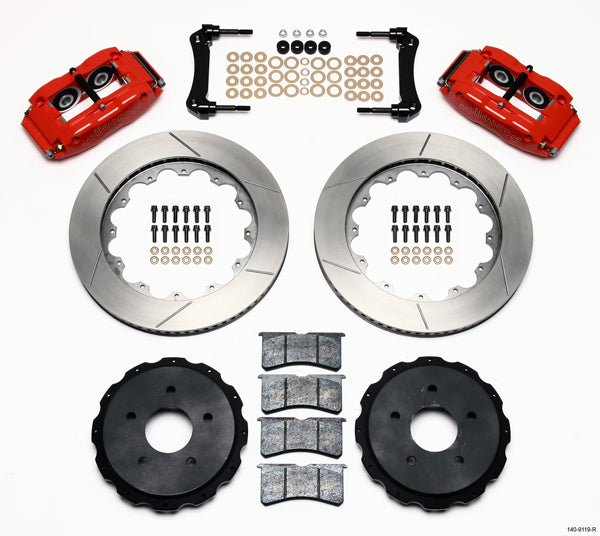

Rear kit includes parts for both rear wheels:

• 1.10" Thick x 14.00" O.D. Rotors
• Billet Superlite 4R Calipers - Red
• Caliper Mounting Brackets
• BP-10 Smart Compound Brake Pads
• Brake Hats, &
• All Hardware necessary to install the complete braking system on both rear wheels

Complete kit weighs approximately 124 lbs.

You can view and download the complete assembly instruction booklet for the Front Kit and the Rear Kit.
