37-48 FORD KIT,FRONT,FDL,12",POLISHED

BRAND NEW WILWOOD PREMIUM BIG BRAKE FORGED DYNALITE BOLT-ON FRONT HUB & 12.19" DISC BRAKE KIT (PART #140-8583-P) FOR BOTH FRONT WHEELS.

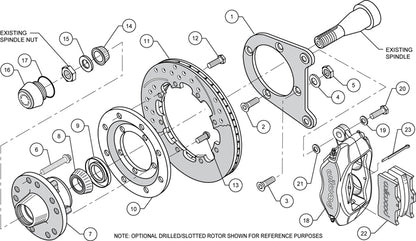

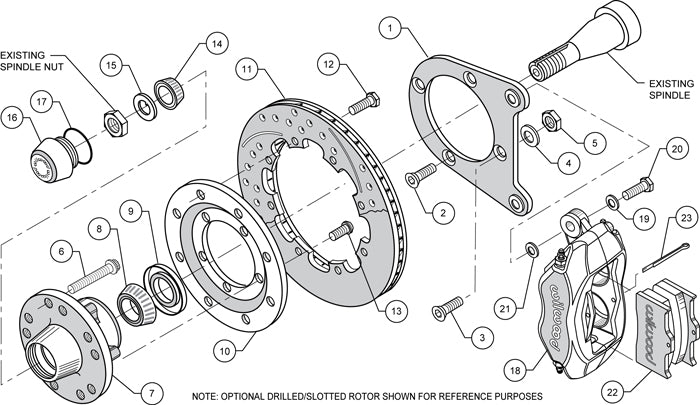

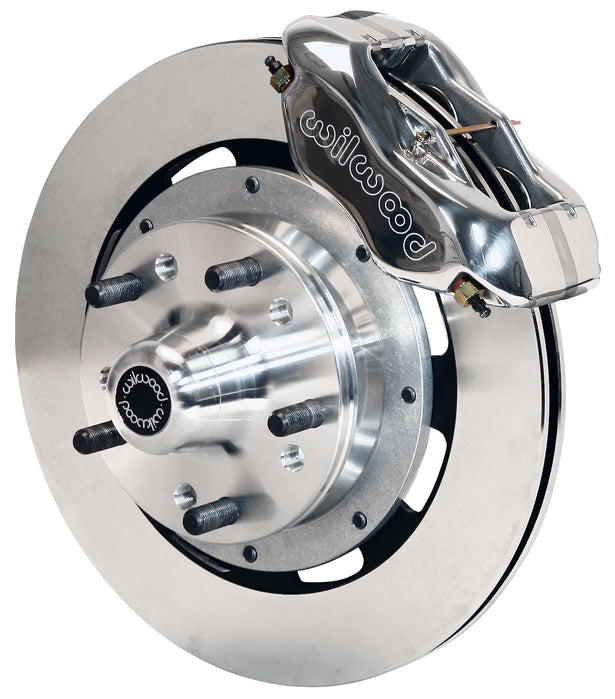

ONLY ONE SIDE PICTURED. SEE THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF THE PARTS INCLUDED.

FEATURES POLISHED CALIPERS.

FITS:

• FORD:
  • 1937-1948: PASSENGER
  • 1937: 73 ALL 1/2 TON, TRUCK / SEDAN DELIVERY
  • 1937: 74 ALL TUDOR / FORDOR / SW
  • 1937: 77 ALL 1/2 TON, TRUCK / SEDAN DELIVERY
  • 1937: 78 ALL TUDOR / FORDOR / SW
  • 1938: 81A ALL TUDOR / FORDOR / SW
  • 1938: 81C ALL 1/2 TON, TRUCK / SEDAN DELIVERY
  • 1938: 82A ALL TUDOR / FORDOR / SW
  • 1938: 82C ALL 1/2 TON, TRUCK / SEDAN DELIVERY
  • 1939: 91A ALL TUDOR / FORDOR / SW, STANDARD & DELUXE
  • 1939: 91C ALL 1/2 TON, TRUCK / SEDAN DELIVERY
  • 1939: 922A ALL TUDOR & FORDOR
  • 1939: 922C ALL 1/2 TON, TRUCK / SEDAN DELIVERY
  • 1940: STANDARD ALL 2 DOOR / 4 DOOR / SW
  • 1940: 01C ALL 1/2 TON, TRUCK / SEDAN DELIVERY
  • 1940: 01C ALL 3/4 TON TRUCK
  • 1940: 02D ALL 3/4 TON TRUCK
  • 1940: 022A ALL 2 DOOR / 4 DOOR
  • 1940: 022C ALL 1/2 TON, TRUCK / SEDAN DELIVERY
  • 1941-1946: SPECIAL ALL TUDOR & FORDOR
  • 1941-1947: 1GC ALL 1/2 TON, TRUCK / SEDAN DELIVERY
  • 1941-1947: 1GD ALL 3/4 TON TRUCK
  • 1941-1947: 1NC ALL 1/2 TON, TRUCK / SEDAN DELIVERY
  • 1941-1947: 1ND ALL 3/4 TON TRUCK
  • 1946-1948: 70 ALL
  • 1946-1948: 71 ALL
  • 1946-1948: 72 ALL
  • 1946-1948: 76 ALL
  • 1946-1948: 79 ALL

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

FDL BIG BRAKE FRONT HUB KITS PROVIDE THE ADDED ADVANTAGE OF LARGER DIAMETER BRAKE ROTORS FOR TRADITIONAL NON-ABS SPINDLES ON AMERICAN MUSCLE CARS AND VINTAGE RODS. FORGED BILLET DYNALITE CALIPERS, 12.19" DIAMETER ROTORS, AND HIGH PERFORMANCE WILWOOD BRAKE PADS GENERATE BIG BRAKE STOPPING POWER TO COMPLIMENT WHEEL, TIRE, AND SUSPENSION UPGRADES ON ALL TYPES OF CUSTOM SHOW AND PERFORMANCE STREET/STRIP MACHINES.

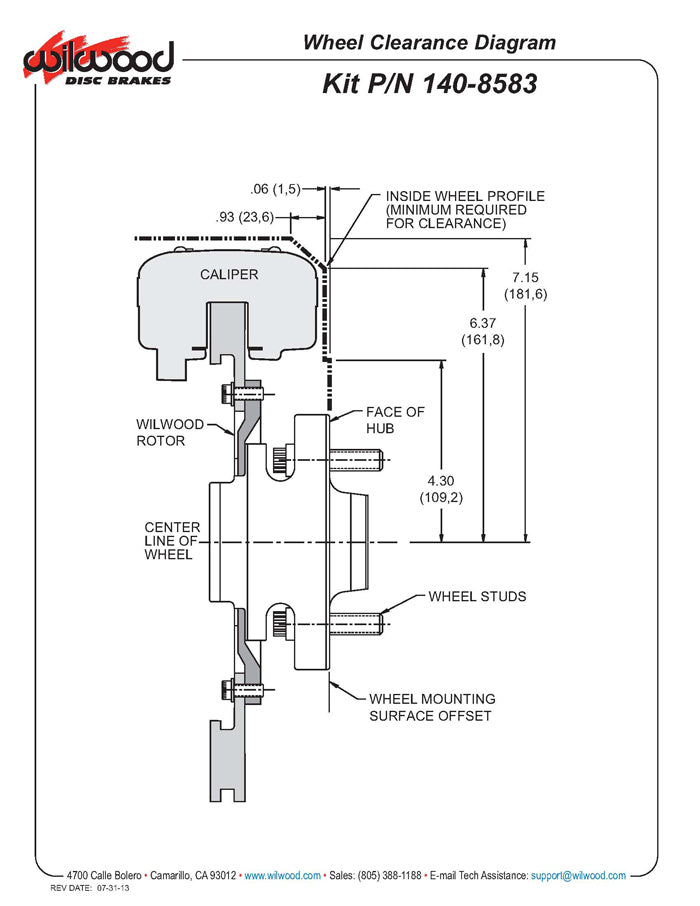

THESE BIG BRAKE KITS REQUIRE AT LEAST 16" DIAMETER WHEELS.

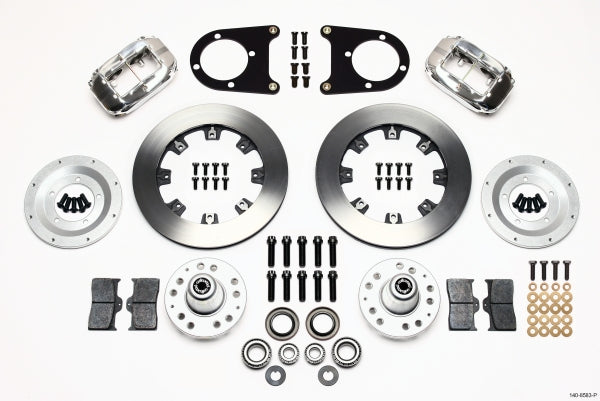

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• .810" THICK X 12.19" O.D. ROTORS
• FORGED DYNALITE CALIPERS - POLISHED
• CALIPER MOUNTING BRACKETS
• BP-10 SMART COMPOUND BRAKE PADS
• HUBS
• BEARINGS
• SEALS
• ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 44 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
