88-96 CORVETTE DISC BRAKE KIT,FRONT & REAR,LINES,13" DRILLED,BLACK CALIPERS

Brand New Wilwood Complete Premium Big Brake 13" Front and Rear Disc Brake Kit with Parking Brake Calipers.

Complete Kit Includes:

• Superlite 6 Piston Bolt-On Front Hat & 13" Disc Brake Kit (Part #140-8337-D) for Both Front Wheels
• Superlite 4 Piston Bolt-On Rear Hat & 13" Disc Brake Kit with MC4 Parking Brake Calipers (Part #140-14883-D) for Both Rear Wheels

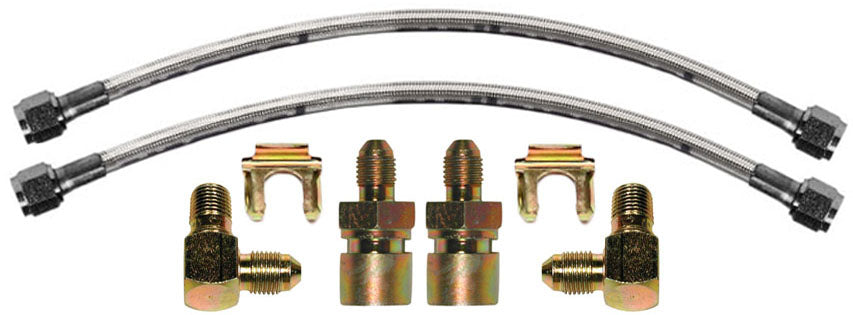

• Full Line Kit for the Front with 15" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings
• Full Line Kit for the Rear with 21" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings

Only one side pictured.  See the list, the diagram, & the assembly booklet below for a detail of the parts included.

Features Drilled & Slotted Rotors, as well as Powder-Coated Black Calipers.

Fits:

• 1988-1996 Corvette C-4

Wilwood brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications.

For the front, the unsurpassed braking capacity of the Forged Narrow Superlite 6R six-piston caliper serves as the base of this 13" kit. FNSL6R kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades on show cars and high performance street/track machines.

For the rear, FNSL4R rear big brake kits provide high capacity braking with contemporary styling for high performance street and show Corvettes , and all other custom built vehicles equipped with 1988-1996 C4 Corvette rear suspension. The original equipment single piston combination caliper is replaced with a high efficiency, forged aluminum narrow Superlite four-piston caliper for normal braking, and an auxiliary MC4 mechanical caliper for the parking brake. Rotor size is increased from 12.00" to 12.88", adding brake leverage and cooling capacity while complimenting the look inside custom wheel and tire upgrades.

These Big Brake kits require at least 17" diameter wheels.

Front kit includes parts for both front wheels:

• Drilled & Slotted, 1.10" Thick x 12.88" O.D. Rotors
• Superlite 6 Piston Calipers - Black
• Caliper Mounting Brackets
• Smart Compound Brake Pads
• Brake Hats
• All bolts, washers, and nuts necessary to install the complete braking system on both front wheels

Front kit includes parts for both rear wheels:

• Drilled & Slotted, 0.81" Thick x 12.88" O.D. Rotors
• Superlite 4 Piston Calipers - Black
• MC4 Parking Brake Calipers - Black
• Caliper Mounting Brackets
• Smart Compound Brake Pads
• Brake Hats
• All bolts, washers, and nuts necessary to install the complete braking system on both rear wheels

Complete kit weighs approximately 103 lbs.

You can view and download the complete assembly instruction booklet for this kit here and here.
