99-05 VOLKSWAGEN,FRONT,DP,12.19",DRILLED,RED

99-05 VOLKSWAGEN,FRONT,DP,12.19",DRILLED,RED

WIL 140-8276-DR

$1,239.99
$1,239.99
View full details
  • WILWOOD DYNAPRO BIG BRAKE FRONT HAT & 12.19" DISC BRAKE KIT FOR:
    -2000-2006 AUDI TT, 1.8L
    -1999-2005 VOLKSWAGEN BEETLE, 1.8L TURBO
    -1999-2005 VOLKSWAGEN GOLF IV, VR6 (1999.5 CHASSIS FROM SEPT. 1998)
    -2000-2005 VOLKSWAGEN GOLF IV, 1.8L TURBO
    -1999-2005 VOLKSWAGEN JETTA IV, 1.8L TURBO (1999.5 CHASSIS FROM SEPT. 1998)
    -1999-2005 VOLKSWAGEN JETTA IV, VR6 (1999.5 CHASSIS FROM SEPT. 1998)

  • FEATURING DRILLED & SLOTTED ROTORS, AS WELL AS RED CALIPERS

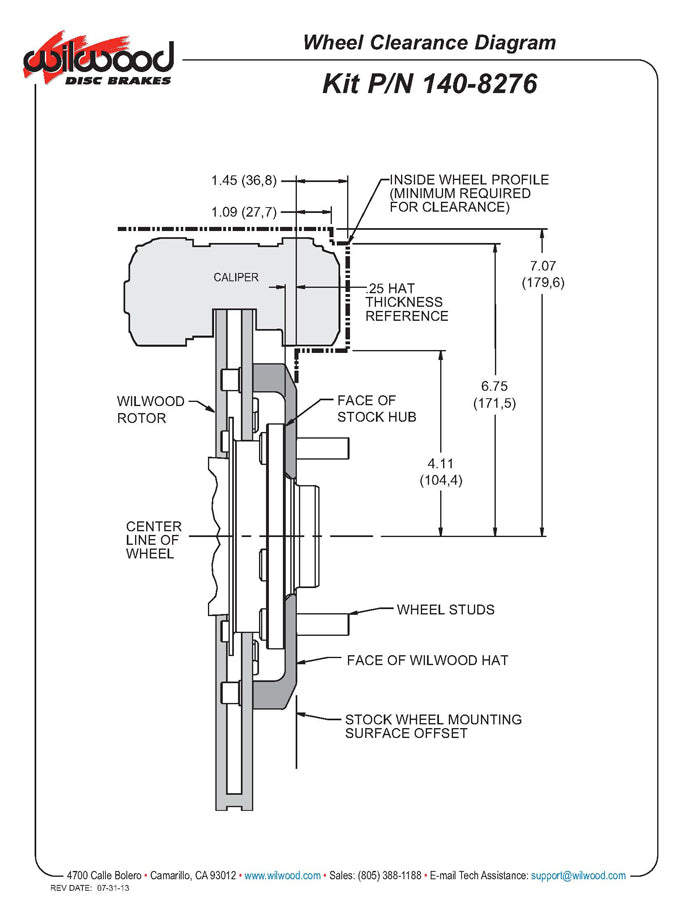

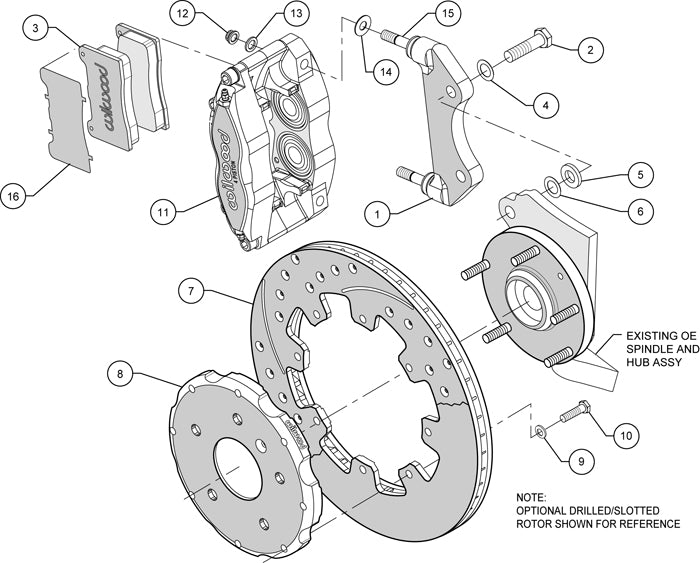

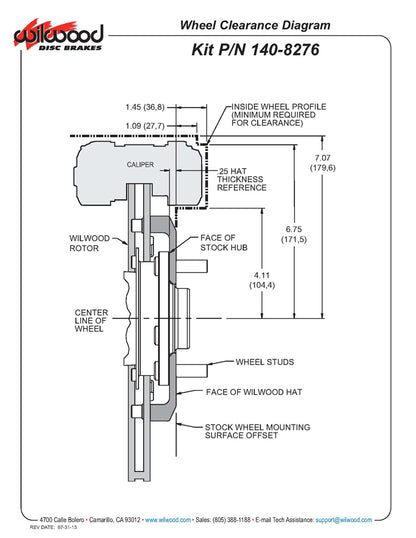

  • ONLY ONE SIDE PICTURED. SEE THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF THE PARTS INCLUDED

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS
  • RADIAL MOUNTING PROVIDES SECURE AND ACCURATE INSTALLATION OF THE FORGED BILLET DYNAPRO 4 PISTON CALIPER ON THE OVERSIZED 12.19" O.D. ROTORS FOR THIS GROUP OF FRONT AND ALL WHEEL DRIVE SPORT COMPACTS
  • THESE KITS ARE THE PERFECT COMPLIMENT TO WHEEL, TIRE, & SUSPENSION UPGRADES ON ALL TYPES OF DAILY DRIVERS, RACE VEHICLES, AND ULTRA-STYLED SHOW MACHINES
  • EACH KIT IS ENGINEERED SPECIFIC FOR EACH VEHICLE
  • THEY ARE FULLY COMPATIBLE WITH OE MASTER CYLINDER OUTPUT, WHILE RETAINING THE FULL FACTORY ABS FUNCTIONS
  • MOST KITS ARE EASILY INSTALLED WITH THE COMMON HAND TOOLS USED TO PERFORM ROUTINE BRAKE SERVICE
  • THESE BIG BRAKE KITS REQUIRE AT LEAST 16" DIAMETER WHEELS

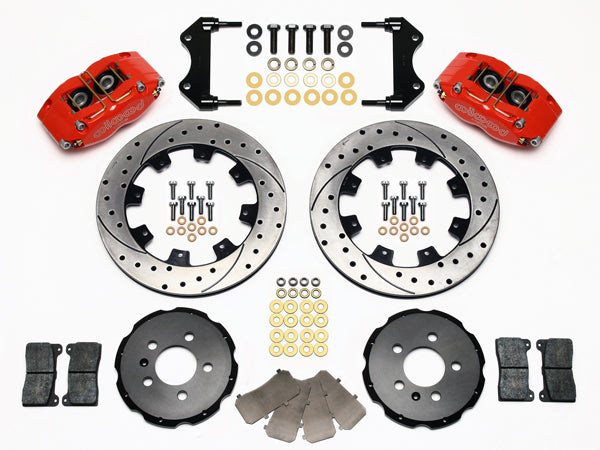

  • KIT INCLUDES:
    *DRILLED & SLOTTED, .810" THICK x 12.19" O.D. ROTORS,
    *DYNAPRO CALIPERS - RED,
    *CALIPER MOUNTING BRACKETS,
    *POLYMATRIX "Q" COMPOUND BRAKE PADS,
    *BRAKE HATS, &
    *ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS
  • COMPLETE KIT WEIGHS APPROXIMATELY 37 LBS.
  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE

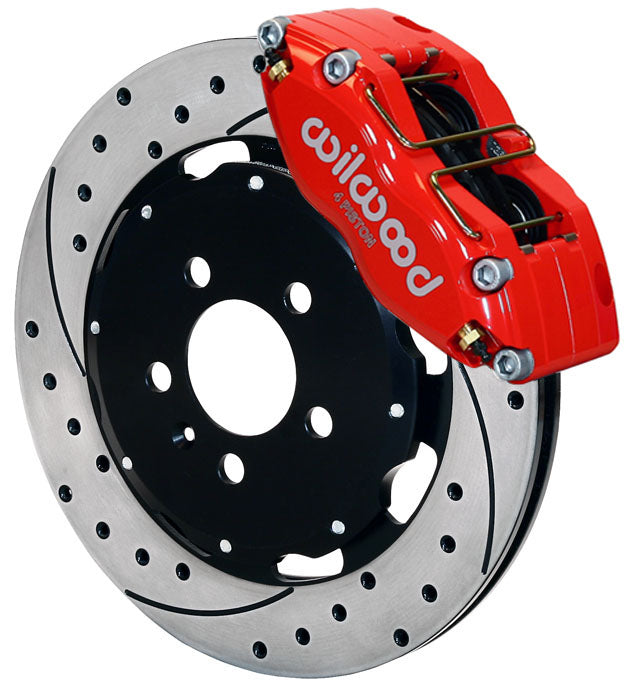

  • ONLY ONE SIDE SHOWN
    • Wilwood Audi/Volkswagen Front Disc Brake Kits
    Wilwood Drilled
