67-69 GM F-BODY FULL DISC BRAKE KIT & 2" DROP SPINDLES & ARMS,12" ROTORS,BLACK

67-69 GM F-BODY FULL DISC BRAKE KIT & 2" DROP SPINDLES & ARMS,12" ROTORS,BLACK

SKU:WIL 140-7675X7-6769-B

Regular price $2,299.99
Regular price Sale price $2,299.99
View full details

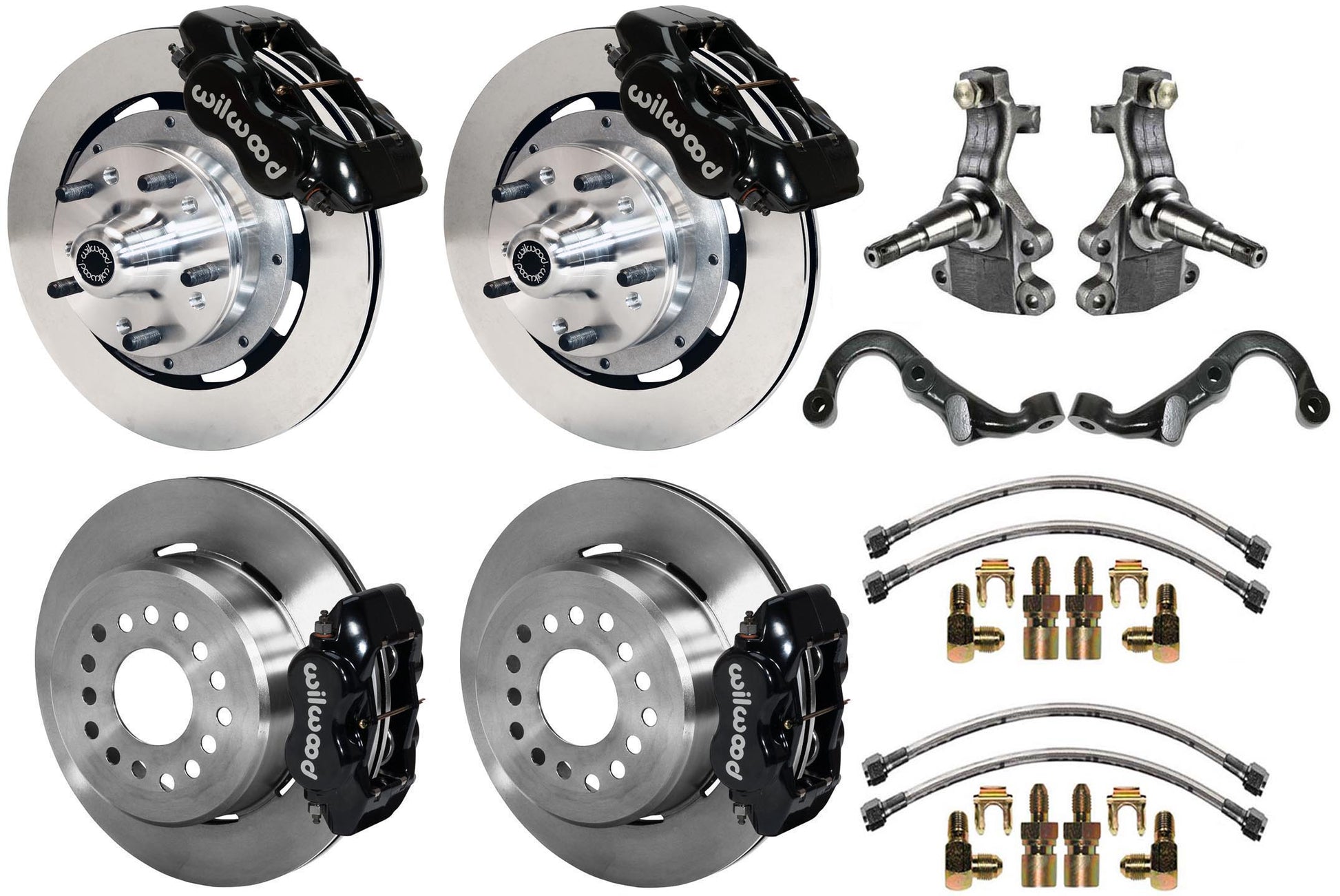

BRAND NEW WILWOOD FRONT & REAR DISC BRAKE KIT WITH 2" DROP SPINDLES, STEERING ARMS, AND STEEL BRAIDED LINE KITS.

FEATURES POWDER-COATED BLACK CALIPERS.

THIS COMBINED WILWOOD KIT BY SOUTHWEST SPEED INCLUDES:

  • FRONT 4 PISTON, 12.19" DISC BRAKE KIT (#140-7675)
  • FRONT 2" DROP SPINDLES (#103-9776)
  • FRONT STEERING ARMS (#101-9646)
  • REAR 4 PISTON, 12.19" DISC BRAKE KIT (#140-7141)
  • FULL FRONT LINE KIT WITH 18" STEEL BRAIDED LINES, CALIPER FITTINGS, AND BRAKE LINE FITINGS
  • FULL REAR LINE KIT WITH 18" STEEL BRAIDED LINES, CALIPER FITTINGS, AND BRAKE LINE FITINGS

SEE THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF THE PARTS INCLUDED WITH THIS BRAKE KIT.

FITS:

  • 1967-1969 CHEVY CAMARO
  • 1968-1974 CHEVY II / NOVA
  • 1973-1974 BUICK APOLLO
  • 1973-1974 OLDSMOBILE OMEGA
  • 1967-1969 PONTIAC FIREBIRD
  • 1971-1974 PONTIAC VENTURA

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

FOR THE FRONT, WILWOOD PRO SERIES BIG BRAKE KITS PROVIDE THE ADDED ADVANTAGE OF PREMIUM 12.19" DIAMETER BRAKE ROTORS, FORGED DYNALITE CALIPERS, AND HIGH PERFORMANCE WILWOOD BRAKE PADS TO GENERATE BIG BRAKE STOPPING POWER TO COMPLIMENT WHEEL, TIRE, AND SUSPENSION UPGRADES ON ALL TYPES OF CUSTOM SHOW AND PERFORMANCE STREET/STRIP MACHINES.

SOUTHWEST SPEED 2" DROP SPINDLES PROVIDE A FULL 2" DROP, WHILE NOT CHANGING THE STEERING GEOMETRY. THEY ARE 4140 STEEL, AND WILL ACCEPT STOCK BALL JOINTS

FOR THE REAR, FDL PRO SERIES DISC KITS PROVIDE A COMPLETE SOLUTION FOR POPULAR MUSCLE CAR REAR AXLES THAT REQUIRE A PARKING BRAKE. FORGED BILLET DYNALITE 4-PISTON CALIPERS, 12.19" O.D. ONE-PIECE ROTORS, AND HIGH FRICTION PADS PROVIDE OPTIMIZED AND BALANCED BRAKING FOR ALL TYPES OF MACHINES. THE NEATLY HIDDEN INTERNAL SHOW SYSTEM PROVIDES A CLEAN INSTALLATION WITH SUPERIOR STATIC HOLDING POWER FOR PARKING

THESE KITS REQUIRE AT LEAST 16" DIAMETER WHEELS.

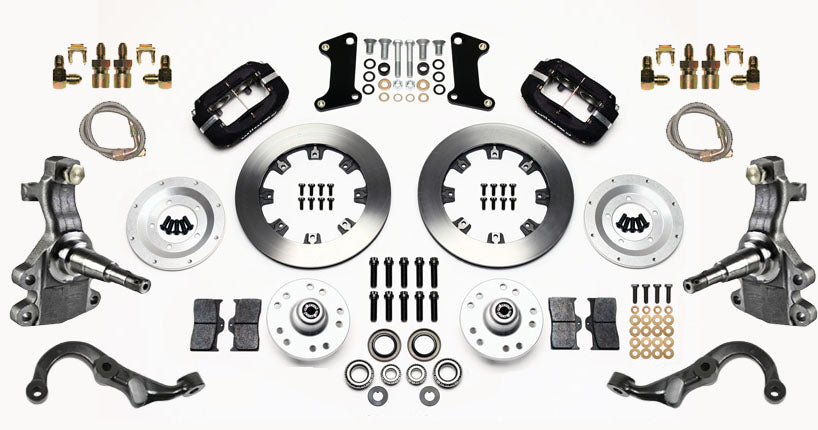

FRONT KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

  • 2" DROP SPINDLES
  • STEERING ARMS
  • 0.81" THICK X 12.19" O.D. ROTORS
  • FORGED DYNALITE 4 PISTON CALIPERS - BLACK
  • CALIPER MOUNTING BRACKETS
  • BP-10 SMART COMPOUND BRAKE PADS
  • STEEL BRAIDED LINE KIT WITH FITTINGS TO CONNECT TO THE WILWOOD CALIPERS AND TO THE STOCK HARD LINES
  • BRAKE HUBS
  • ALL BEARINGS, RACES, SEALS, BOLTS, WASHERS, AND SHIMS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

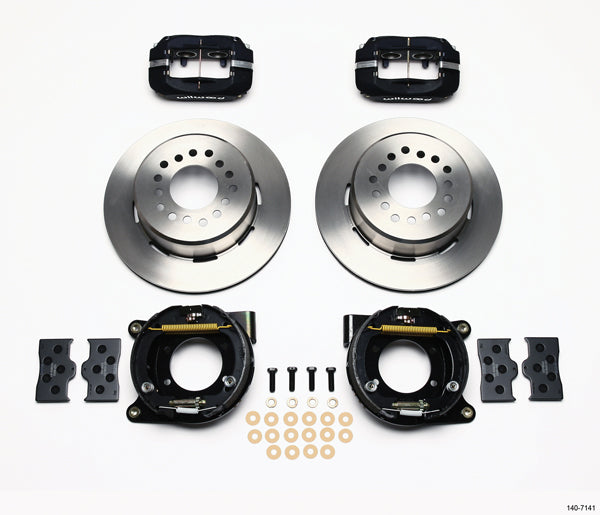

REAR KIT INCLUDES PARTS FOR BOTH REAR WHEELS:

  • 0.81" THICK X 12.19" O.D. ROTORS
  • FORGED DYNALITE 4 PISTON CALIPERS - BLACK
  • DRUM PARKING BRAKE ASSEMBLIES WITH CALIPER MOUNTING BRACKETS
  • BP-10 SMART COMPOUND BRAKE PADS
  • STEEL BRAIDED LINE KIT WITH FITTINGS TO CONNECT TO THE WILWOOD CALIPERS AND TO THE STOCK HARD LINES
  • ALL BOLTS, WASHERS, AND SHIMS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH REAR WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 115 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THE FRONT KIT AND THE REAR KIT.
