GM C-KIT SPECIAL,2.81",REAR PB,12",RED

BRAND NEW WILWOOD REAR PARKING BRAKE, PRO SERIES FORGED DYNALITE, BOLT-ON 12.19" DISC BRAKE KIT (PART #140-7578-R) FOR BOTH REAR WHEELS.

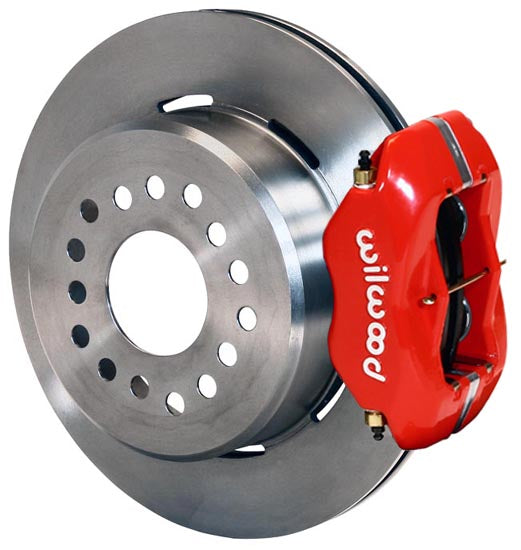

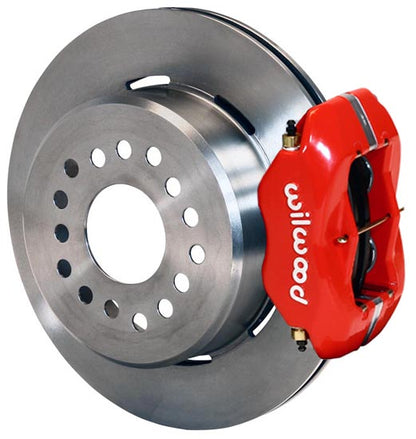

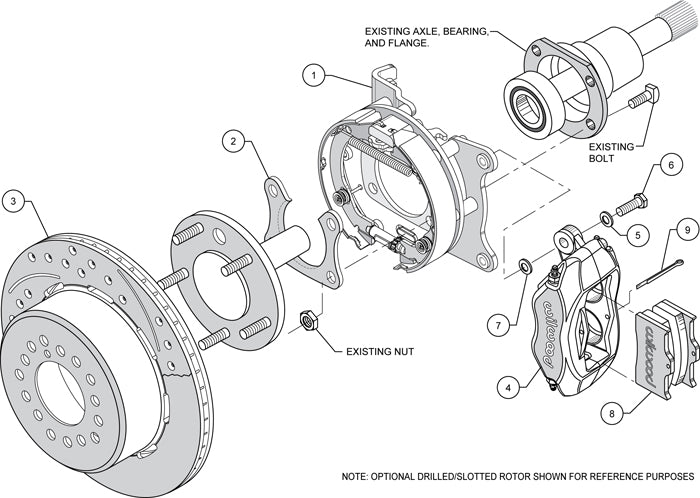

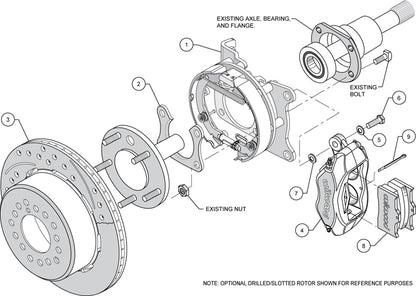

ONLY ONE SIDE PICTURED. SEE THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF THE PARTS INCLUDED.

FEATURES RED POWDER-COATED CALIPERS.

FITS:

• 10 BOLT & 12 BOLT GM REAR ENDS WITH A SPECIAL LARGE 3.15" BEARING AND WITH A 2.81" AXLE FLANGE OFFSET (SEE DIAGRAMS BELOW) WITH C-CLIPS

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

THESE FDL PRO SERIES REAR DISC KITS PROVIDE A COMPLETE SOLUTION FOR POPULAR MUSCLE CAR REAR AXLES THAT REQUIRE A PARKING BRAKE. FORGED BILLET DYNALITE 4-PISTON CALIPERS, 12.19" O.D. ONE-PIECE DRUM/ROTORS, AND HIGH FRICTION PADS PROVIDE OPTIMIZED AND BALANCED BRAKING FOR ALL TYPES OF CUSTOM PERFORMANCE STREET/STRIP AND SHOW MACHINES. THE NEATLY HIDDEN INTERNAL SHOE SYSTEM PROVIDES A CLEAN INSTALLATION WITH SUPERIOR STATIC HOLDING POWER FOR PARKING.

THESE BIG BRAKE KITS REQUIRE AT LEAST 16" DIAMETER WHEELS.

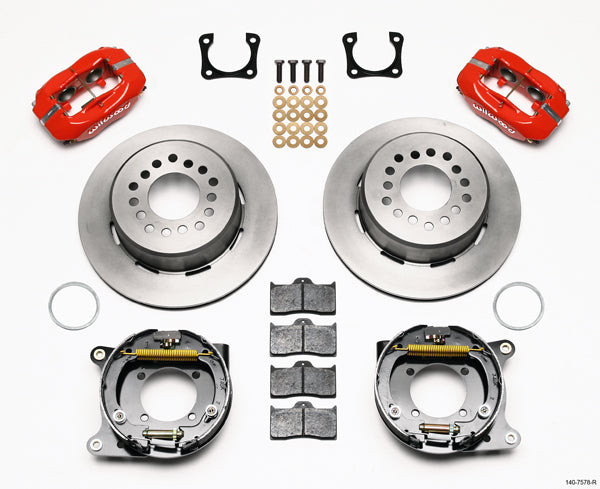

KIT INCLUDES PARTS FOR BOTH REAR WHEELS:

• .810" THICK X 12.19" O.D. ROTORS
• FORGED DYNALITE CALIPERS - RED
• CALIPER MOUNTING BRACKETS
• DRUM PARKING BRAKE ASSEMBLIES
• BP-10 SMART COMPOUND BRAKE PADS
• BRAKE HATS
• ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH REAR WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 50 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
