OLDS,PONTIAC,2.81",REAR PB,FDL,12.19" ROTORS,BLACK CALIPERS

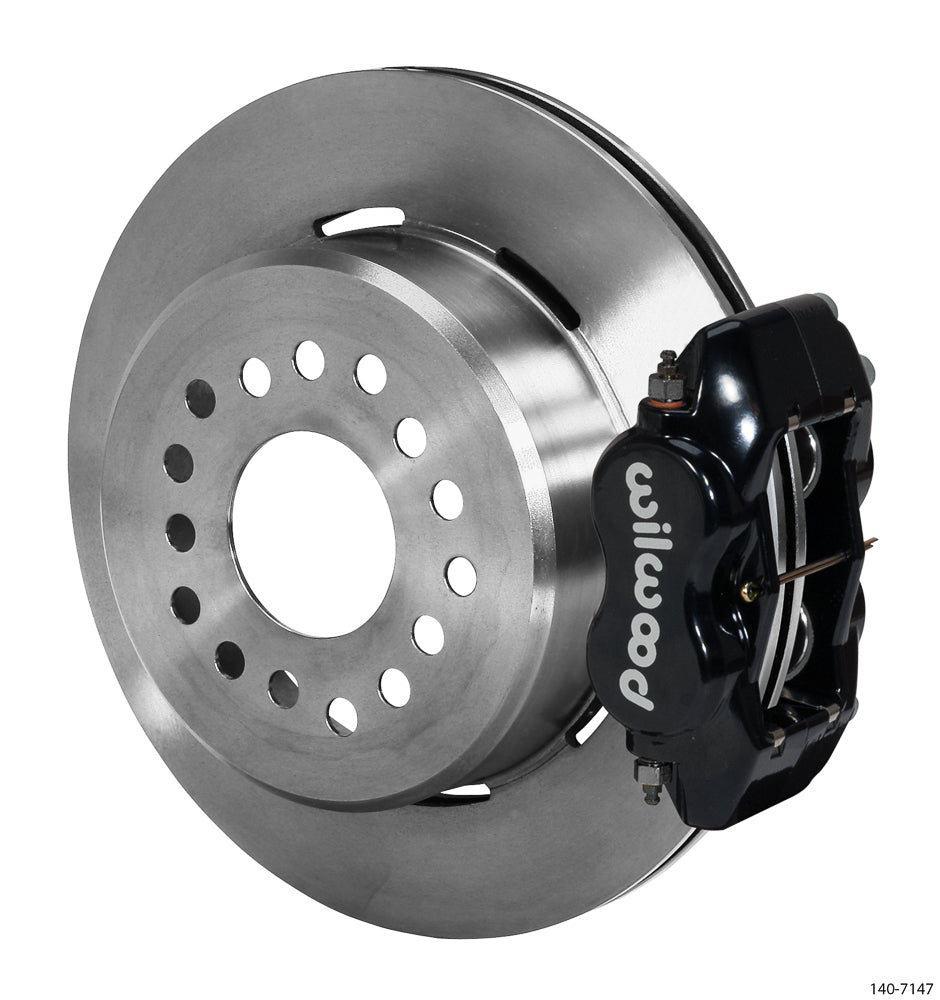

Brand New Wilwood Forged Dynalite Drag Brake Kit Featuring 12.19" Solid Rotors with Black Calipers For Both Rear Wheels (Part #140-7147).

This group of FDL Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19” one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

NOTE: This kit require at least 15" diameter wheels. Check wheel clearance diagram for proper fitment. Axle offset is 2.81".

Compatible with:

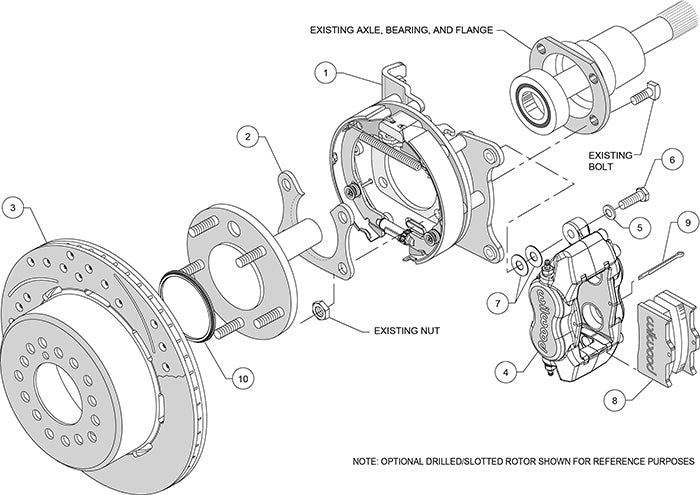

• Oldsmobile/Pontiac Rear End with 3.500"x2.375" Mounting Pattern &  2.81" Axle Offset (See Diagram Pictures)

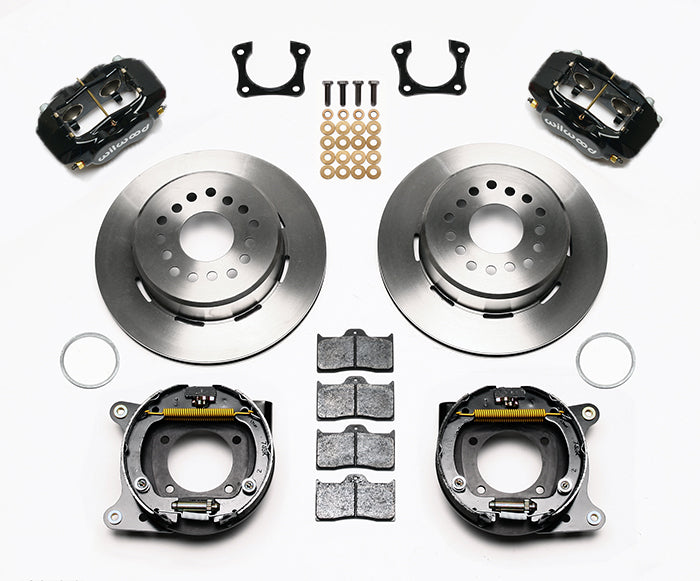

Kit includes:

• 4 Piston Forged Dynalite Calipers

• BP-10 Compound Brake Pads

• 0.81" Thick x 12.19" O.D. Rotors

• Parking Brake Kit
• All brackets, bolts, washers, and nuts necessary to install the kit.


Complete kit weighs approximately 51 lbs.

You can view and download the assembly/instruction booklet here.
