MOPAR/DANA 60 REAR PARKING BRAKE KIT,2.36",FDL,12.19" ROTORS,RED CALIPERS

MOPAR/DANA 60 REAR PARKING BRAKE KIT,2.36",FDL,12.19" ROTORS,RED CALIPERS

WIL 140-7144-R

$969.99
$969.99
View full details

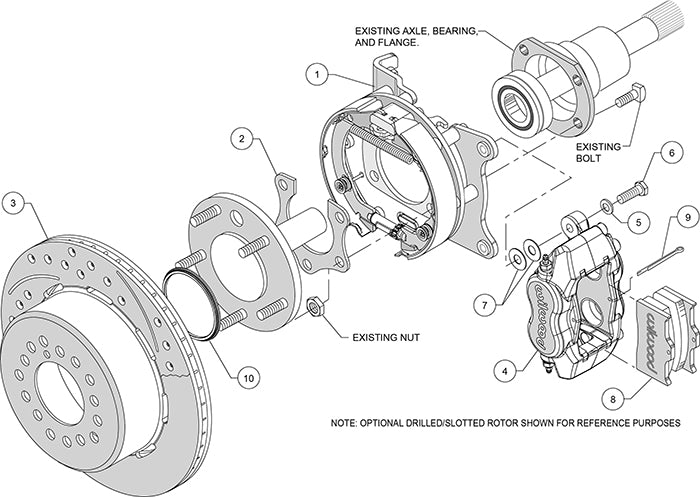

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • WILWOOD PRO SERIES BOLT-ON REAR PARKING BRAKE DISC BRAKE KIT FOR MOPAR 8 3/4" & DANA 60 REAR ENDS WITH A 5 BOLT MOUNTING PATTERN ON THE AXLE FLANGE & WITH A 2.36" FLANGE OFFSET (SEE DIAGRAMS BELOW)
  • THIS KIT IS FOR USE WITH NON-ADJUSTABLE GREEN BEARINGS (MO-400) WITH SNAP RING
  • FEATURING RED CALIPERS
  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS
  • THESE FDL PRO SERIES REAR DISC KITS PROVIDE A COMPLETE SOLUTION FOR POPULAR MUSCLE CAR REAR AXLES THAT REQUIRE A PARKING BRAKE
  • FORGED BILLET DYNALITE 4-PISTON CALIPERS, 12.19" O.D. ONE-PIECE DRUM/ROTORS, AND HIGH FRICTION PADS PROVIDE OPTIMIZED AND BALANCED BRAKING FOR ALL TYPES OF CUSTOM PERFORMANCE STREET/STRIP AND SHOWN MACHINES
  • THE NEATLY HIDDEN INTERNAL SHOE SYSTEM PROVIDES A CLEAN INSTALLATION WITH SUPERIOR STATIC HOLDING POWER FOR PARKING
  • MOST KITS ARE EASILY INSTALLED WITH THE COMMON HAND TOOLS USED TO PERFORM ROUTINE BRAKE SERVICE
  • THESE BIG BRAKE KITS REQUIRE AT LEAST 16" DIAMETER WHEELS

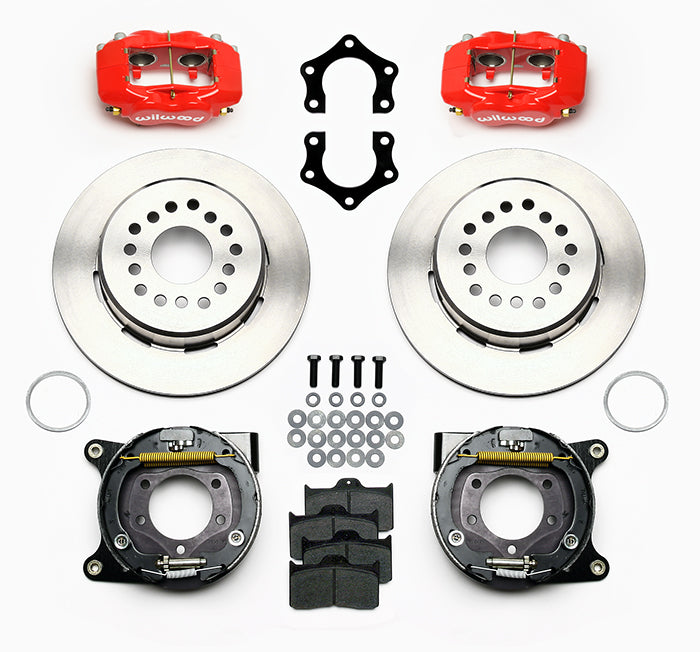

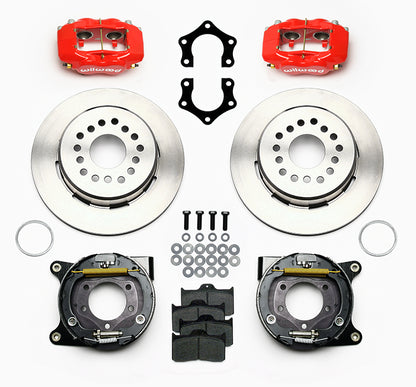

  • KIT INCLUDES:
    *.810" THICK x 12.19" O.D. ROTORS,
    *FORGED DYNALITE CALIPERS - RED,
    *CALIPER MOUNTING BRACKETS,
    *DRUM PARKING BRAKE ASSEMBLIES,
    *BP-10 BRAKE PADS,
    *BRAKE HATS, &
    *ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH REAR WHEELS
  • COMPLETE KIT WEIGHS APPROXIMATELY 50 LBS
  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE



    • Click Picture
    For Larger View




    Click Picture
    For Larger View

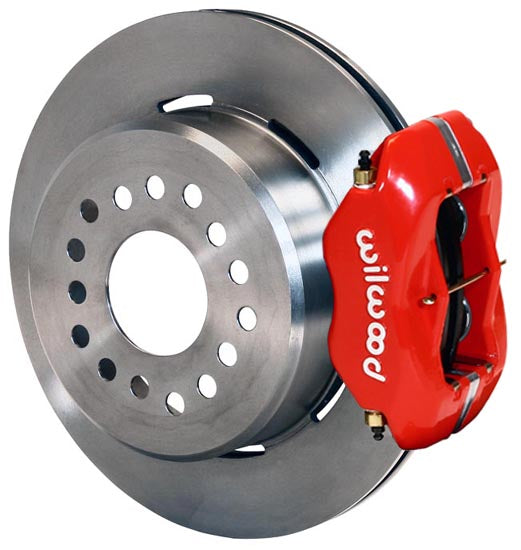

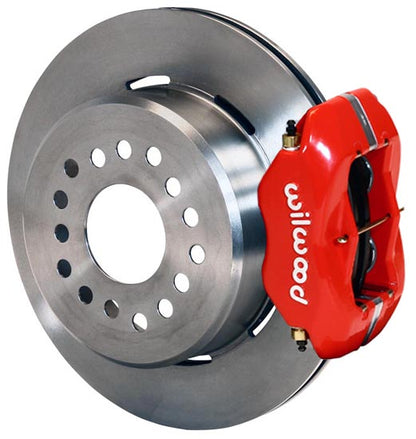

  • ONLY ONE SIDE SHOWN
